C2-260/inBio2-260 Access Control Panel
User Manual
Page | 22 Copyright©2020 ZKTECO CO., LTD. All rights reserved.

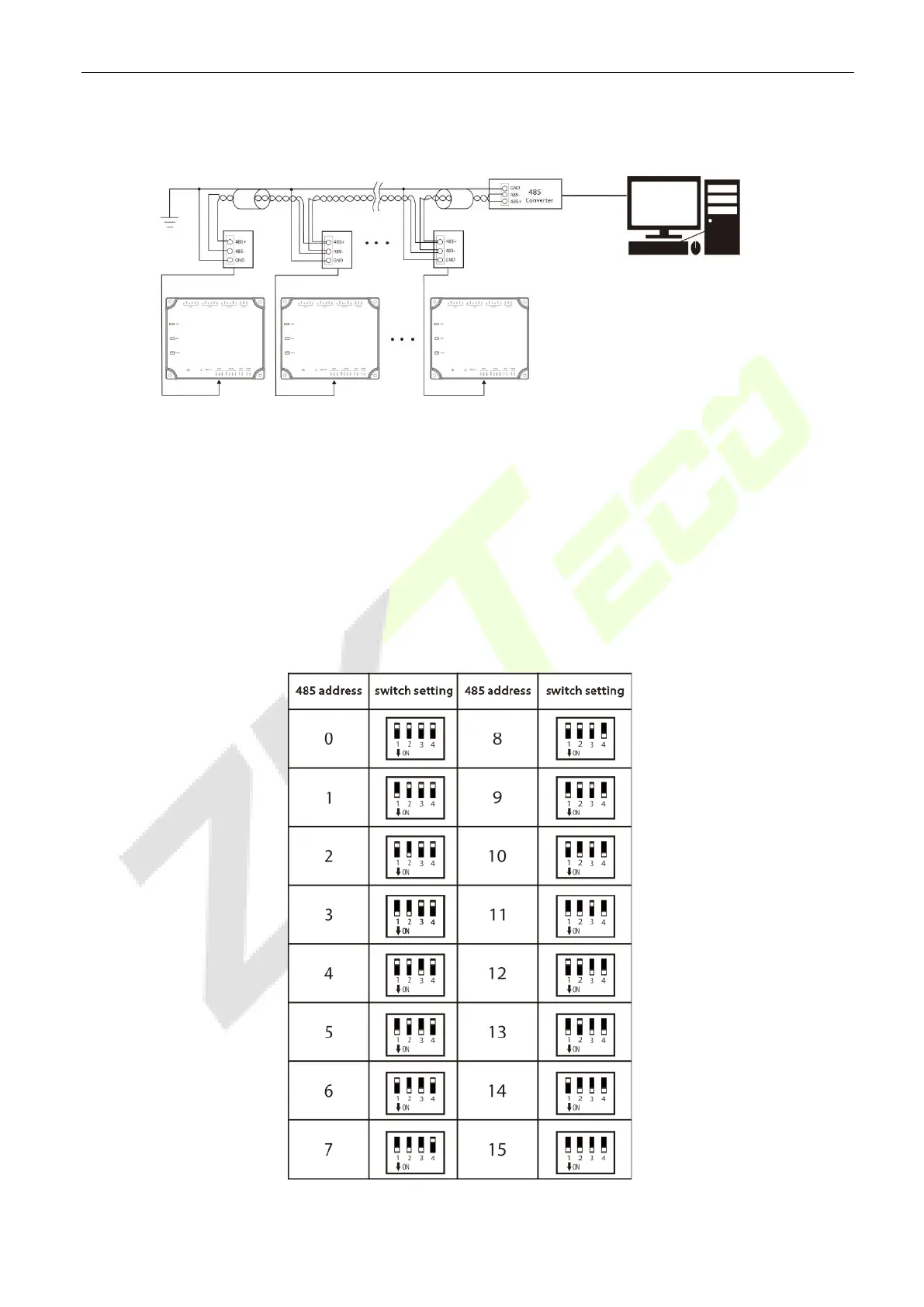

continuously and reliably and linked to ground wires through large-diameter cables. The
impedance of this section of wire cannot exceed 2 ohms. Also, the shielding layer must be
connected reliably and grounded at one end to guarantee a uniform current direction. The
ground wire of the shielding layer must be connected through a large-diameter wire (not less
than 2.5mm
2
).
TCP/IP Communication 4.2
The Ethernet 10/100Base-T Crossover Cable, a type of crossover network cable, is mainly used for
cascading hubs and switches or used to connect two Ethernet endpoints directly (without a hub). Both
10Base-T and 100Base-T are supported.
TCP/IP Communication System Networking
In Access software: Click Device > Search Device to search for access controllers in the network, and
directly add from the search result.
ZKPanelWeb 4.3
This built-in function is newly added to assist user to manage controllers more conveniently. Users can use
the Web Server function to perform operations, such as network configuration, push communication
configuration, time synchronization, and user account management.
Log on to the Web Server
Create a valid connection string using TCP/IP.
Input the IP address of the controller (factory default is 192.168.1.201) in the address bar; enter the user
name and password (both are admin), and click [Sign In] to access the ZKPanelWeb.
