ZKTeco C3-400 User Manual

Connection and Installation
- 9 -
3.2 Installation of Access Control Operator Panel
Wires
220V input
TCP/IP network communication wire
RS485 network
communication wire
C3 access control
operator panel
Ceiling
Door sensor
Electronic lock
Exit button
Outdoor Wiegand
card reader
Indoor Wiegand card reader
Outdoor
Indoor

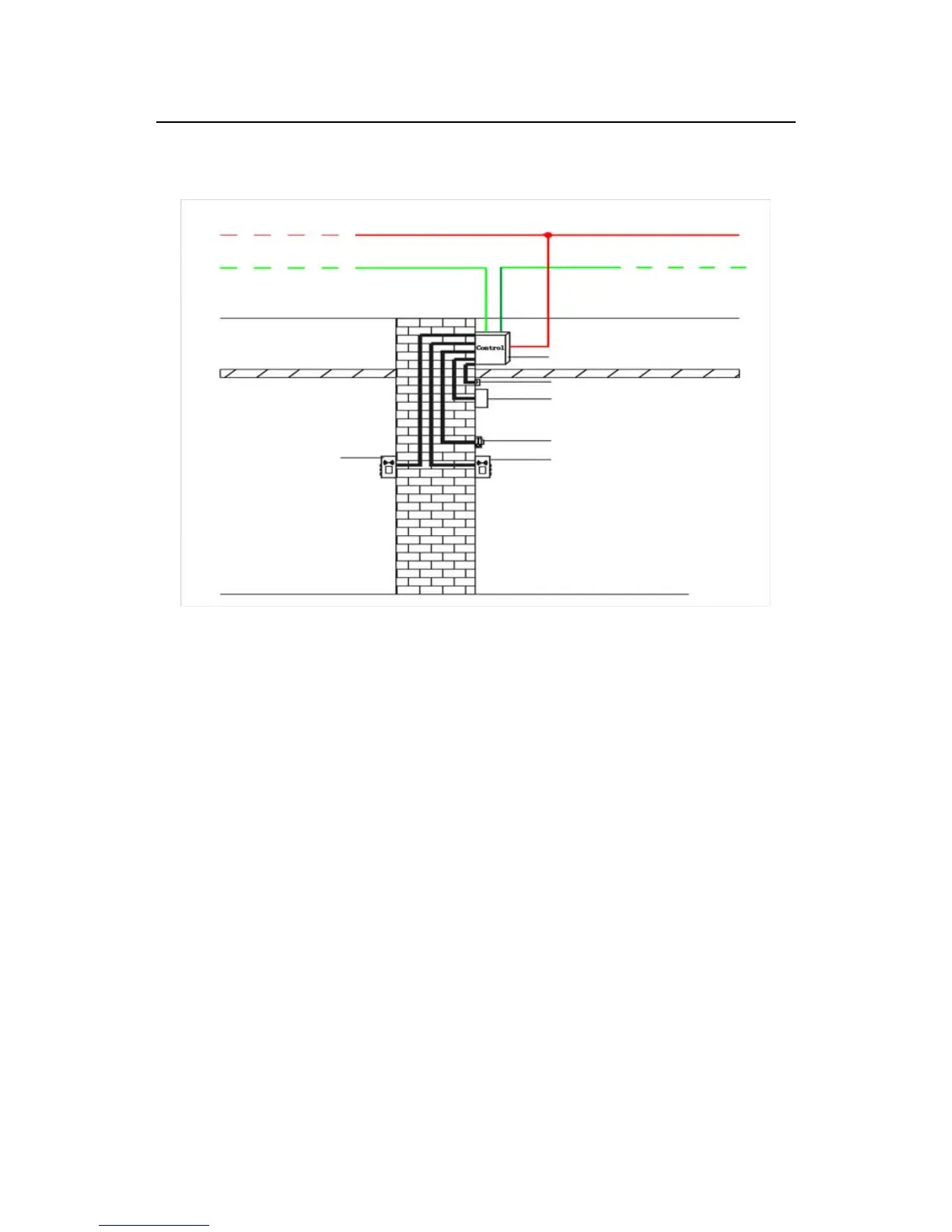

Figure 3-1 Access Control Operator Panel Wire Installation Diagram
Notes:
1. Before connection, make sure the power supply is disconnected, because
connection with power connected will cause severe damage to the equipment.
2. The access control wires must be separated according to heavy and light
current; the control panel wires, electronic lock wires, and exit button wires
must run through their respective casing pipes.

ZKTeco C3-400 Specifications

General

Interface	RJ-45 / RS-485
Case design	Bare
Built-in UPS	No
Number of users	30000 user(s)
Maximum number of doors	4 door(s)
Switchable current	1.5 A
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	90 mm
Width	330 mm
Height	300 mm
Weight	3550 g
