ZKTeco LH3000 User Manual

Installation
5
d
e
s
i
re
d h
a
n
dle
he
i
g
h
t
center line of
the handle
door
thickness
35~55 mm
backset
62.5 mm

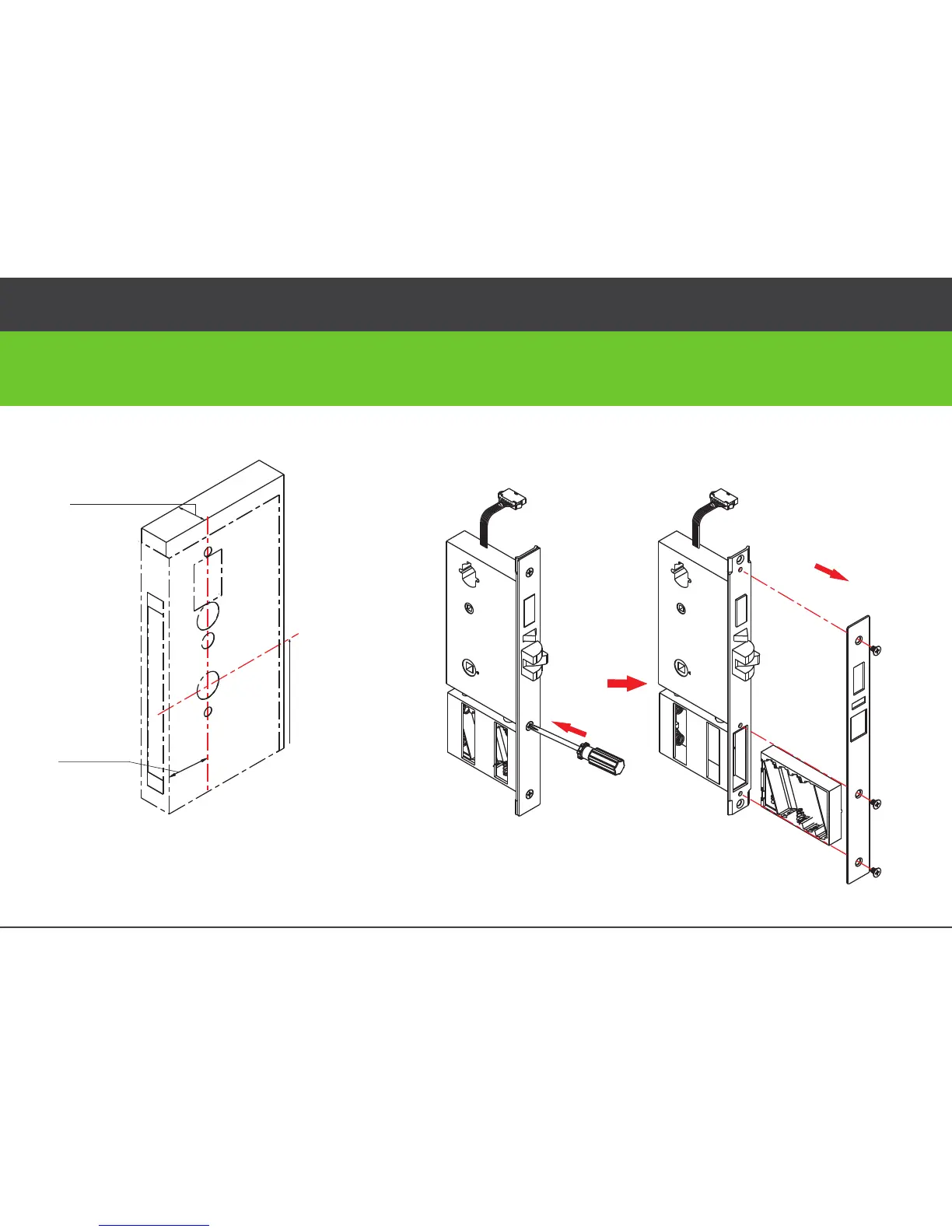

2. Remove the mortise latch plate (H)
1. Drill holes on the door
Note 1: Align the template along the vertical
center line of the mortise (F) at the desired
handle height, and tape it to door.
Note 2: Mark the holes first, then start drilling.
F
H
I
J

ZKTeco LH3000 Specifications

General

Brand	ZKTeco
Model	LH3000
Category	Locks
Language	English
