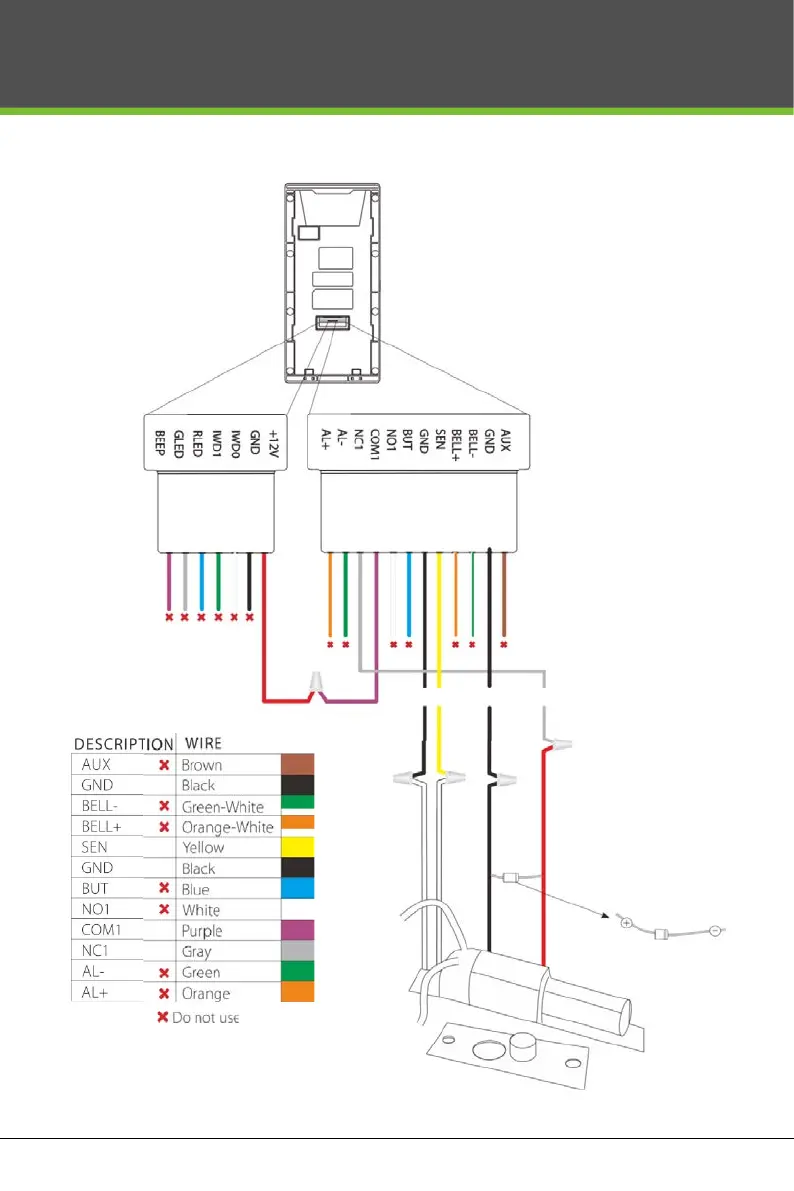

Lock Relay Connection
Device Sharing Power with the Lock
COM1
+12V
GND
Sensor
NC1
FR107
Diode
Normally Closed Lock
GND
