TS1000: Tripod Turnstile
TS1011: Tripod Turnstile with Controller and RFID Reader
TS1022: Tripod Turnstile with Controller and Fingerprint Reader with RFID function.
Please read this document carefully before installation and using the device.
1. Technical Specifications
Input Voltage
AC 100~120V /200~240V,
50Hz /60Hz
Max. Tolerance of Arms
Rated Power 60 W Ingress Protection Degree IP54
Operating Environment Indoor and Outdoor (shelter) Arm Length (mm) 520
Operating Temperature -28ºC ~ 60ºC Net Weight 34kg
Operating Humidity 5% ~ 85% Gross Weight 40kg
Flow Rate 25~30 passages / minute Dimension(mm) Figure 1 L = 520, W = 280, H = 985
Input Control Signal Dry contact Package Size (mm) L = 600, W = 380, H = 1080

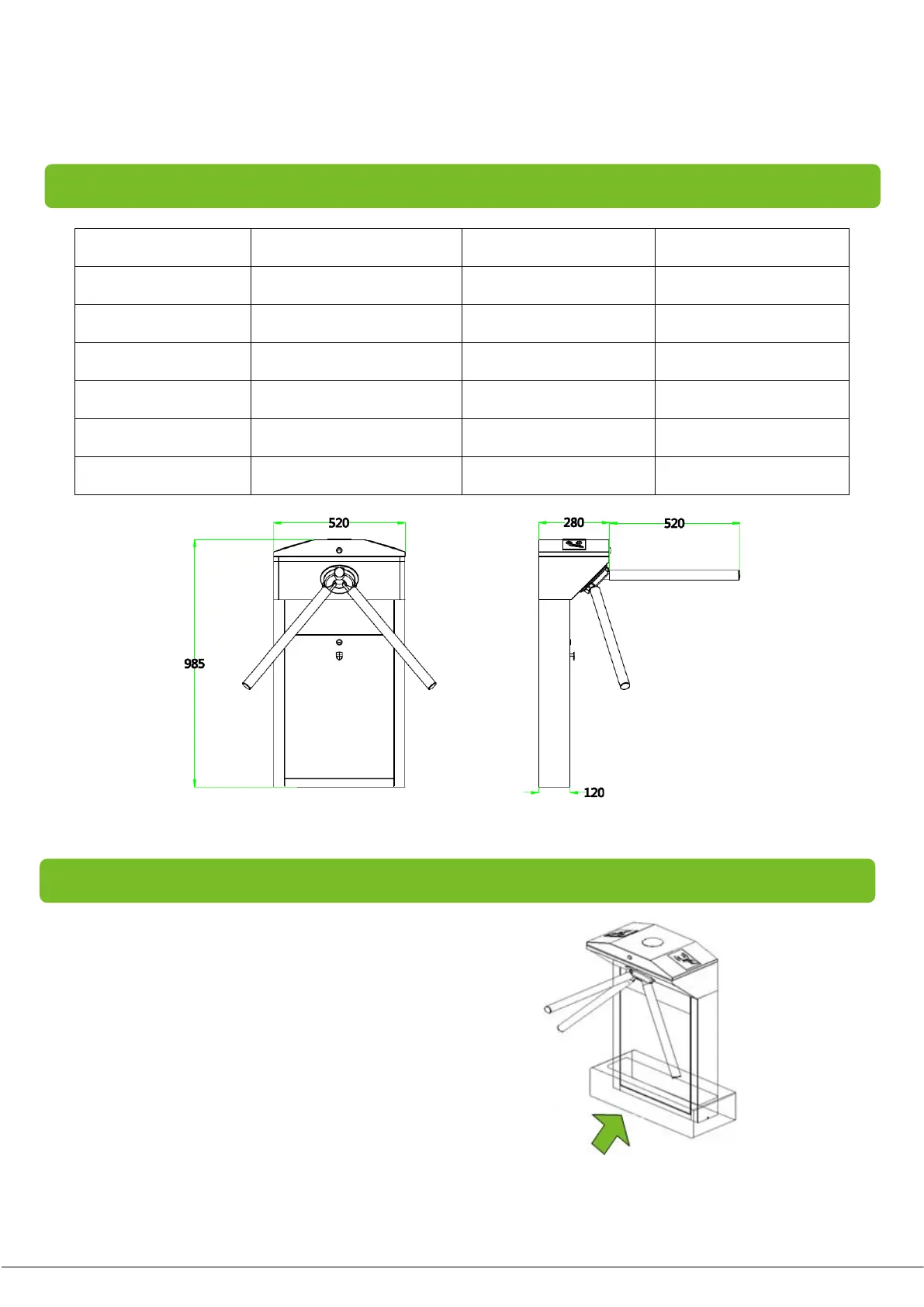

Figure 1
2. Unpacking and Testing the Tripod Turnstile
2.1 Unpacking
The vertical type tripod turnstile is top heavy and unsteady,
do not remove the foam at the bottom before installation,
as shown in Figure 2-1.
Figure 2-1
Do not remove the foam lining
at the bottom before
installation.
