ZKTeco UHF10F Pro Reader - Side View & Wiring

U H F10 P r o R e a d e r
Us er Ma nu a l
P a g e | 7
C o p y r i g h t © 2021 Z K TE C O C O ., L T D . All r ig h t s r es er v ed .

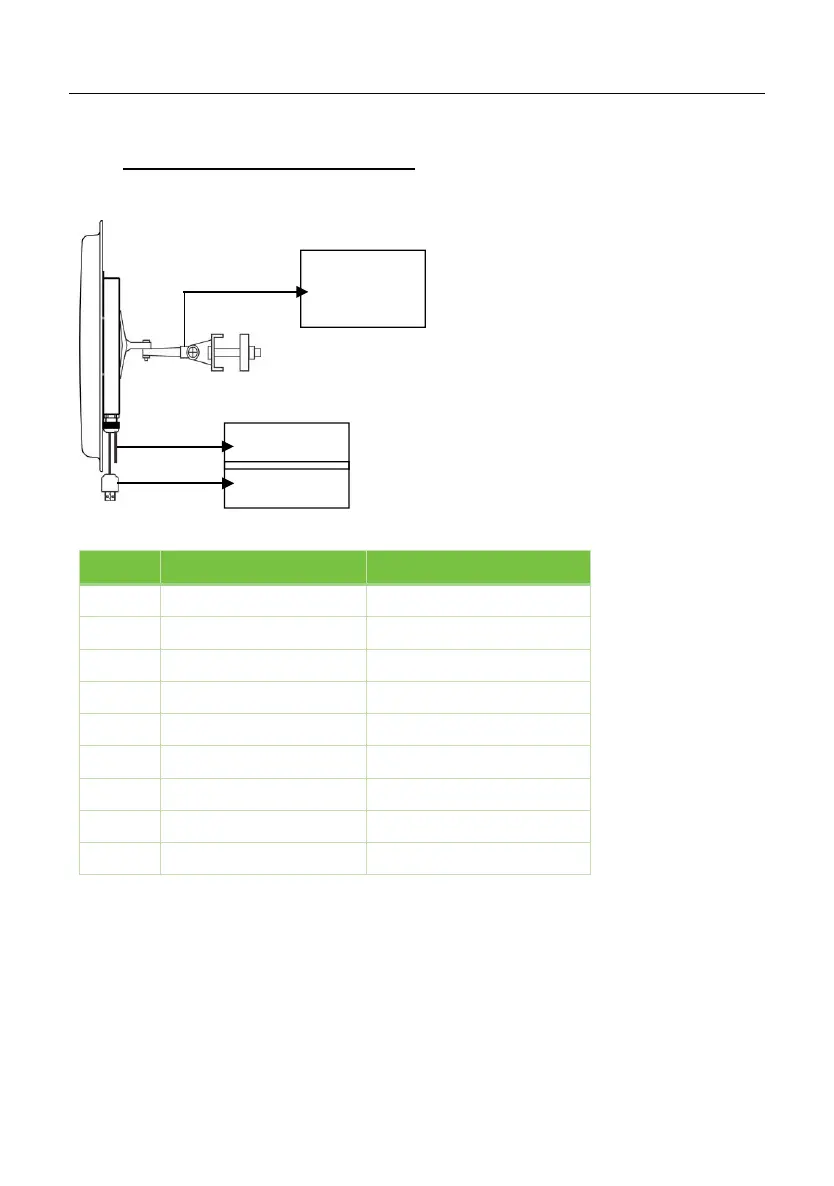

2 Side View &Wiring
M o u nt i ng
B r ack e t
C a bl es
U SB
No.
Colour
Connection
1
Red
DC +12V
2
Black
GND
3
Green
Wiegand D0
4
White
Wiegand D1
5
Purple
Trigger Point
6
Gray
GND
7
USB
Connect to PC
8
Brown
RS485+
9
Orange
RS485-
