Shanghai ZLAN Information Technology Co., Ltd Tel: +86-17321037177 http://www.zlmcu.com
63

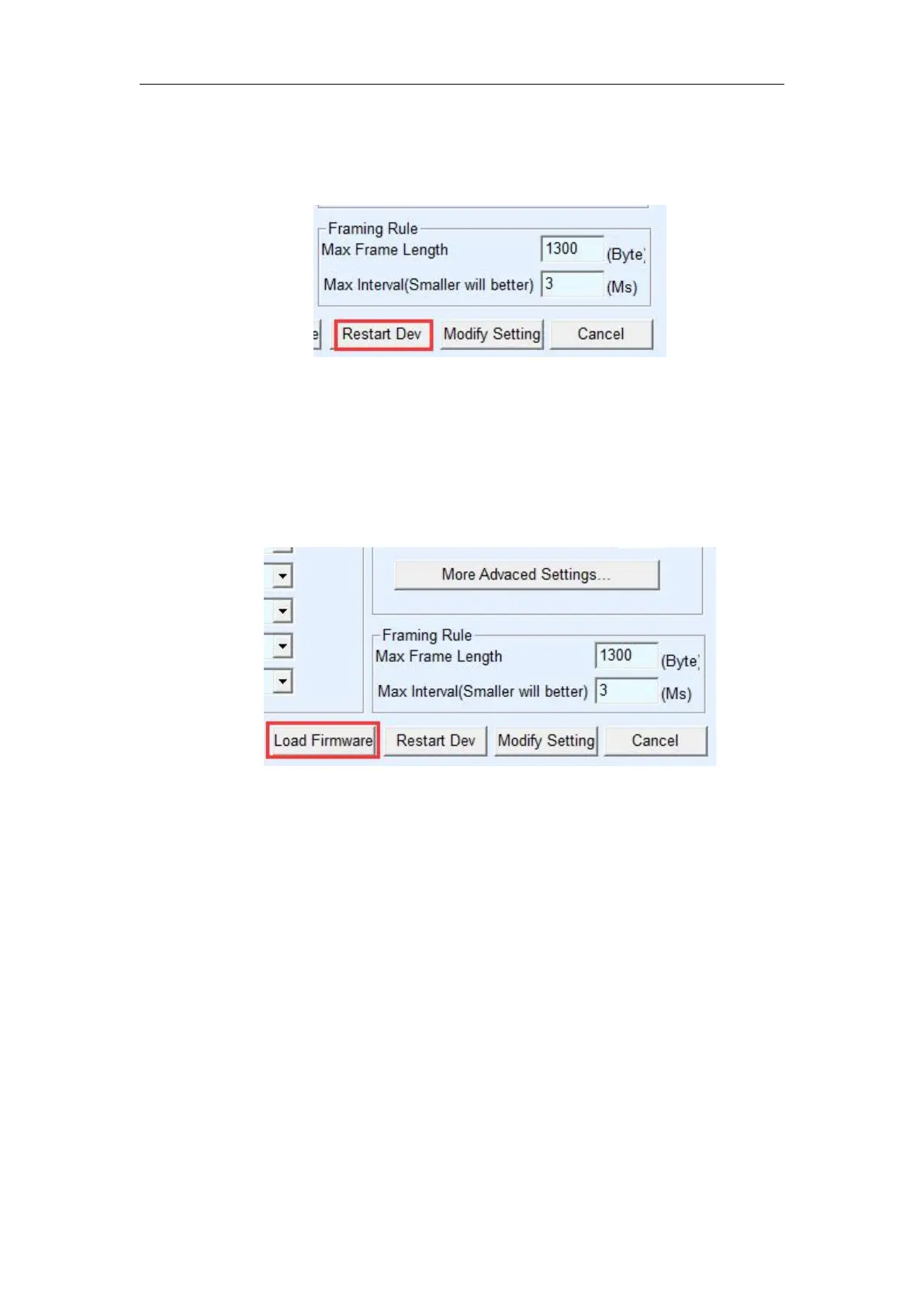

and then go to the device parameter edit dialog box. First click "restart
device" once.
Figure 50 upgrade button
After the device is restarted, use the same method to search the device again
and enter the dialog again. Click the "upgrade firmware" button in the lower
right corner of the dialog box.
Figure 51 upgrade button
3) As shown in Figure 53, select the “program file download” radio option. In the
program file, select the firmware file. The IP address part of the serial port
server has been filled in automatically, no need to write again, and the module
type/model has been selected automatically. Then click download.
