Zline RAIND-24 Series - Operation; Initial Range Setup and Use

9

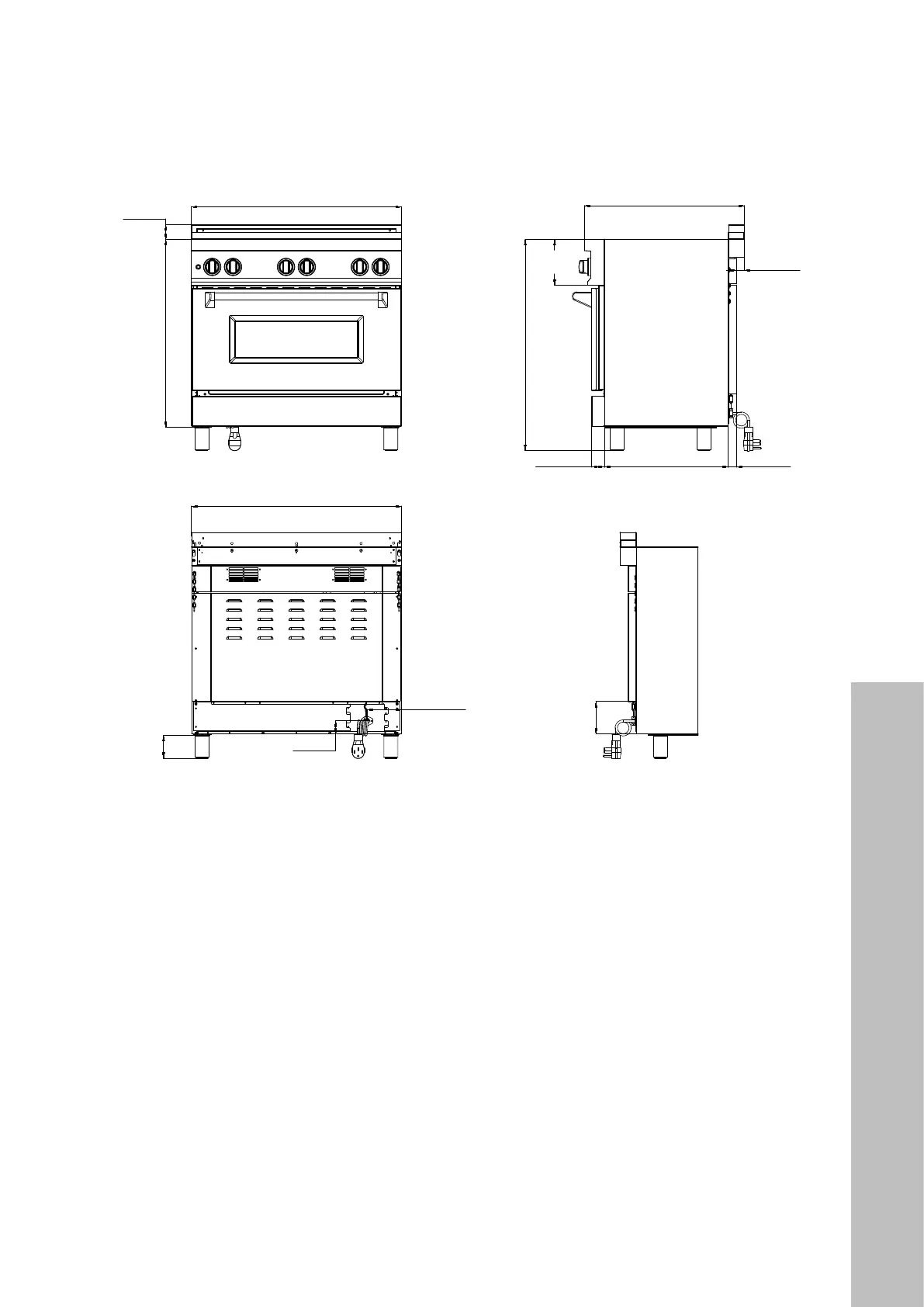

PRODUCT DIMENSIONS
27 1/2" (699 mm)
7 7/8"
(200 mm)
36 1/8"
(816 mm)
1 1/4" (32 mm)
1 1/2" (38 mm)
7 1/2" (191 mm)
6" (152 mm)
4" (102 mm)
2 1/2" (64 mm)
32 1/8"
(816 mm)
2 1/2" (64 mm)
A
A
21 1/4" (540 mm)2 1/8" (54 mm)
NOTE: “A” changes depending on size of range:
• RAIND-24 series ranges: Actual product width is 23 7/8" (606 mm)
• RAIND-30 series ranges: Actual product width is 29 3/4" (756 mm)
• RAIND-36 series ranges: Actual product width is 35 3/4" (908 mm)
NOTE: The above diagram is of the RAIND-36 series range model; the measurements listed
besides width are universal across all RAIND series ranges. For additional dimensions,
see pages 10–11.
BEFORE INSTALLATION
Product Dimensions
