2.6 Connecting to a Power Source
WARNING
Failure to comply with the following warnings can
result in permanent injury, electrocution or drowning.
PREVENT ELECTRICAL SHOCK
• Keep the Control box at least 3.5 m from the edge
of the pool.
• The cleaner is to be installed in accordance with
the relevant requirements of the Australian wiring
rules AS/NZS 3000. Also refer to the installation
instructions relating to the swimming pool equipment
for which the cleaner will be an integral part. The
cleaner is to be supplied through a Residual Current
Device (RCD) with a rated residual operating current
of 30mA.
• Do not use an extension cord to connect the
Control box.
• Do not allow anyone to swim while the cleaner is in
the pool.
• The Control box is water-resistant, not waterproof.
In order to prevent electrocution, never submerge
the Control box or leave exposed to inclement
weather.
To Connect:

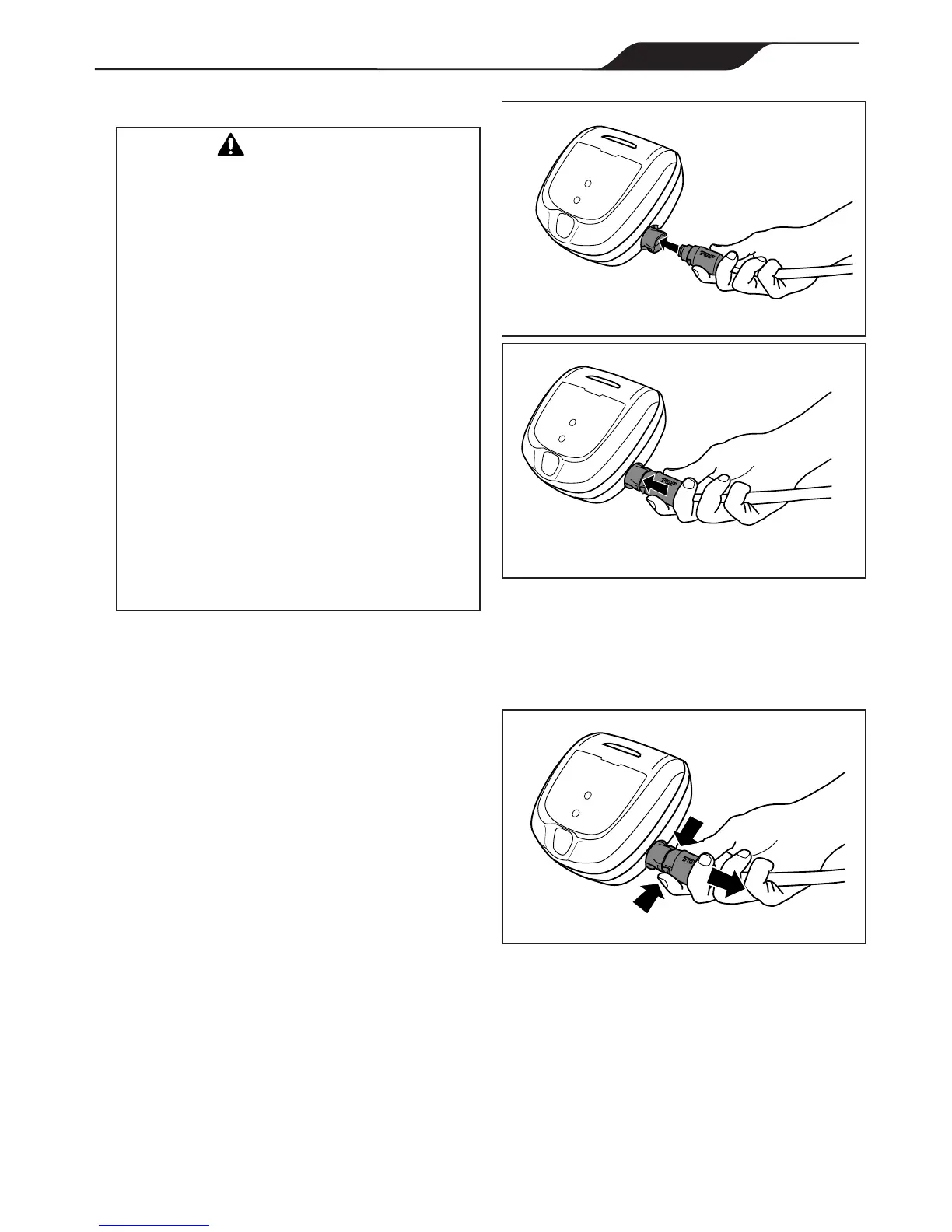

• Rotate the power cord so that TOP is shown on
the top side. Press the power cord rmly into
the control unit until you hear a "click" (see
Figure 10). The clicking indicates the power
cord is connected correctly creating a watertight
seal.
"CLICK"
"CLICK"
2
1
"CLICK"
"CLICK"
Figure 10. Connect the Power Cord
To Disconnect:
• Grip the power cord rmly on each side and
press two tabs to release (see Figure 11.)
Figure 11. Disconnect the Power Cord
