Zodiac G4 - Diaphragm Removal and Inspection

SECTION 3 – QUICK RELEASE
CASSETTE SYSTEM
STEP 2: Removal of Diaphragm

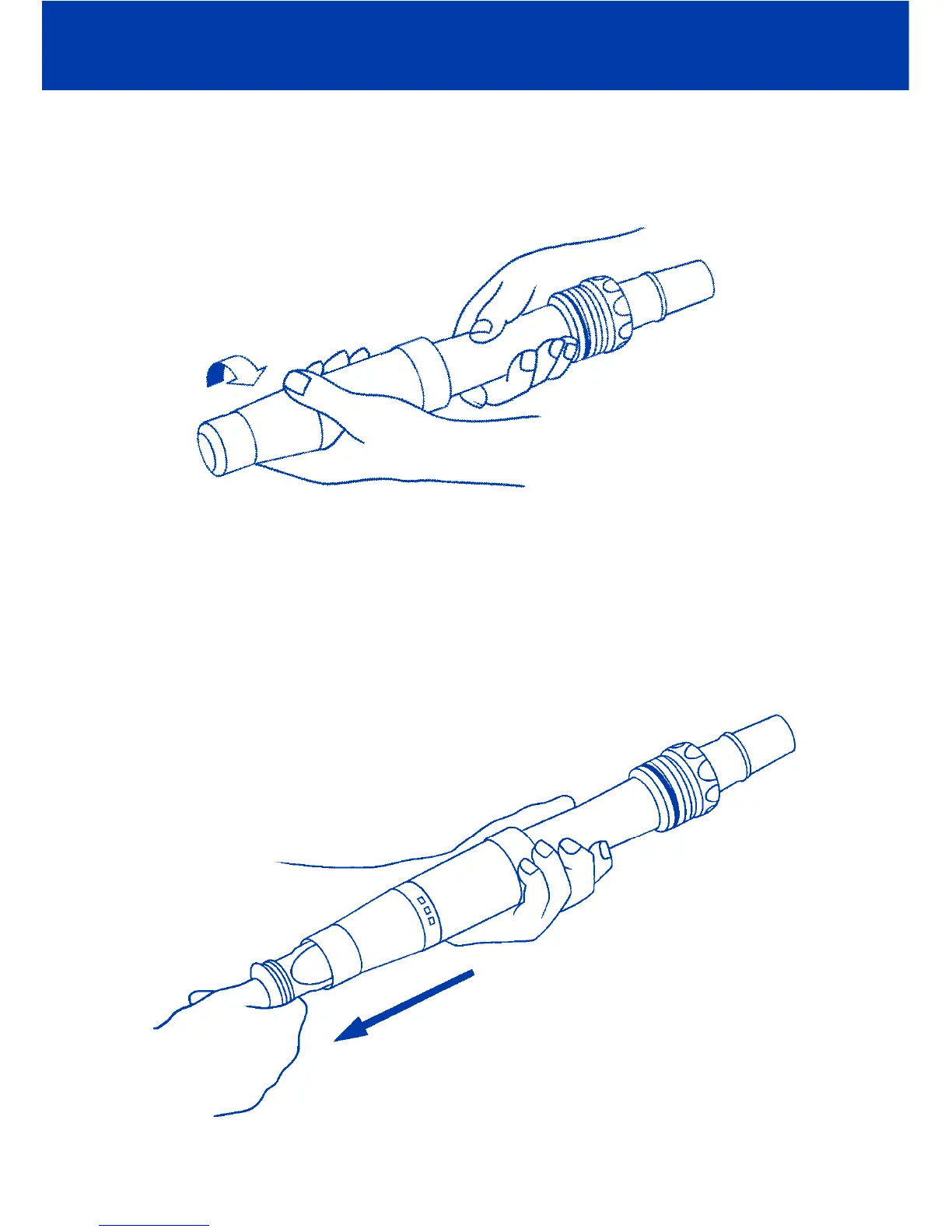

Grasp the extension pipe in one hand and unscrew the cassette ± 2 TURNS anti-
clockwise (Figure 3).
Grasp the rim of the diaphragm and pull the diaphragm assembly out of the
cassette (Figure 4).
FIGURE 4
7
FIGURE 3
