Zodiac MX8 - Page 8

17
18 R-KIT, MX8 WHEEL PIN 4
19 R-KIT, MX8 WHEEL 4
20 R-KIT, MX8 REVERSING ASSEMBLY- SIDE A 1
21 R-KIT, MX8 BODY PANEL - LEFT (A) 1
22 R-KIT, MX8 CHASSIS ASSEMBLY 1
23 R-KIT, MX8 LOWER BODY HOUSING 1
24 R-KIT, MX8 BODY PANEL - FRONT (C) 1
25 R-KIT, MX8 SCRUBBER ASSEMBLY 2
26 R-KIT, MX8 INLET ASSEMBLY 1
26b R-KIT, MX8 REGULAR OPENING 1
27 R-KIT, TWIST LOCK HOSE - 1 METER, BLUE/GRAY 12
28 R-KIT, AUTOMATIC FLOW ADJUSTMENT VALVE 1
29 R-KIT, FLOW TESTER 1
30 R-KIT, IN-GROUND VALVE CUFF 1
31 R-KIT, TWIST-LOCK 45 DEG ELBOW, EXTENDED 1
32 R-KIT, 45 DEG ELBOW 1
Zodiac
®

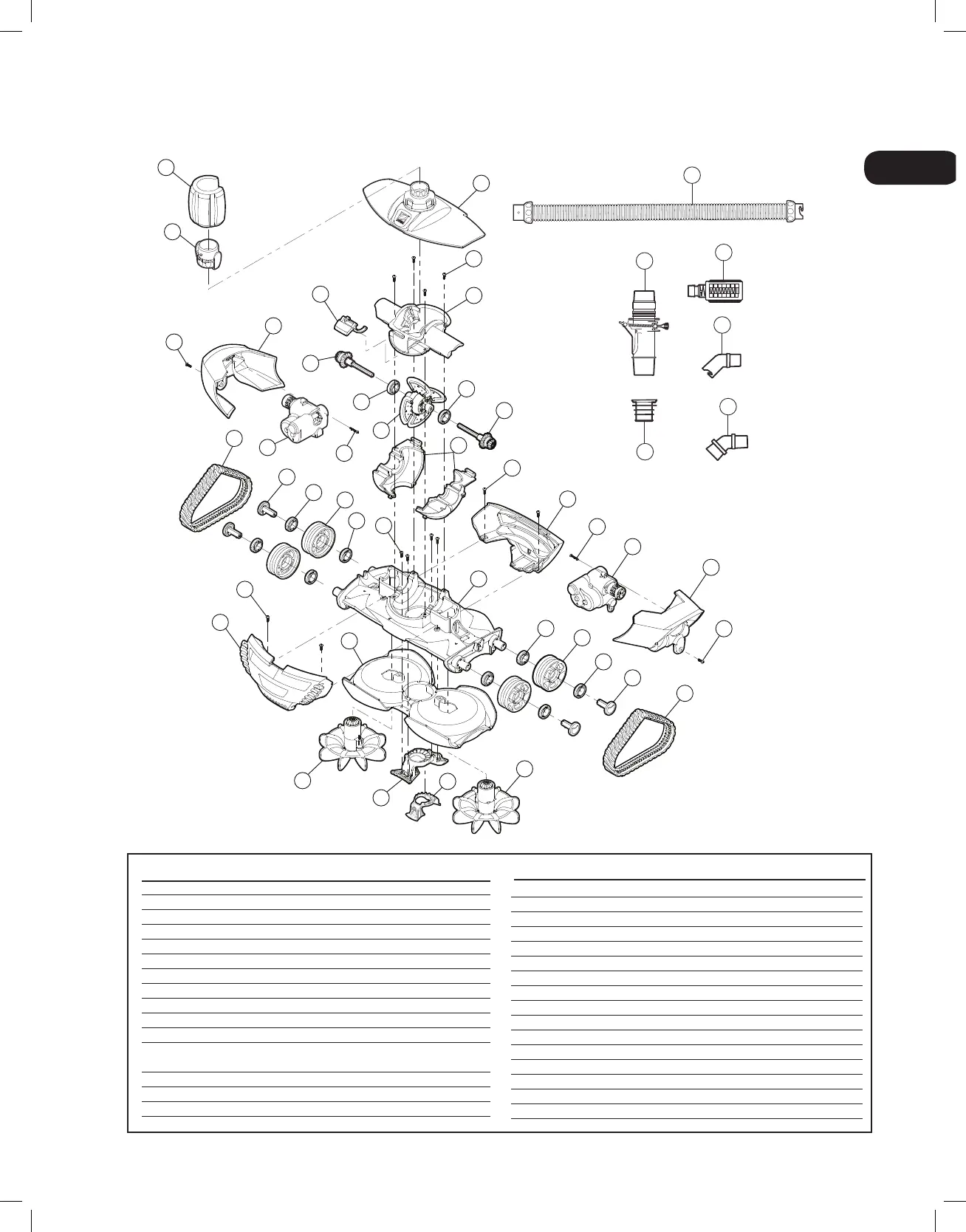

MX™ 8 Parts Diagram
No. Description Qty.
1 R-KIT, MX8 HOSE FLOAT 1
2 R-KIT, CLIP-ON HOSE ADAPTOR 1
3 R-KIT, MX8 TOP COVER W/SWIVEL ASSEMBLY 1
6 R-KIT, SCREW, M4x12mm, PHILLIPS #2 PAN HEAD 16
7 R-KIT, MX8 MIDDLE DRIVE MOTOR HOUSING 1
8 R-KIT, MX8 COVER LATCH 1
9 R-KIT, MX8 BODY PANEL - RIGHT (B) 1
10 R-KIT, MX8 DRIVE SHAFT ASSEMBLY 2
11 R-KIT, BEARING, (WHEEL & ENGINE) 10
12 R-KIT, MX8 DRIVE MOTOR ASSEMBLY 1
13 R-KIT, MX8 LOWER DRIVE MOTOR HOUSING- SIDE A & SIDE B 1
14 R-KIT, SCREW, THREAD FORMING,
#6-18 7/8in TYPE A, PHILLIPS #2 PAN HEAD 2
15 R-KIT, MX8 BODY PANEL - REAR (D) 1
16 R-KIT, MX8 REVERSING ASSEMBLY- SIDE B 1
17 R-KIT, MX8 TRACK 2
0 1 2 3 4 5 6
6 5 4 3 2 1 0
2
1
3
7
6
12
10
13
11
16
11
11
14
6
18
17
11
19
6
15
14
20
22
24
23
19
11
6
26
25
25
21
11
17
18
6
8
9
10
28
31
29
27
30
32
6
26b
No. Description Qty.
