Zodiac VORTEX-PRO VX45 4WD - Cord Tangling

3

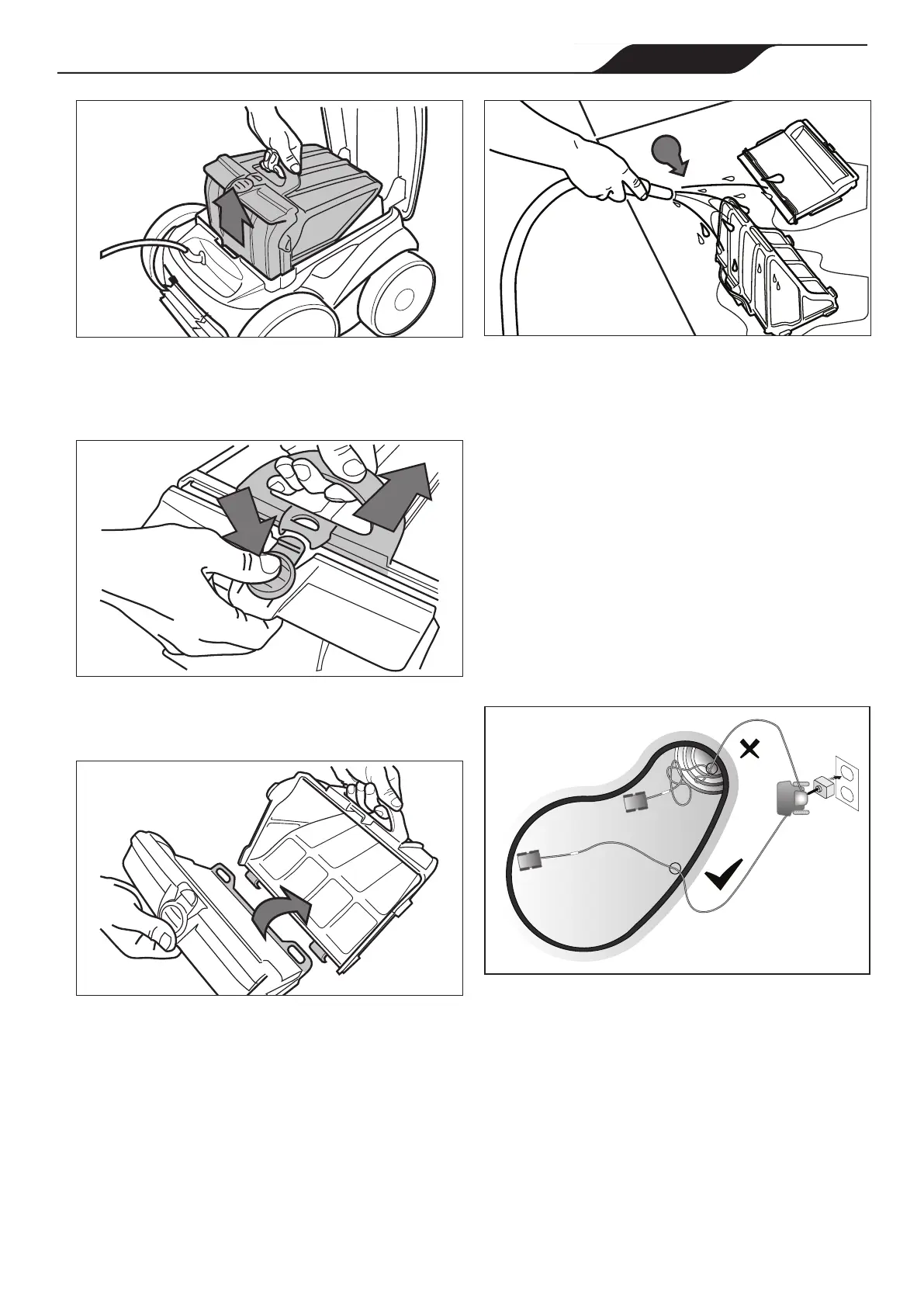

Figure 28. Remove Filter Canister Assembly
7. Push the quick release button on the canister
assembly(4)andpullopenthelterassembly
(5), as shown in Figure 29.
4
5
Figure 29. Open Filter Canister Assembly
8. Separatetheltercanisterfromthelter
support (6), as shown in Figure 30.
6
Figure 30. Remove Filter Canister
9. Emptyalldebrisfromtheltercanister,then
rinsethecanister,theltersupport,andthe
cleaner under water or using a hose, as shown
in Figure 31.
Figure 31. Wash Filter Canister
7
6.2. Cord Tangling
Tangling can occur more frequently when operating
the cleaner on the automatic timer 7-Day Programmed
Cycle (VX45 4WD/ VX50 4WD and VX55 4WD).
Spreadouttheoatingcableoverthepool,ensuring
there are no kinks or coils in the cable. Do not leave the
cleaner unattended for prolonged periods and follow
procedure below to avoid excessive tangling.
NOTE: Foroptimalpatterningandreducedtangling,the
floatingcableshouldenterthewaternearthemiddle
ofthepoollength.Onlyplaceenoughcableinthe
watertoreachthefarthestpointinthepool.
17
H0516700_REV C
