Orientation
05

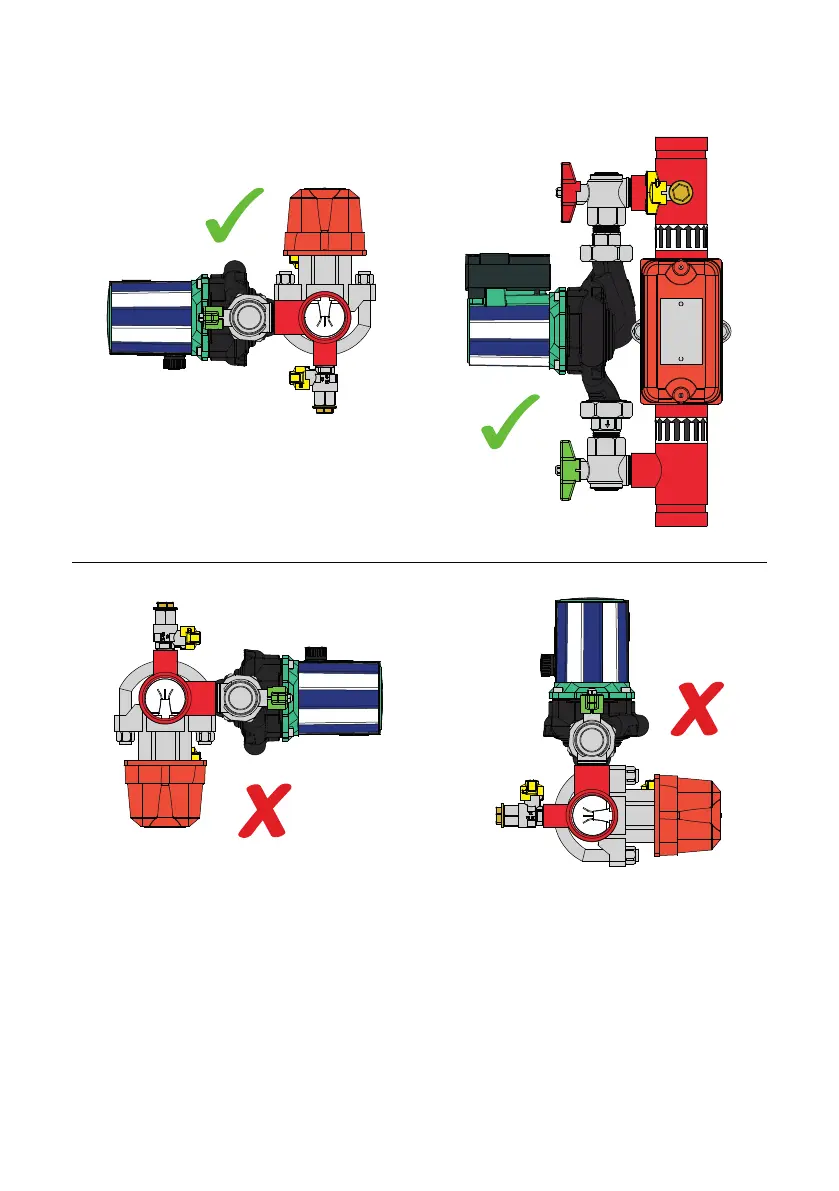

Plan view
Side view
Pump not horizontalFlow-switch on underside of pipe
Remember:
• The pump direction-of-flow arrow faces the opposite direction to the system flow.
• The red & green stripes on the pump cartridge are always horizontal.
• Do not position the flow-switch on the underside of the pipe.
• For vertical flow applications, only mount flow-switch where up-flow conditions exist.
