06

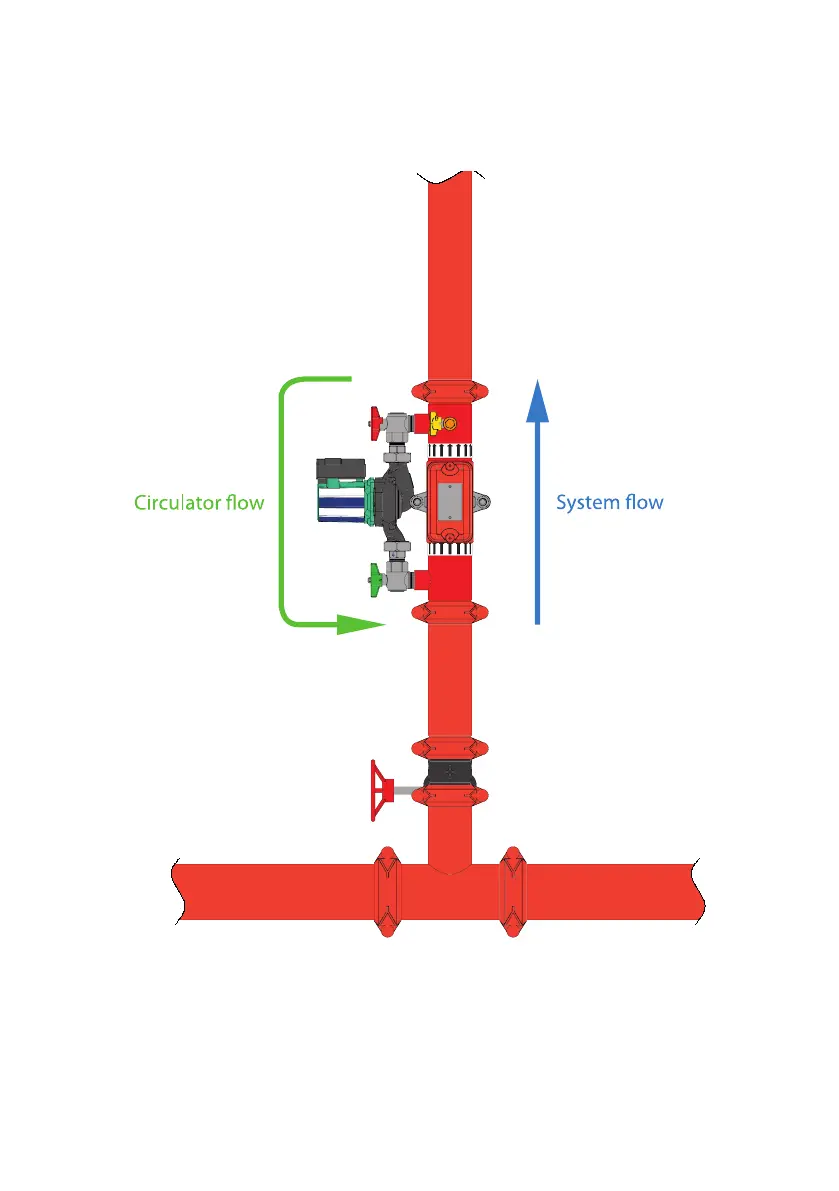

Typical connection
A typical multi-occupancy Zonecheck Installation. For an example of a typical riser installation visit our website:
www.projectfire.co.uk
View from above
Zone Valve
