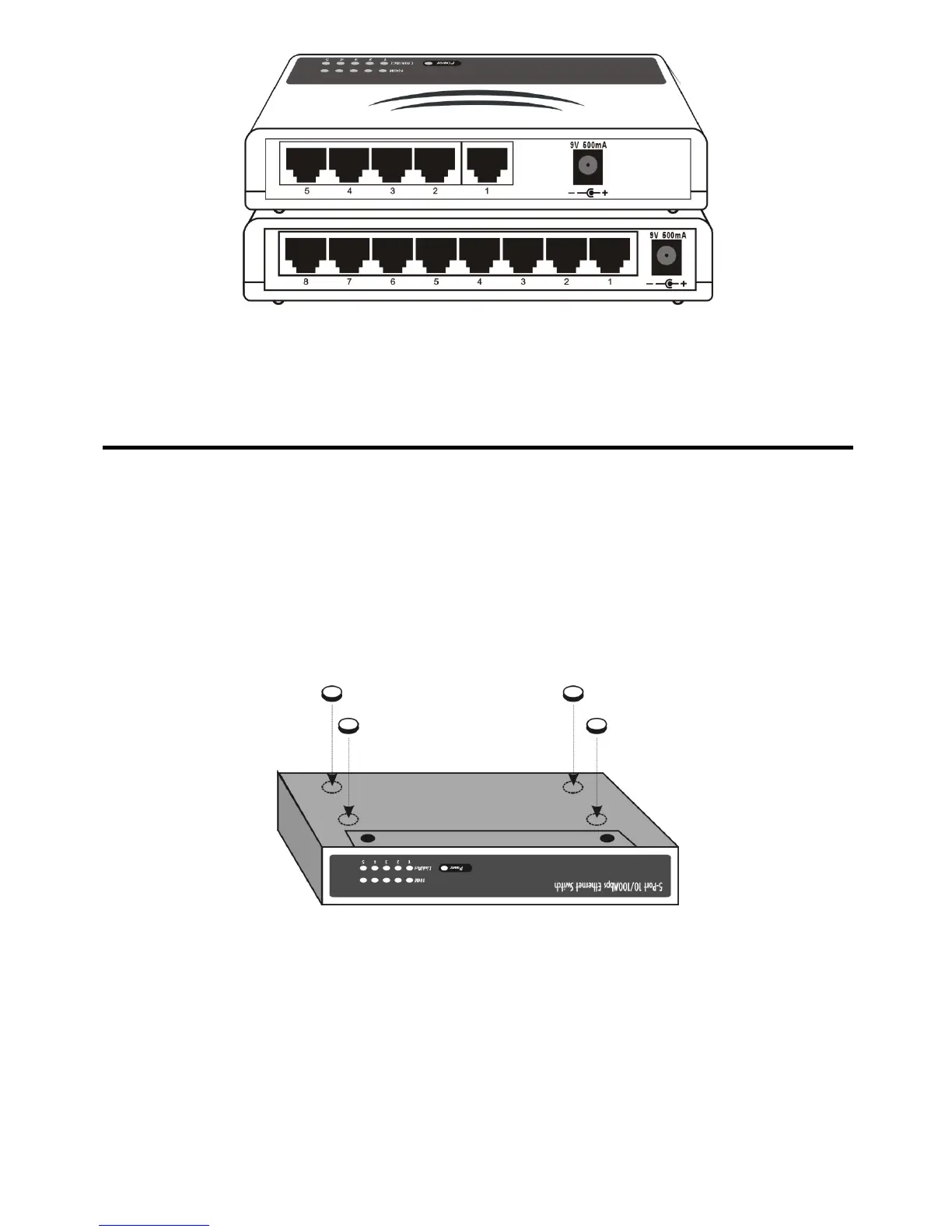

Figure 2-3. Back Panel of 5/8-port Ethernet Switch
Mounting the Hub on a Flat Surface
The Ethernet Switch can be situated on any flat surface such as a table,
desktop or wiring closet. When placing the hub, please avoid dusty
locations and electromagnetically noisy areas.
For cushioning, use the supplied self-adhesive rubber pads. Peel the
protective paper backing off the rubber pads, and then stick the rubber
pads at the four corners of the bottom side of the hub. Figure 2-4 shows an
illustration.
Figure 2-4 Attaching the Rubber Pads
