Zontes ZT155-U1 User Manual

1-FRAME&ELECTRONIC COMPONENT
8
CHK
ADJ
NO. PART NO.
PART NAME QTY CAUTION
1 1184200-004000 ZT310 horn 1
2 1251112-001093 M6×16 Hexagon flange bolts (color zinc) 1
3 1224100-037000 Grade 0 flame retardant tie (black 3.6×295) 2
4 1250205-040095 GB70.1 inner hex bolt M8×16
（
color Zinc
）
2
5 1184100-012000
ZT250
－
S shut down switch
1
6 1250201-032093 GB818M5×16 (environmental color) 2
7 1184200-104007 ZT310 EFI ignition coil (with high voltage line) 1

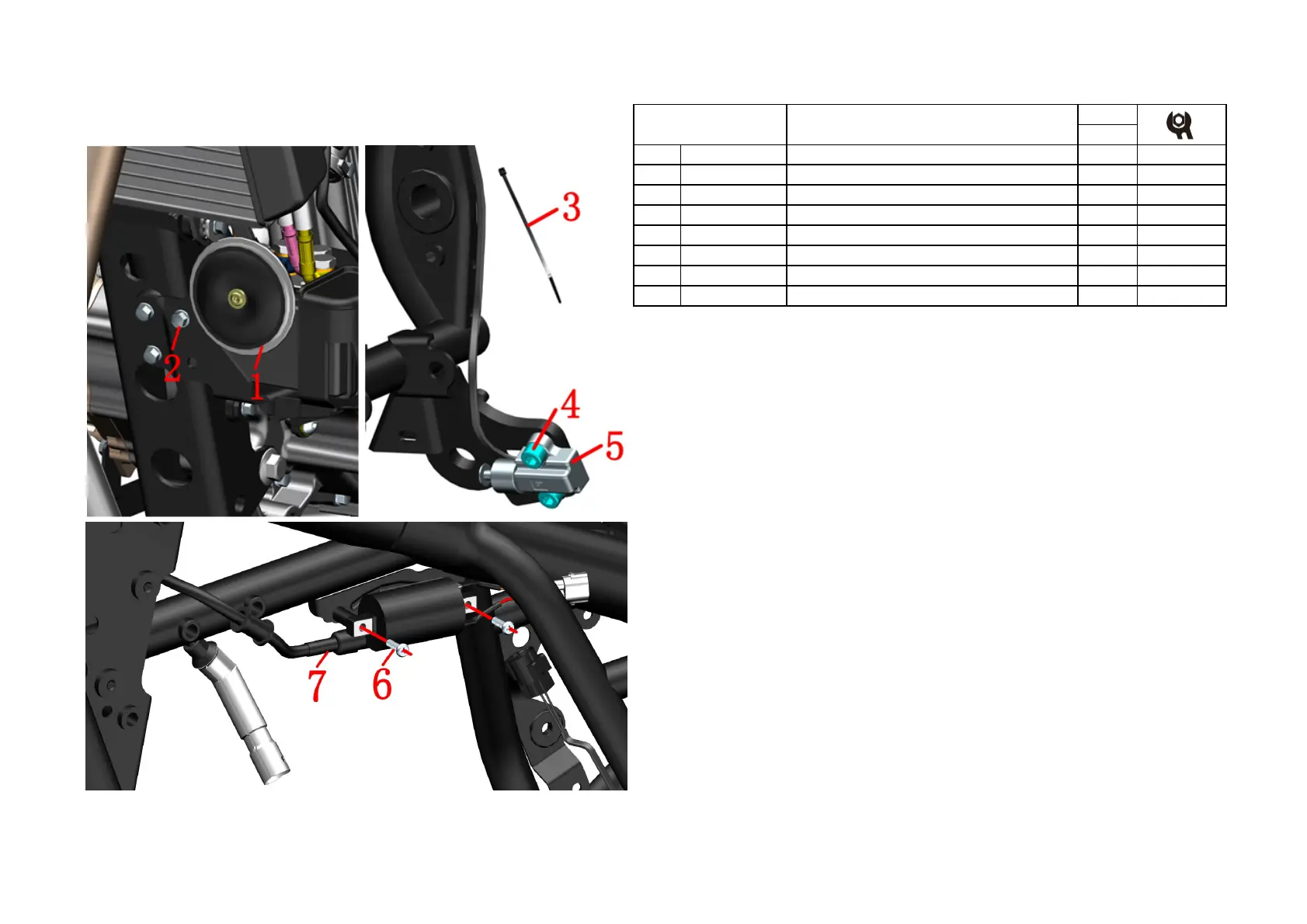

Fig.2 FRAME&ELECTRONIC
COMPONENT
Electronic parts COMPONENT-2
PROCEDURE：
●Horn
Take off the plug of horn, take the horn(⑴ by one hand use 8# sleeve remove bolts ⑵ by another hand,then
take off the horn⑴.
●Shut down switch
Find and take off the plug of the shut down switch⑸ , cut ribbon ⑶.Using 6# inner hexagon socket remove
2pcs bolts⑷ then take off shut down switch⑸.
●Ignition coil
Take off the plug of the ignition coil.Remove the crosshead bolts⑹ with a cross screwdriver and remove the
ignition coil⑺.
CAUTION：
●When Take off the plug can't drag any cable.

Zontes ZT155-U1 Specifications

General

Displacement	155 cc
Transmission	6-speed
Fuel System	Electronic Fuel Injection (EFI)
Fuel Tank Capacity	12.5 liters
Rear Suspension	Mono shock
ABS	Dual-channel ABS
Bore x Stroke	58 mm x 58.7 mm
Compression Ratio	12.5:1
Starting System	Electric
Front Tire	110/70-17
Rear Tire	130/70-17
Engine Type	Single Cylinder, 4-Stroke, Liquid Cooled
Torque	16 Nm @ 7500 rpm
Front Suspension	Inverted telescopic fork
Front Brake	Single Disc
Rear Brake	Single Disc
Frame Type	Steel Tube
Wheelbase	1370 mm
