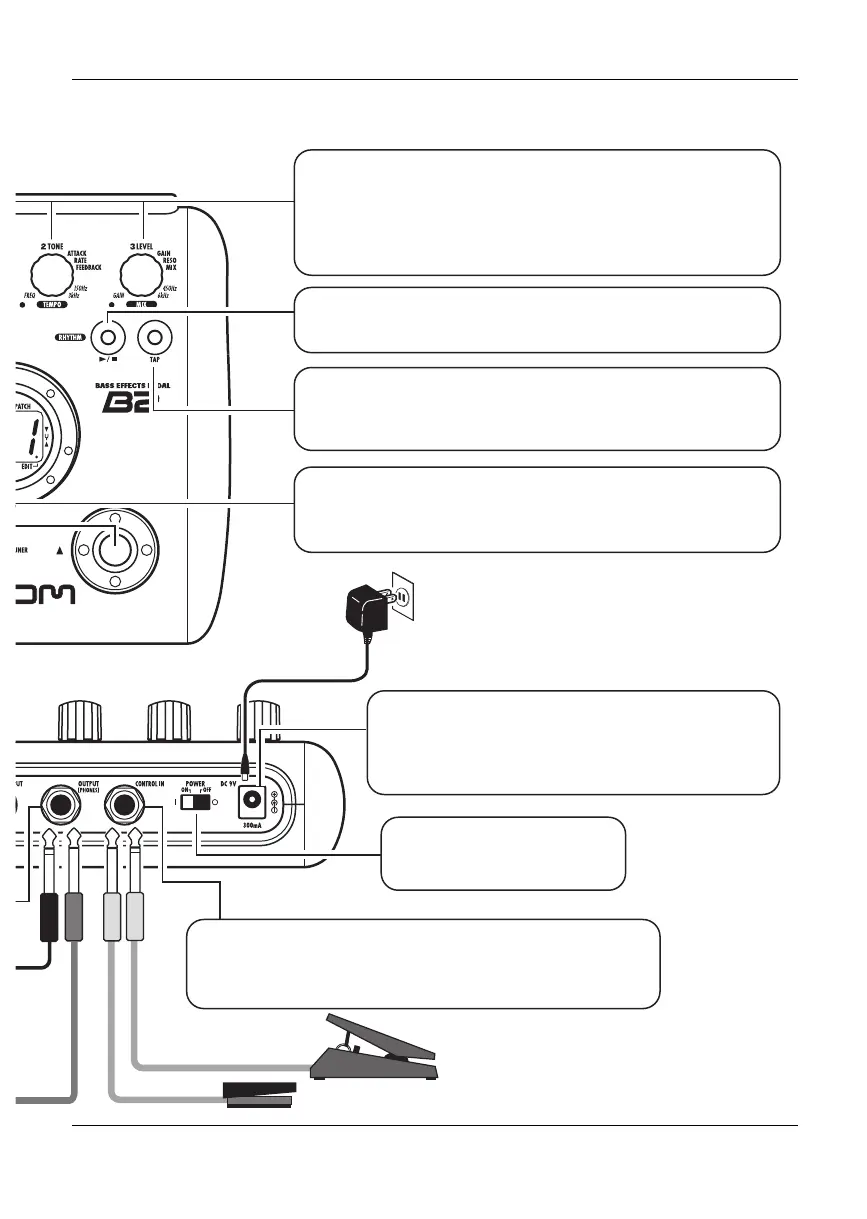

Controls and Functions / Connections
ZOOM B2
7
Parameter knobs 1 - 3
These knobs allow changing the level of effect
parameters or of the overall patch. During rhythm
playback, the knobs let you select a pattern, set the
tempo, and adjust the rhythm volume.
[TAP] key
Allows manual input of time related effect parameter
values such as delay time, and rhythm pattern tempo.
Display
Shows patch numbers, setting values, and other
information about operating the B2.
[CONTROL IN] jack
Serves for connection of the optional foot switch
(FS01) or expression pedal (FP01/FP02).
[DC IN] jack
An AC adapter (ZOOM AD-0006) with a rated
output of 9 volts DC, 300 mA (center minus
plug) can be plugged into this jack.
[POWER] switch
Turns the unit on and off.
RHYTHM [R/P] key
Serves to start/stop rhythm playback.
AC adapter
FP01/FP02
FS01
