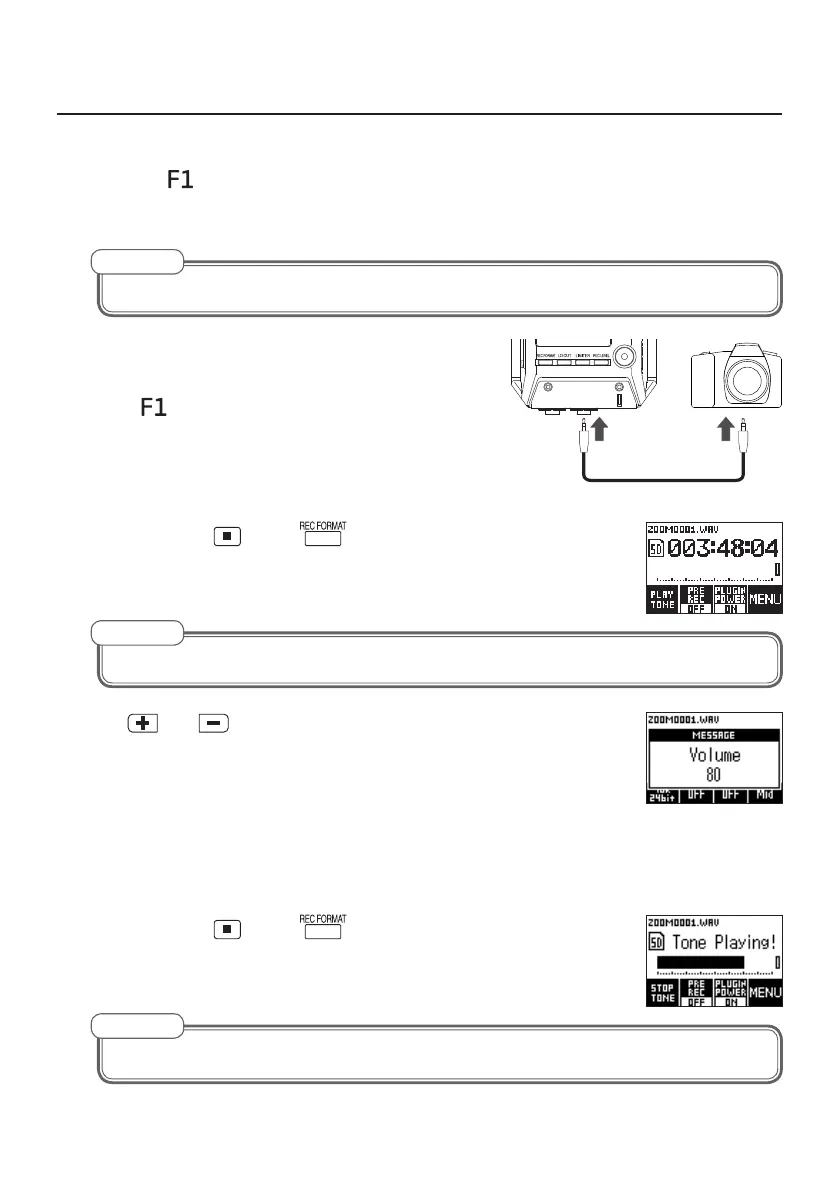

Adjusting the levels of connected devices
Play the test tone in order to adjust the level of a digital SLR camera or other device con-
nected to the
.
1.
Minimize the input gain of the other device.
Iftheautomaticgaincontrolfunctionontheotherdeviceison,turnito.
NOTE
2.
Use an audio cable to connect the external mic
jack of the other device with the PHONE OUT jack
of the
.
3.
While pressing , press .
This plays a test tone from the PHONE OUT jack.
Becarefulofthevolumeifyouaremonitoringthesoundwithheadphones,forexample.
NOTE
4.
Use and to adjust the input level.
While checking the audio level meter of the other device, adjust the audio
signallevelsothatitneverexceeds−6dB.
5.
Adjust the input gain of the other device.
While checking the audio level meter of the other device, adjust the audio
signallevelinsmallincrementsuntilitisabout−6dB.
6.
While pressing , press .
Stop test tone playback.
See the operation manual of the other device for information about its operation.
NOTE
