Zoom F1 Quick Guide

3

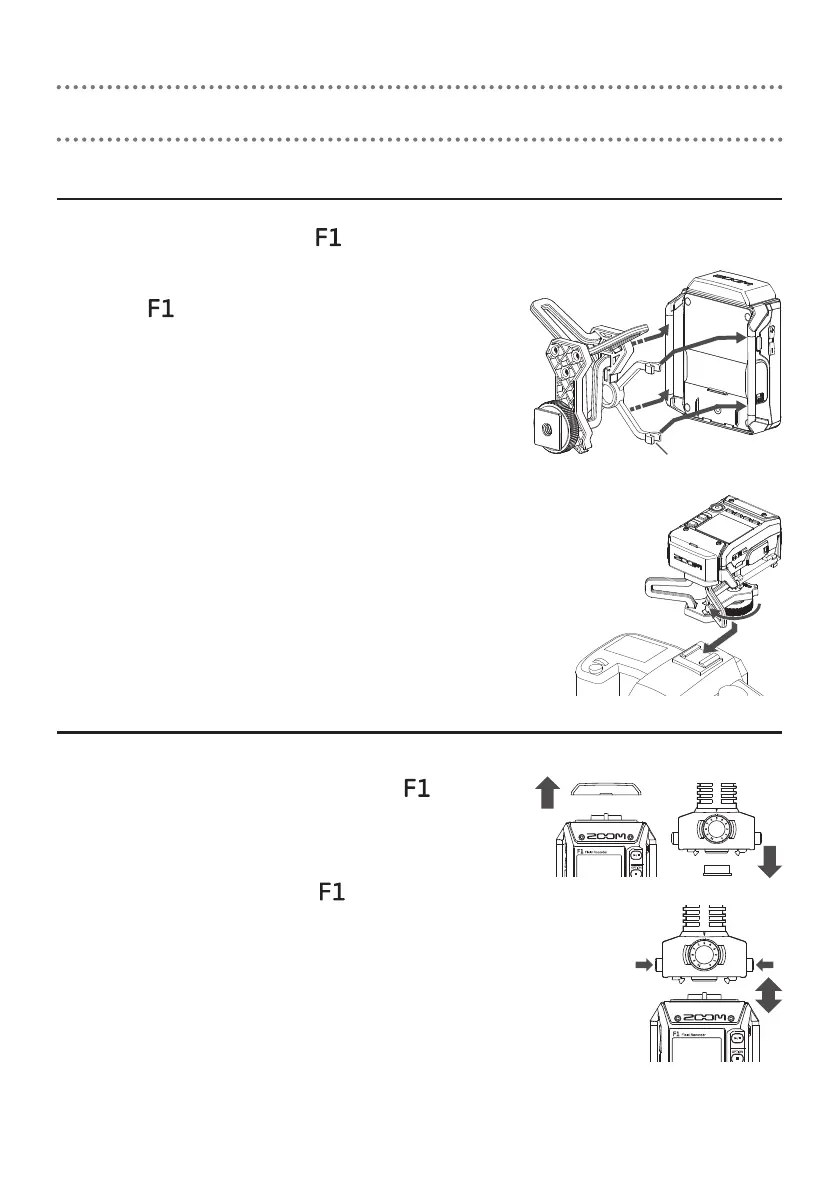

Assembly and connections
Shock mount
This can reduce noise when the is mounted on a digital SLR camera.
1.
Attach the ends of two arms from the shock mount
to one
belt loop.
2.
Attach the other arms one at a time to the other
belt loop.
Using the elasticity of the arms, attach their ends to the belt
loops while bending them slightly.
3.
Slide the shock mount onto the camera accessory
shoe and tighten the screw to attach it.
Mic capsules
1.
Remove the protective caps from the and the
mic capsule.
2.
While pressing the buttons on the sides of the mic
capsule, connect it to the
, inserting it com-
pletely.
3.
To disconnect the mic capsule, pull it away from
the unit while pressing the buttons on its sides.
2, 3
3
2
1
Arms (2 each on left and right)

Zoom F1 Specifications

General

Type	Field Recorder
Audio Formats	WAV, MP3
Max Sample Rate/Resolution	96 kHz / 24-Bit
Power	2 x AAA Batteries, USB Bus Power
Battery Life	Up to 10 hours
Simultaneous Recording Tracks	2
Built-In Microphone	No
Input Channels	2
Output Channels	1
USB	1 x Micro-USB
Recording Media	microSD/microSDHC cards (up to 32 GB)
Dimensions	64 x 79.8 x 34 mm
Display	Monochrome LCD
Line Input	1 x 1/8" (3.5 mm) TRS
Headphone Output	1 x 1/8" / 3.5 mm TRS
Microphone Input	1 x 1/8" (3.5 mm) TRS
