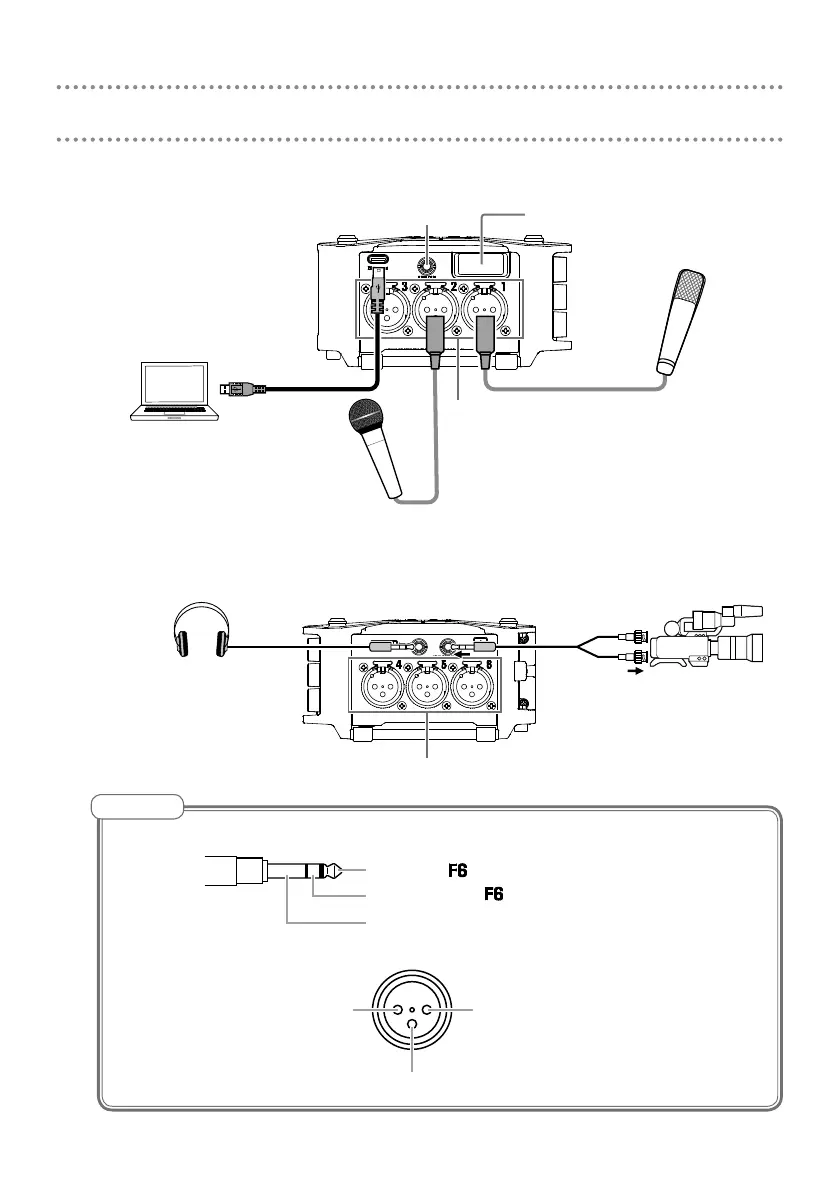

Connections
■
Left side
Condenser
mic
Dynamic mic
• Computer
Audio interface
Card reader
• FRC-8 F Series remote controller
• Dedicated AC adapter (ZOOM AD-17)
• 5V mobile battery (commercially-available)
Playback device, etc. BTA-1 or other dedicated wireless adapter
Inputs for mics, instruments and mixers
■
Right side
Headphones
Timecode
Inputs for mics, instruments and mixers
The timecode cable input and output should have the following specications.
Tip: Input to (output from external device)
Ring: Output from (input to external device)
Sleeve: GND
The XLR 1–6 inputs have the following specications.
1：GND
2：HOT
3：COLD
12
3
