Zoom G1X Service Manual

- 31 -
Supplement: Identification of main PCB
Main PCB is common use for other production. Therefore, this main PCB has
check box to identify which production will be used for.

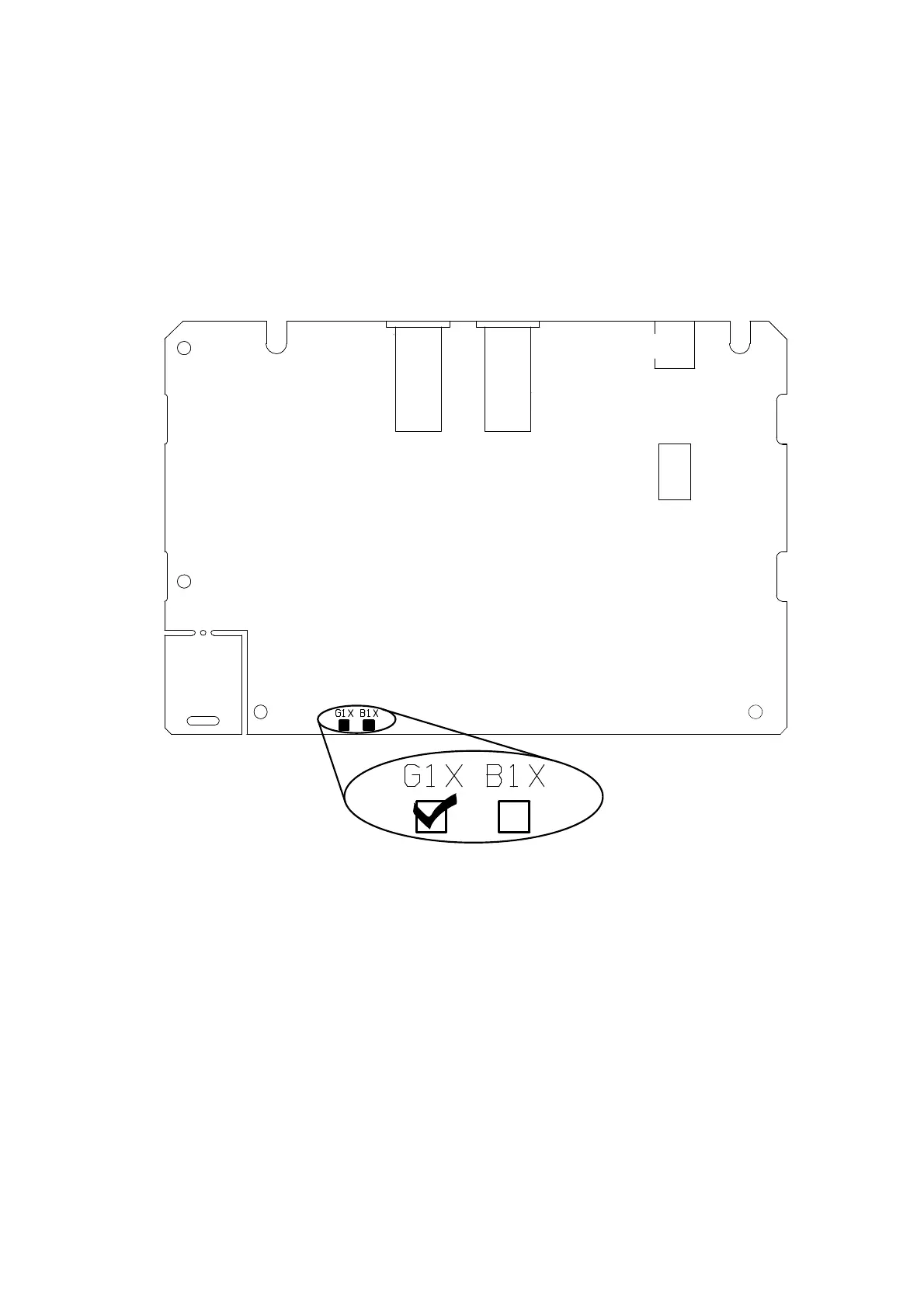

See below figure, it shows check box location on the main PCB.
Bottom Layer
Check box on the main PCB

Zoom G1X Specifications

General

Expression Pedal	Yes
USB	No
Patch Memory	40 user patches
Input	1/4" phone jack
Output	1/4" phone jack
Power Requirements	9V DC adapter or 6 AA batteries
Effects	Over 100
Inputs	1 x Instrument
Outputs	1 x 1/4" mono/stereo
Power Supply	9V DC adapter or 6 AA batteries
