Guitar amplifier
Guitar
Headphones
FP01/FP02
FS01
ZOOM AC adapter (AD-16)

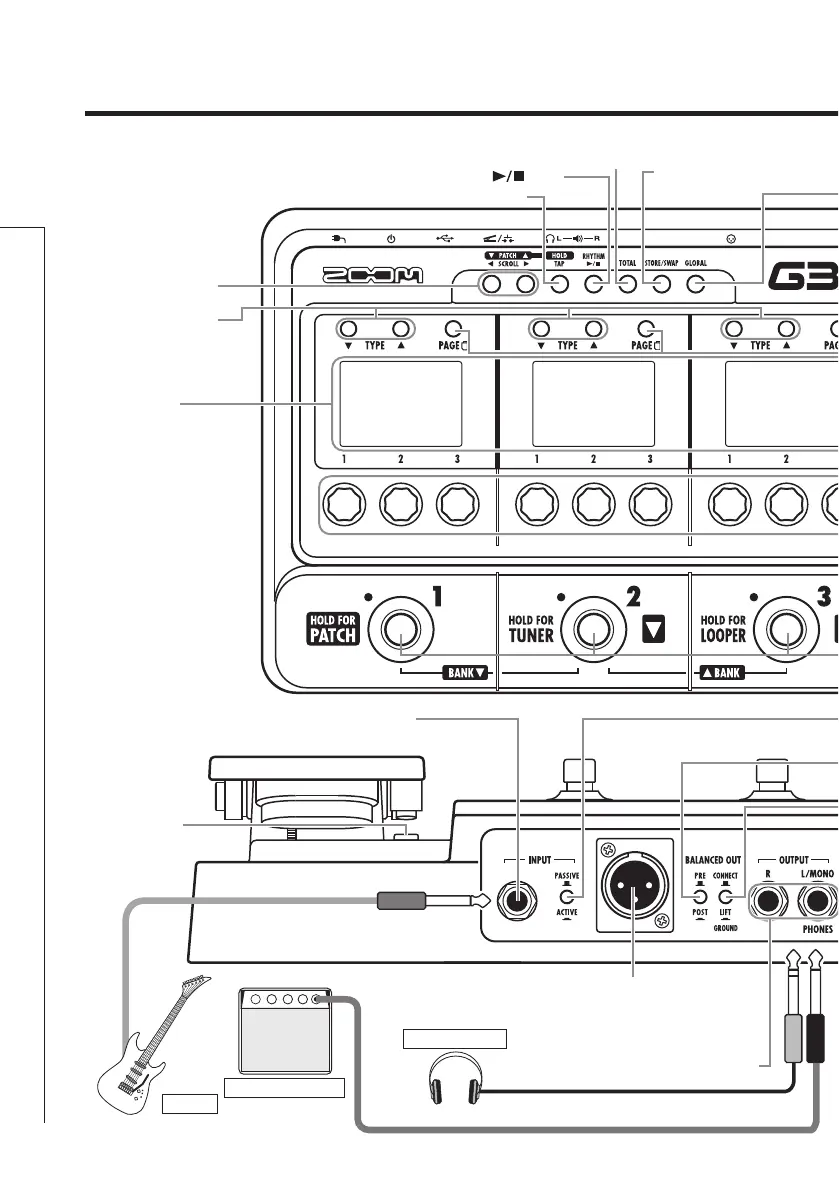

Top Panel
Rear Panel
Display
INPUT jack
BALANCED OUT connector
OUTPUT jack
CONTROL IN jack
USB connector
DC9V AC adapter jack
POWER (eco) switch
SCROLL keys
PAGE keys
Expression pedal
( only)
Foot switches1-3
TAP key
TOTAL key
RHYTHM [ ] key
GLOBAL key
STORE/SWAP key
TYPE keys
ACTIVE/PASSIVE switch
Use this switch to set the INPUT impedance.
Set this to “ACTIVE” (pushed in) if you have an effect pedal
connected between your instrument and the
or you are directly connecting a guitar with active pickups.
Set this to “PASSIVE” (not pushed in) if you are directly
connecting a guitar with passive pickups.
GROUND switch
Use this switch to connect or disconnect the
BALANCED OUT connector with the ground.
Set it to “LIFT” (pushed in) to separate the signal
path from the grounding pin. Set it to “CONNECT”
(not pushed in) to connect it to the grounding pin.
PRE/POST switch
Use this switch to set the point when
the signal is output from the BALANCED
OUT connector.
Set it to “POST” (pushed in) to output the
signal after the
effects. Set it to
“PRE”
(not pushed in) to output the signal
before the effects.
Computer
Parameter knobs1-3
(These are shown as
in this manual.)
Pedal switch
