Zoom H6essential - Page 17

17
■

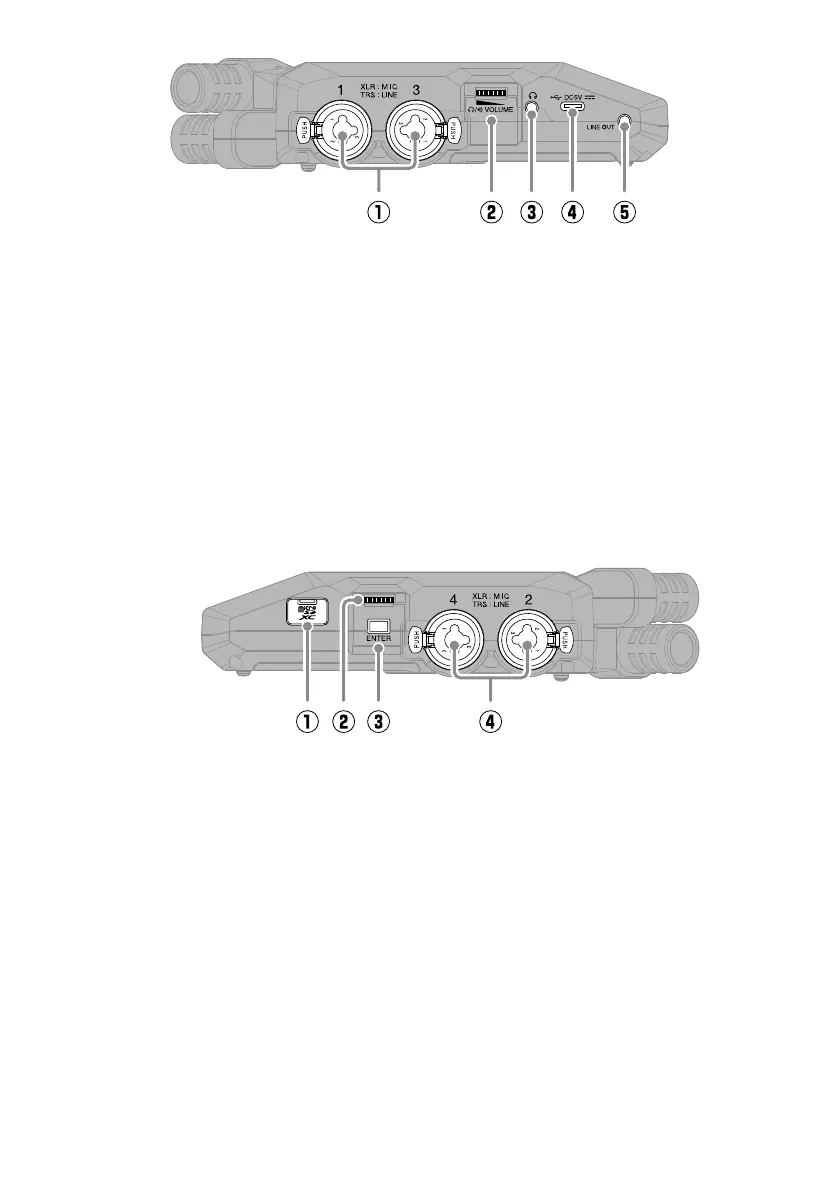

Left side
①
INPUT 1, INPUT 3 jacks
Connect mics and instruments to these.
These support XLR and 1/4-inch phone
(TRS) plugs.
②
VOLUME dial
Use this to adjust the volume output
from the speaker and headphones.
③
Headphone jack
This can output sound to headphones.
④
USB port (Type-C)
Connect this to a computer, smartphone
or tablet to use le transfer and audio
interface functions.
This supports operation on USB bus
power.
Use a USB cable that supports data
transfer.
⑤
LINE OUT jack
This outputs sound to a connected
device.
■
Right side
①
microSD card slot
Insert a microSD card here.
②
Select dial
Use this to select menu items.
③
ENTER button
Press this to conrm menu items.
④
INPUT 2, INPUT 4 jacks
Connect mics and instruments to these.
These support XLR and 1/4-inch phone
(TRS) plugs.
