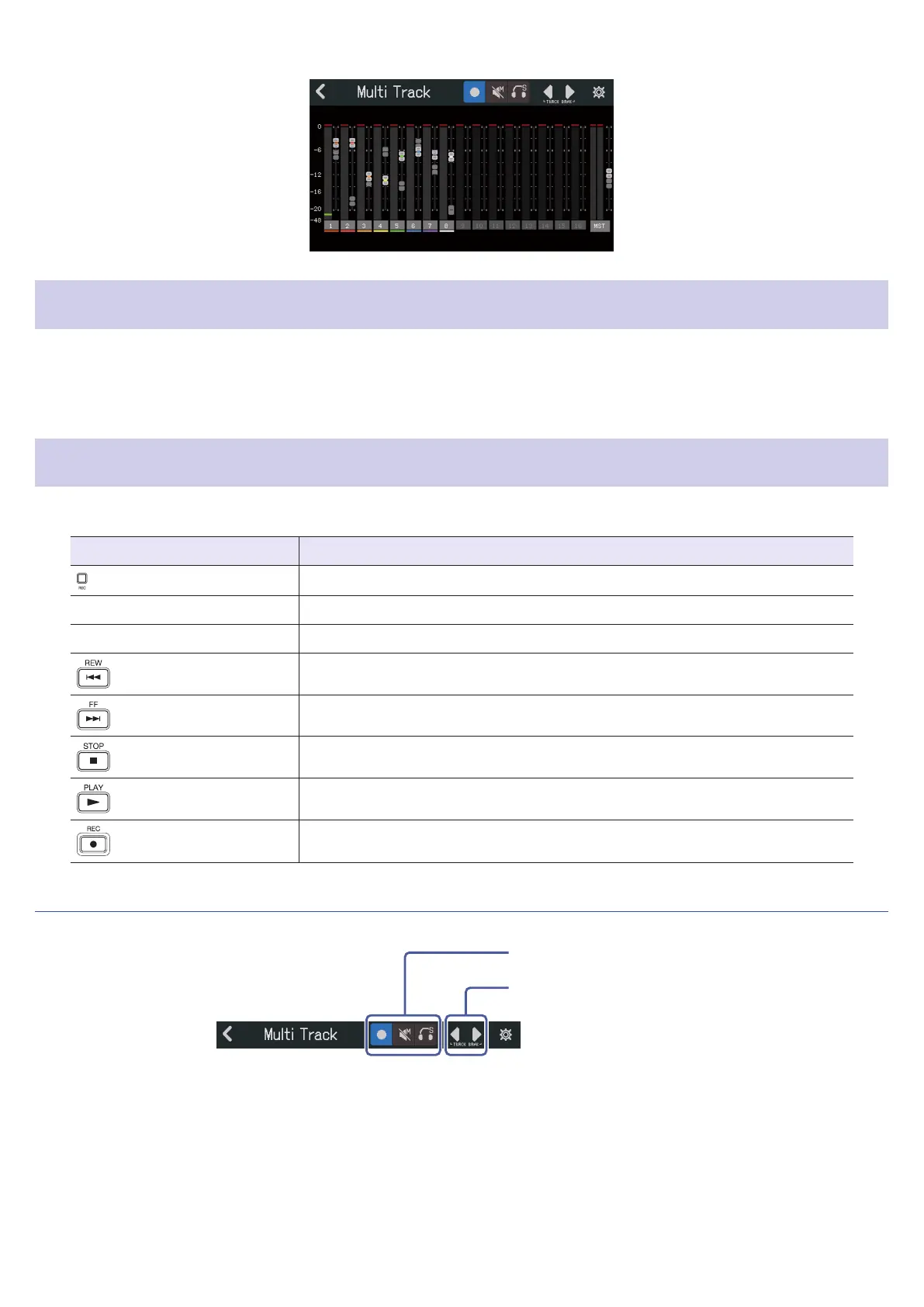

Zoom R20 Supplementary Manual

Setting the DAW
The R20's control surface is "Mackie Control" compliant.
On the DAW setting menu, add "Mackie Control" in "Device" and then select "ZOOM R20". See the manual included
with the DAW for details.
Functions for each operator of R20
Each button and fader of the R20 and button on the screen can control features of the DAW.
Operator Explanation
Turn Rec/Mute/Solo on/off for corresponding tracks.
Channel fader Adjust corresponding track signal levels.
MASTER fader Adjust the signal levels of the MASTER track.
Search backward.
Search forward.
Stop recording and playback.
Start playback.
Start recording.
Screen
❶
Rec/Mute/Solo buttons
❷
Track Bank buttons
❶
Rec/Mute/Solo buttons
Change the feature of Track REC buttons.
❷
Track Bank buttons
Change the bank.
4

Zoom R20 Specifications

General

Type	Digital Multitrack Recorder
Simultaneous Recording Tracks	8
Sample Rate	44.1 kHz
Bit Depth	24-bit
EQ	3-band EQ per channel
Inputs	8 XLR/TRS combo jacks
Phantom Power	+48V
Effects	Reverb, Chorus, Delay
Storage	SD card (up to 1TB)
USB	USB 2.0
Display	4.3-inch color touchscreen
Power Supply	AC adapter
Outputs	2 x TRS, 1 x Stereo Headphone
