Zoomlion FE10 User Manual

Instruction for use of the forklift with the triple pivot battery
12
1 Component of oil cylinder
2 Piston
3 Seal ring UN40F, 40×50×l0
4 Seal ring UN40D, 40×50×7.3
5 Rack
6Steering gearbox
7 Tapered roller
bearing32011(Class D)
8 Dust ring
9 Briquetting
10 Cross recessed pan head
screw M4 × 35
11 Potentiometer
l2 Adjustment of gasket (I)
13 Adjustment of gasket (II)
14Circlip for the hole 90
15Tapered roller bearing32015
(Class D)
16 Two lips-frame typed rubber
oil seal l10-125-9
17 Gear shaft
18 T-screw of tire: M14×45
19 Hub
20 Wheel hub cover
21 Thin hexagon slotted nut
M24×2
22 Cutter pin 5×40
23 Washer 24
24 Tapered roller bearing 30206
(Class D)
25Tapered roller
bearing30208 (Class D)
26 Two-lips frame typed
rubber seal 48-82-11
27 Steering wheel shaft
28 Conical locknut of tire: M14
29 Steering wheel
30 Fine tuning of screw-plug
31 Coupling shaft of
potentiometer
32 Circlip for the shaft 10
33 Hexagon socket cap
screw M6×55
34Spring washer 6
35Potentiometer seat
36 Deep groove ball bearing
6200(with the dust ring)
37 Elastic cylindrical pin
4×18

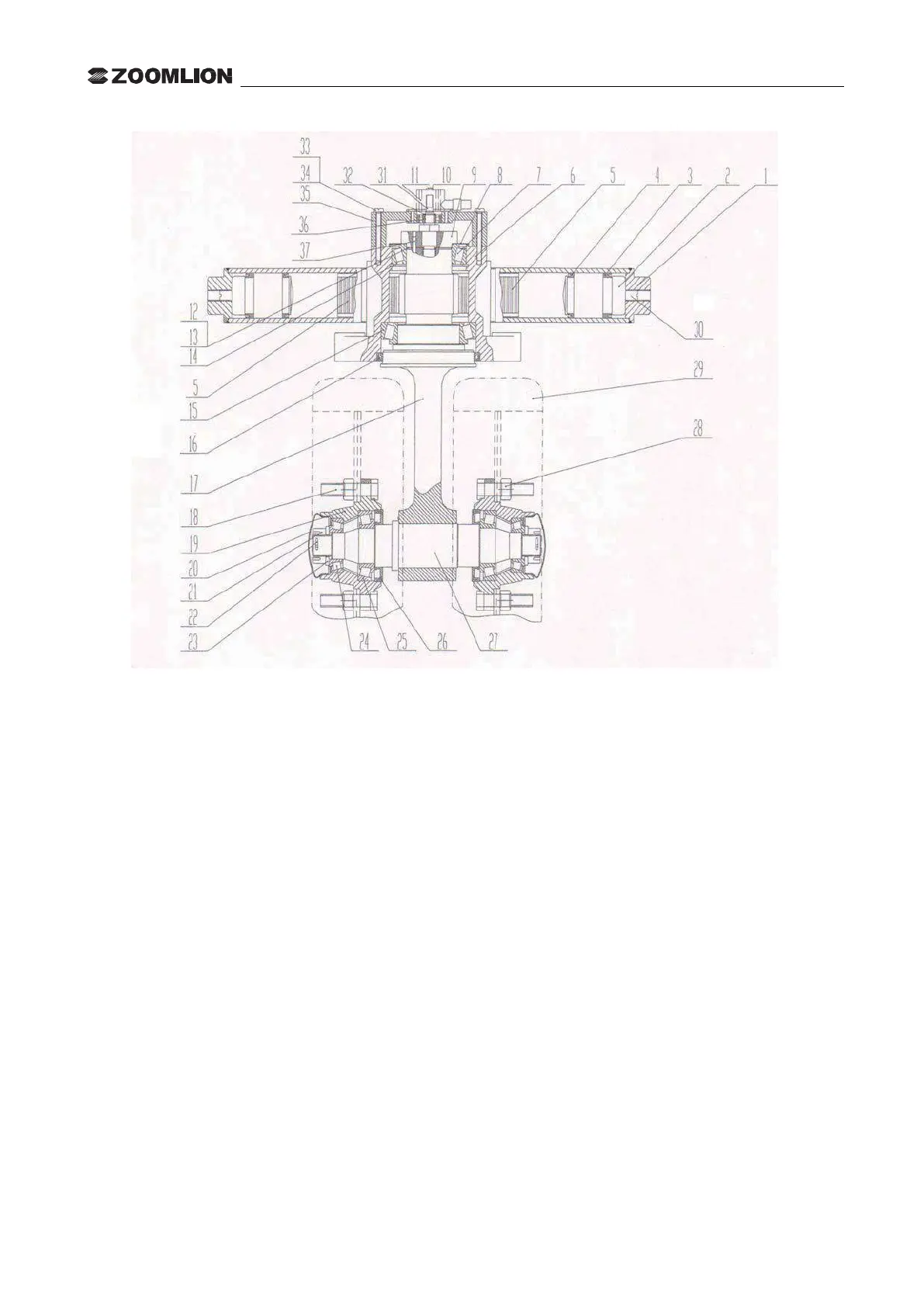

Fig 4-5 Steering axle
