cylinder be correctly positioned to prevent the oil leakage, and eliminate the air resistance possibly occurred in
case of emergency brake.

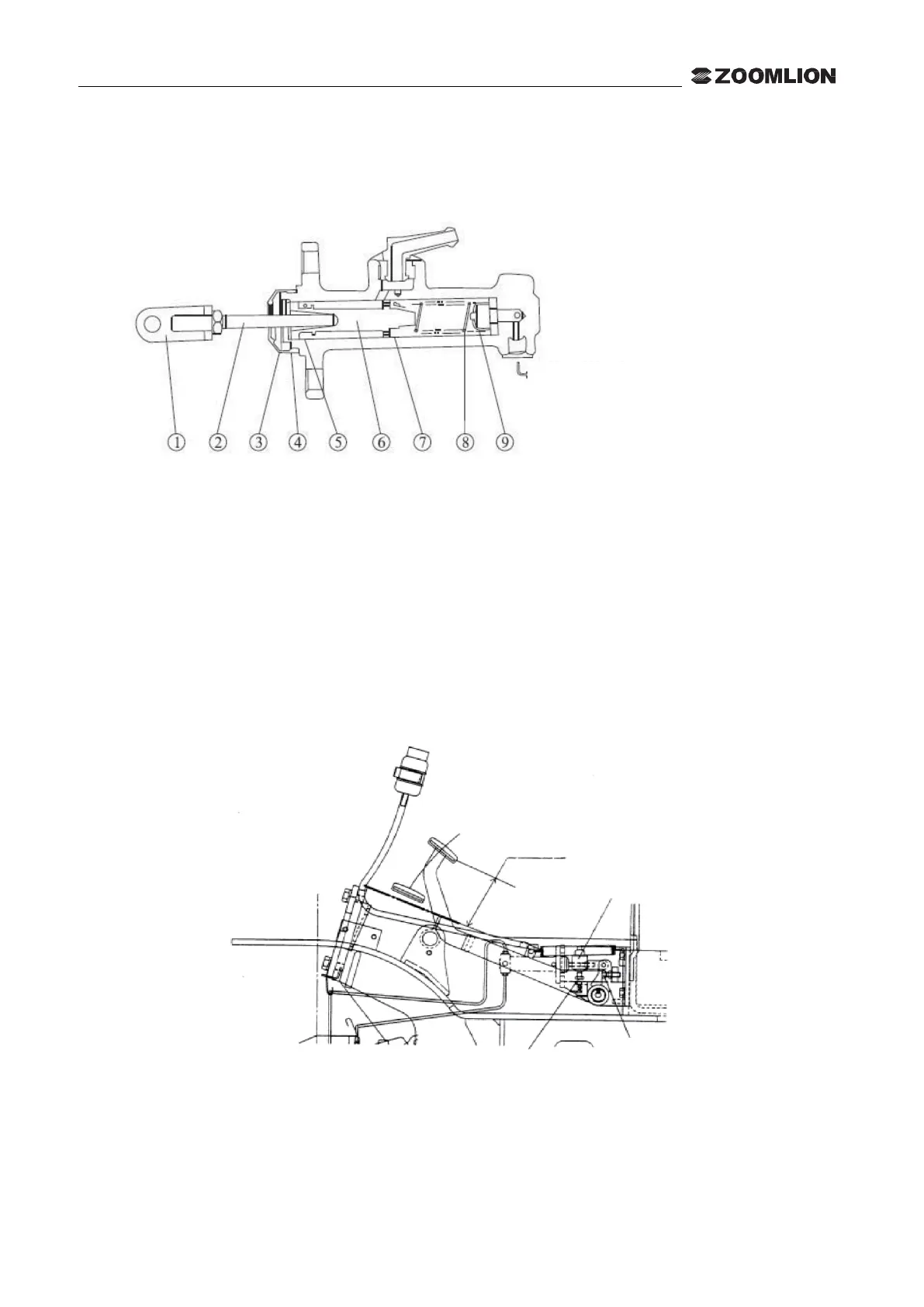

Fig. 4-8 Brake master cylinder
4.3.3 Adjustment of brake pedal
(1) Shorten the push rod;
(2) Adjust the lock bolt like the pedal height as adjusted in Fig.4 9;
(3) Depress the brake pedal, adjust the push rod until the front end of push rod touches the piston of master
cylinder;
(4) Tighten the lock nut of push rod.
Fig. 4-9
