ZE205E/ZE230E OPERATION MANUAL
Basic operation techniques of
the excavator
2.When the track frame faces backward, the machine moves in reversing direction in way of
traveling forward and forward direction in way of reverse traveling.
3. Check if the track frame faces forward or backward before using the traveling lever. (If the
sprocket is in the rear, the crawler frame faces forward.)
4. When pedal is used for controlling
operation and traveling, particular attention
should be paid.
The lever ③ shown in Figure 3-83 is used to
change the machine’s traveling direction (when the
front of the superstructure is in the same direction
with the idler), as shown in Figure 3-87. The
following is the description for pedal operation.
(a) Traveling forward: move the lever forward
(tilt the pedal forward).
(b) Reverse: move the lever backward (tilt the
pedal backward).
(c) N (neutral): the machine stops.
3.4 Cab accessories operating instructions
3.4.1 Ashtray
The ashtray is in the right front side of the cab. Be sure to put out the cigarette before putting it into the
astray and then close the lid.
3.4.2 Air conditioner
3.4.2.1 Precautions for using the air conditioner
1. The air conditioner should be started when the engine is running at low speed. Do not start
the air conditioner when the engine is running at high speed, for this will cause damage to the air
conditioner.
2. If water enters into the control panel of the A/C, accidental failures may occur. Therefore, be
careful not to allow water to enter into these parts. Besides, do not expose these parts to open flame.
a) When using the A/C, the cab should be kept ventilated:
Smoking when the A/C is on is bad for eyes, so you should open the window for ventilation and activate
the cooling system of A/C for a while to exclude the smoke.
When the A/C has run for a long time, ventilate the cab and activate the cooling system of A/C once per
hour.

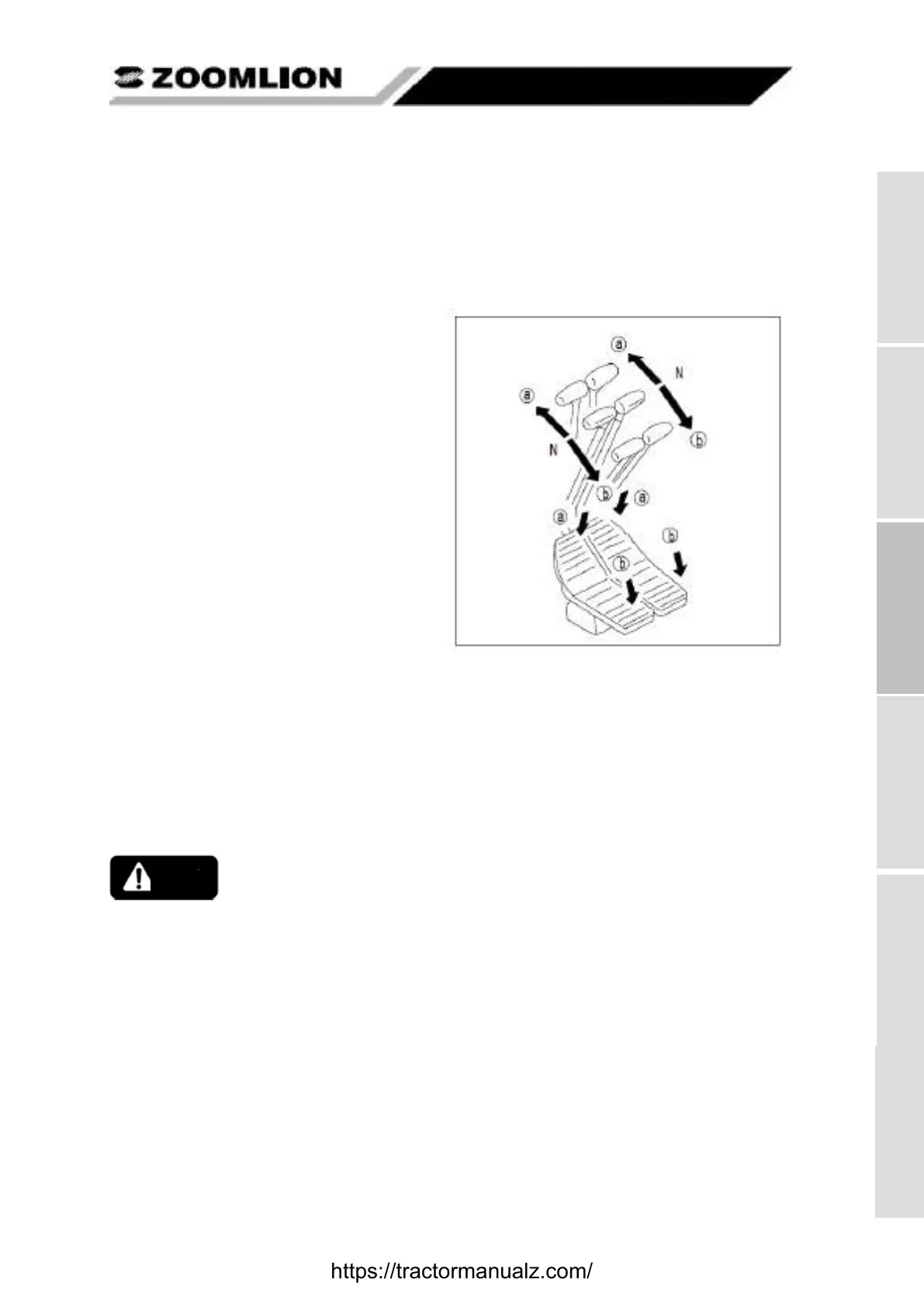

Figure 3-87 traveling lever and pedals
