ZE205E/ZE230E OPERATION MANUAL
Basic operation techniques of
the excavator
3.4.5.3 Lock
3.4.5.3.1 Door lock

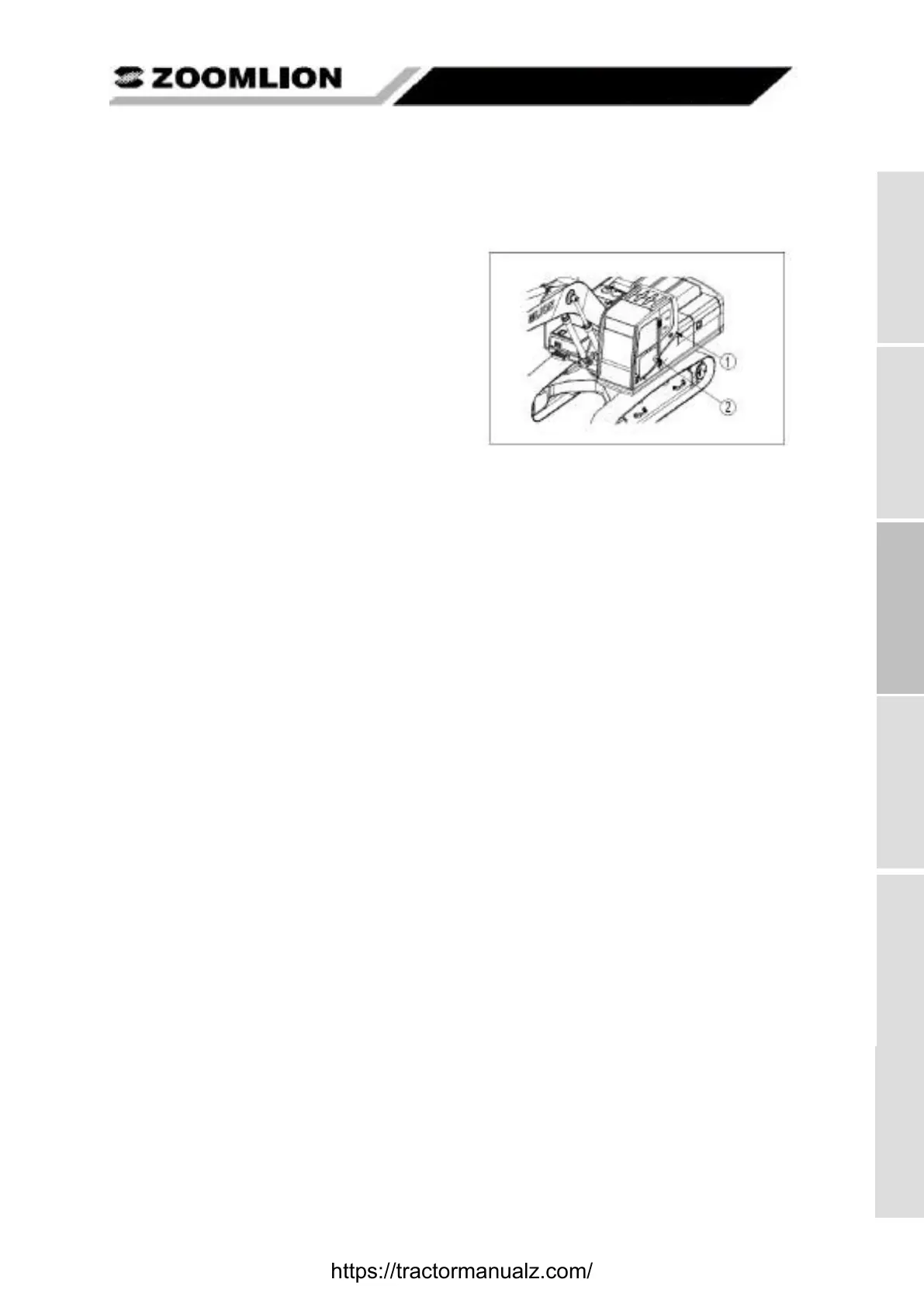

When the door is opened, use the door lock as
shown in Figure 3-97 to fix the door in place (1).
a). Push the door to the direction of the lock pin (1)
to fix the door in place.
b). When opening the lock, press the button (2)at the
left side of the driver's seat to open the lock pin.
c). Fix the door firmly to the lock pin.
3.4.5.3.2 Caps and covers with locks
Locks are fixed at the injection ports of the fuel tank and hydraulic oil tank, driver’s cab, engine cover,
battery cover as well as left and right doors of the machine. These caps, doors and covers can be opened by
keys. The keys should be fully inserted to the end before being turned, otherwise it may break
The steps for opening and locking the caps with locks:
a) For opening:
1). Insert the key into the key slot.
2). Turn the key counterclockwise, align the key slot with the mark on the cap and then open it.
b) For locking
1). Screw the cap on and then insert the key into the key slot
2). Turn the key clockwise as shown in Figure 3-98 and then remove the key.
3.4.5.3.3 Methods for opening and locking covers with locks
a) Open the cover (locked cover):
1). Insert the key into the key slot.
2) Turn the key and pull the cover handles to open the cover.
b) Lock the cover:
1). Screw the cover, and put the key into the key slot.
2). Turn the key clockwise and then remove the key.
3.5 Power supply and fuse
