ZE205E/ZE230E OPERATION MANUAL
Basic operation technique of
the excavator

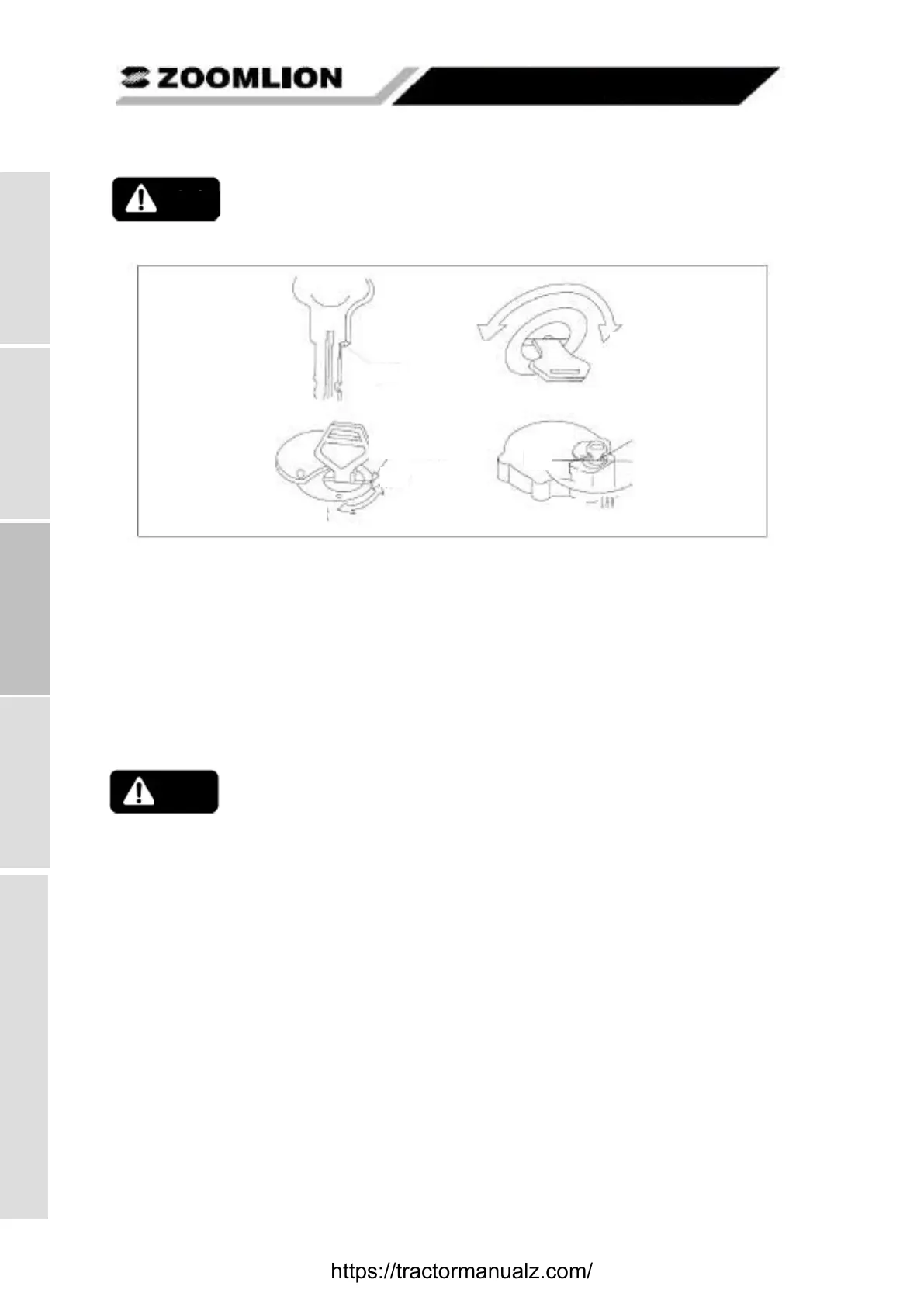

Figure 3-98 Open or lock the caps and covers with locks
1. The supply voltage is 24V. It cannot be used as the power for 12V electrical appliances, for
damage to these electrical appliances will be caused.
2. The cigarette lighter can be removed to supply the power with the max. loading power of
85W. The maximum power of the cigarette lighter is 85W（24V×3.5A ）
3.5.1 Fuse safety notice
1. Before replacing fuses, be sure to turn the starter switch to OFF position.
2. Fuses are located in the interior trim parts at the rear of the cab.
3. Fuses prevent electrical equipment and wires from getting burnt.
4. If any fuse corrodes or you can see white powder on it or any fuse is loose in the fuse holder,
you should replace it.
5. Replace any fuse with one with the same capacity.
3.5.2 Fuse capacity, circuit names and the relay names
Fuse capacity, circuit names and the relay names are shown in Figure 3-99.
Align with the mark
on the cover
