.A. REMOVAL OF THE REAR SHIFT
MECHANISM
You will need to remove the rear shift
mechanism to lube the shifting rod, to
change the gear cable or tighten the axle
nut. Loosen the rear shift assembly bolt
until the shift mechanism can be pulled
sidewards exposing the RH side axle nut.
B. ADJUSTMENT OF THE SHIFT
BARRELL
If the bike is not shifting smoothly you will
need to adjust the shift barrel. The yellow
indicator should be set so it is between
the two white lines as indicated below.

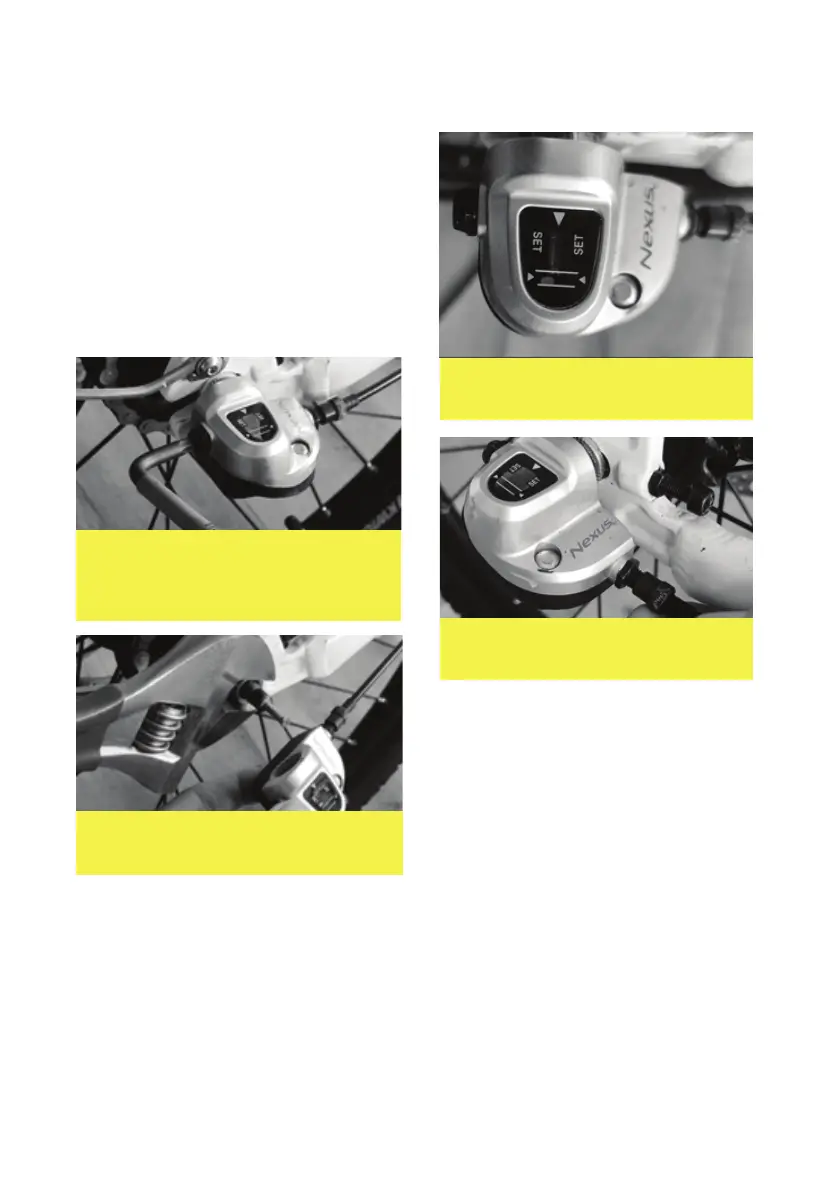

ADJUSTING THE GEAR MECHANISM
Figure 16: Turn the m5 shifter nut
anti-clockwise. After a few rotations
the mechanism pulls o
Figure 17: Adjustment of axle
nut drive side
Figure 18: Correct
alignment indication
Figure 19: Adjust the barrel by
turning either way
If the indicator cannot be located
between the two lines, or the barrel has
been adjusted all the way out you will
need to have the cable length checked
or replaced by a qualied mechanic.
Further detail on cable length adjustment,
as well as servicing of the Shimano IGN
components can be found in Shimano
document number SM-IGH-INTER3-ENG
