zortrax M300 Manual Platform Calibration

Distance Corrections

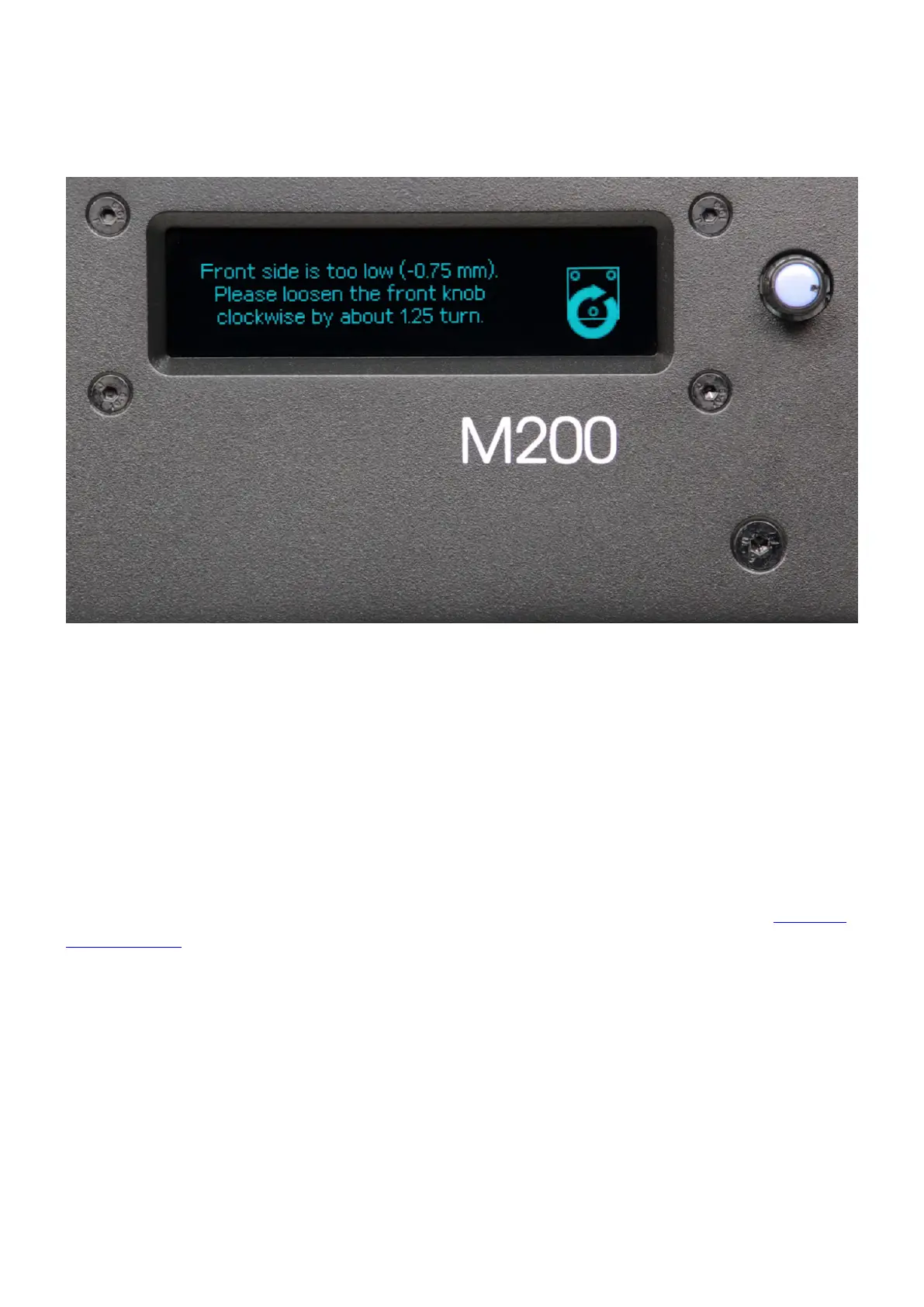

If the printer detects an incorrect distance, it will display instructions on what adjustments
should be made.
Once you’ve tightened/loosened the screws, push the knob and the printer will recheck
the distances.
When the proper distance for all the points on the plate is set, the printer will finish the
calibration and display the calibration results.
If calibration values reach results below -0.4 or above 0.4, you need to perform platform
maintenance.

zortrax M300 Specifications

General

Build Volume	300 x 300 x 300 mm
Filament Diameter	1.75 mm
Nozzle Diameter	0.4 mm
Connectivity	SD Card
Operating System	Windows, macOS
Software	Z-SUITE
Printing Speed	up to 100 mm/s
Heated Bed	Yes
Nozzle Temperature	up to 290°C
Supported File Formats	.stl, .obj, .dxf, .3mf
Supported Materials	Z-ULTRAT, Z-HIPS, Z-GLASS, Z-PETG
Power Supply	100-240 V, 50/60 Hz
