Lower Long Belt Replacement
UNSCREWING THE BELT TENSIONERS

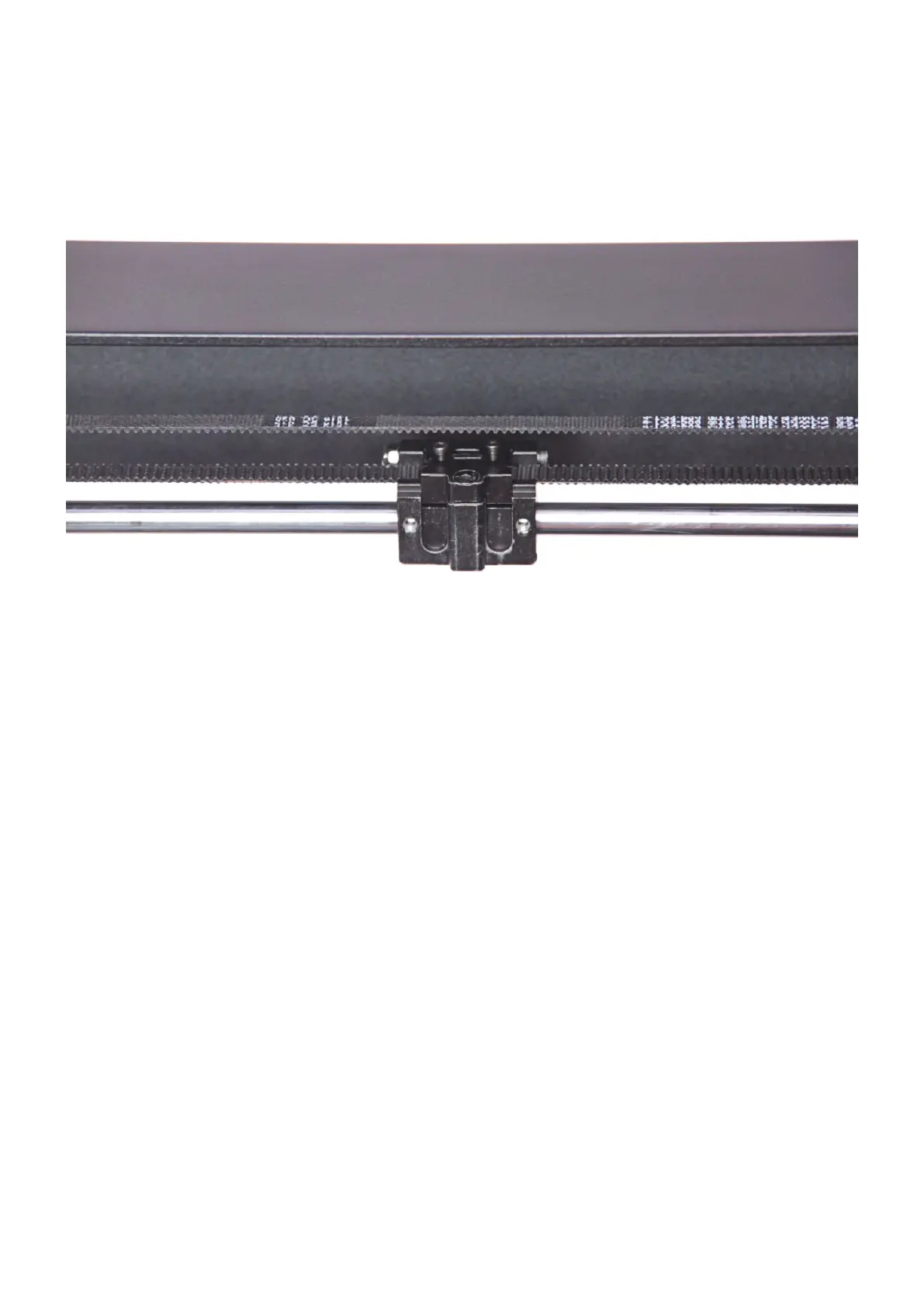

Unscrew the screw that secures the belt tensioner on the belt to be replaced and remove
the belt from the block.
The Y axis belt tensioners are placed on top of the Y axis blocks, whereas the X axis
belt tensioners are placed on the bottom of the axis blocks.
LOOSENING THE SCREWS ON THE SELF-ALIGNING BEARINGS
