10
Intel H55 series Motherboard
Installing the CPU Fan
There are many different fan types that can be used with this motherboard. Follow the
instruction that came with your fan assembly. Be sure that the fan orientation is correct
for your chassis type and your fan assembly.
Installing Memory DIMMs
Your new motherboard has two 1.5V 240-pin slots for DDR3 memory. These slots
support 1 GB/2 GB/4 GB DDR3 technologies. They also support dual channel DDR3
memory technology up to 10.7 GB/s. There must be at least one memory bank popu-
lated to ensure normal operation. Refer to the following recommendations to install
memory DIMMs.

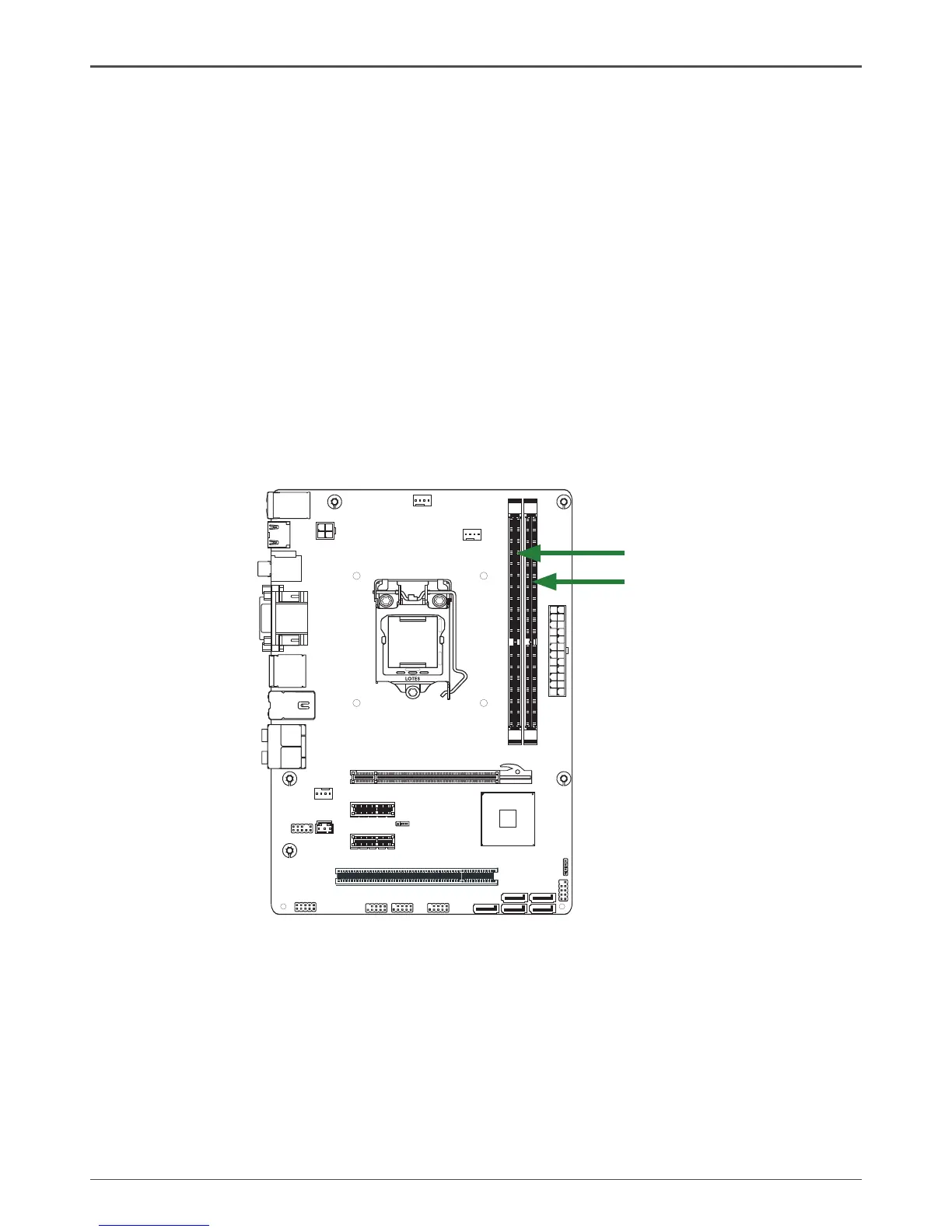

q One DIMM: Install it into slot 1 or 2. You can install the DIMM into any slot,
however, slot 1 is preferred.
q Two DIMMs: Install them into slot 1 and slot 2.
Refer to the following procedure to install memory DIMMs into the slots on the
motherboard. Note that there is only one gap near the center of the DIMM slot. This
slot matches the slot on the memory DIMM to ensure the component is installed
properly.
1. Unlock a DIMM slot by pressing the module clips outward.
2. Align the memory module to the DIMM slot, and insert the module vertically into
the DIMM slot. The plastic clips at both sides of the DIMM slot automatically lock
the DIMM into the connector.
