Zotac H55 series

16
Intel H55 series Motherboard

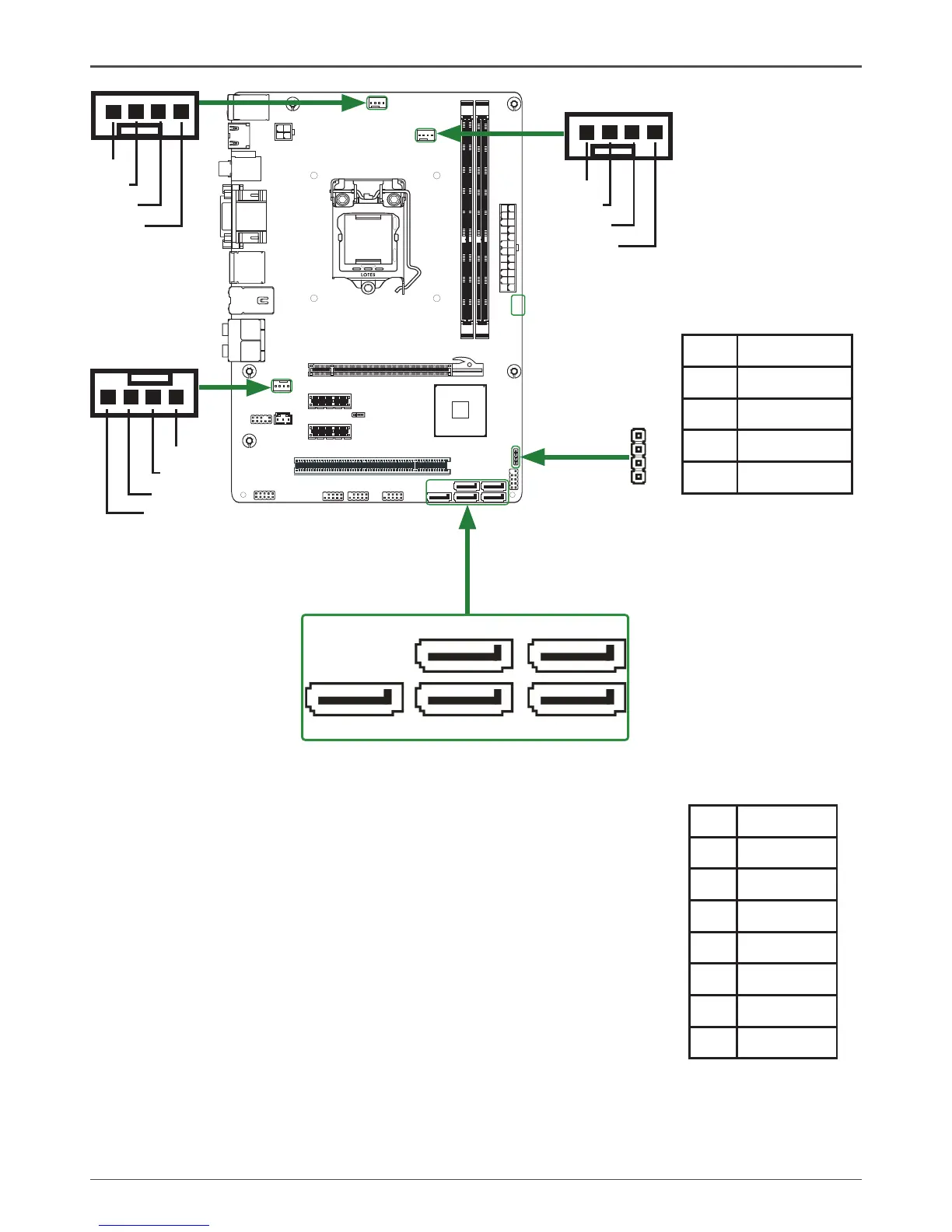

Speaker Header-SPK1
Serial-ATA (SATA) Connectors (SATA1~5)
The Serial ATA connector is used to connect the Serial
ATA device to the motherboard. These connectors
support the thin Serial ATA cables for primary storage
devices. The current Serial ATA interface allows up to
300 MB/s data transfer rate. There are six serial ATA
connectors on the motherboard that support AHCI
conguration.
SPK1-Pin Denition
PIN Assignment
1 VCC
2 NC
3 NC
4 SPK-
SATA-Pin Denition
Pin Signal
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
Fan Connectors
There are three fan connectors on the motherboard,
including system fan connectors-SYSFAN1 and
SYSFAN2, CPU fan connector-CPUFAN1.
SPK1
1
120
240
121
120
240
121
1.5V 1.5V
115 XL M
LGA 1156
REM OVE
LOT ES
CPUFAN1
SYSFAN1
GND
+12V
Sense
Control
GND
+12V
Sense
Control
SYSFAN2
GND
+12V
Sense
Control
SATA2
SATA4
SATA5 SATA3
SATA1
