Hardware Installation

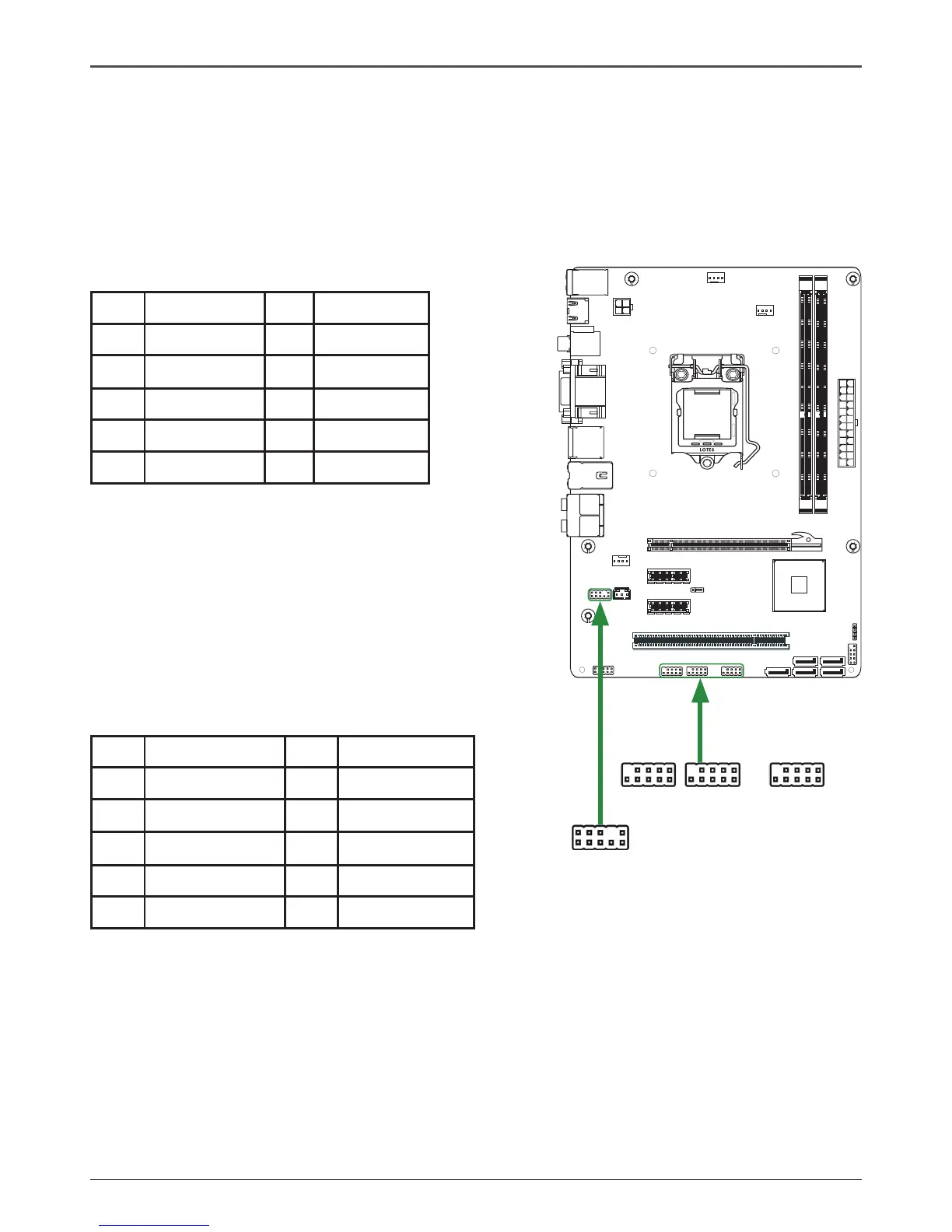

USB Headers-FP_U1~FP_U3
This motherboard contains six USB 2.0 ports that are exposed on the rear panel of
the chassis. The motherboard also contains three 10-pin internal headers connector
onboard.
Note: Secure the bracket to either the front or rear panel of your chassis (not all
chassis are equipped with the front panel option).
Front Panel Audio Header-FP_S1
The audio connector supports HD audio standard
and provides two kinds of audio output choices:
the Front Audio, the Rear Audio. The front Audio
supports retasking function.
Note:
In order to utilize the front audio header, your chassis must have front audio
connector. Also please make sure the pin assignment on the cable is the same
as the pin assignment on the mainboard header. To nd out if the chassis you
are buying supports a front audio connector, please contact your dealer.
FP_U1~FP_U3-Pin Denition
PIN Assignment PIN Assignment
1 VCC 2 VCC
3 USBP0- 4 USBP1-
5 USBP0+ 6 USBP1+
7 GND 8 GND
9 KEY 10 NC
FP_S1-Pin Denition
PIN Assignment PIN Assignment
1 MIC2(L) 2 GND
3 MIC(R) 4 -ACZ-DET
5 Front Audio(R) 6 Reserved
7 FAVDIO-JD 8 Key(No pin)
9 Front Audio(L) 10 Reserved
