15
Hardware Installation

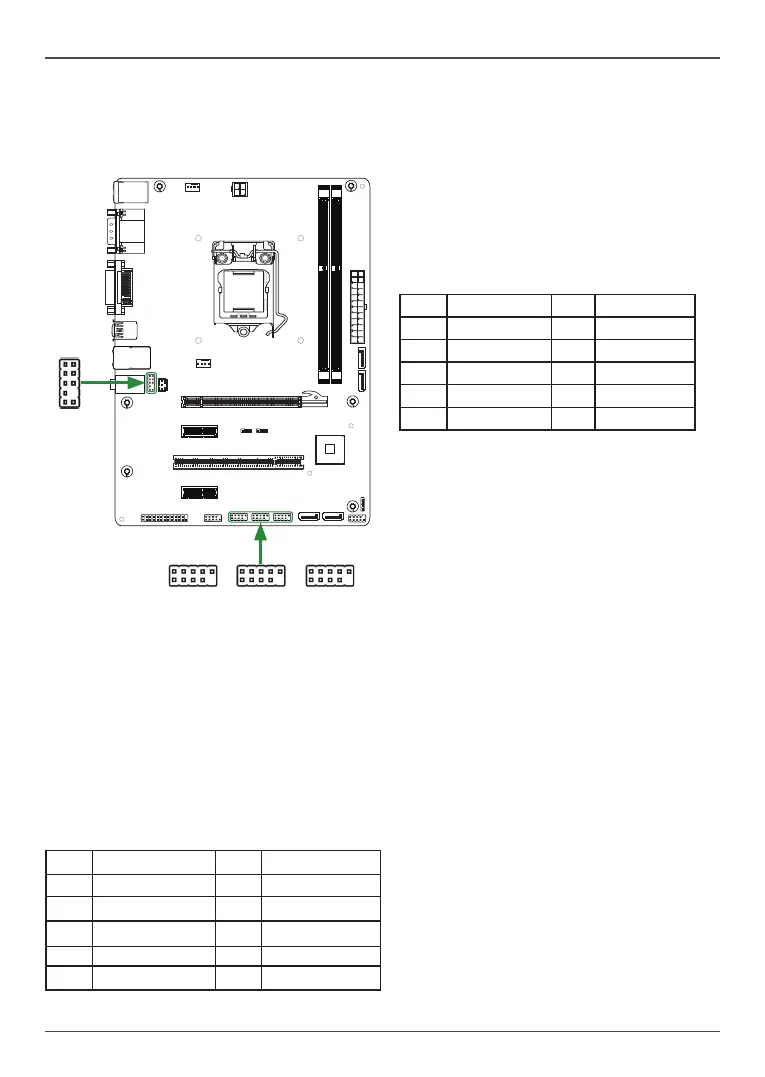

USB Headers-FP_U1/2/3
This motherboard contains two USB 2.0 and two USB 3.0 ports that are exposed on the rear
panel of the chassis. The motherboard also contains three 10-pin internal USB 2.0 headers
onboard.
Front Panel Audio Header-AFP_S1
The audio connector supports HD audio standard and provides two kinds of audio output choices:
the Front Audio, the Rear Audio. The front Audio supports retasking function.
Note:
In order to utilize the front audio header, your chassis must have front audio connector.
Also please make sure the pin assignment on the cable is the same as the pin assignment
on the mainboard header. To nd out if the chassis you are buying supports a front audio
connector, please contact your dealer.
FP_U1/2/3-Pin Denition
PIN Assignment PIN Assignment
1 VCC 2 VCC
3 USBP0- 4 USBP1-
5 USBP0+ 6 USBP1+
7 GND 8 GND
9 KEY 10 NC
AFP_S1-Pin Denition
PIN Assignment PIN Assignment
1 MIC2(L) 2 GND
3 MIC(R) 4 -ACZ-DET
5 Front Audio(R) 6 Reserved
7 FAVDIO-JD 8 Key(No pin)
9 Front Audio(L) 10 Reserved
Note: Secure the bracket to either the
front or rear panel of your chassis (not all
chassis are equipped with the front panel
option).
120
240
121
120
240
121
1.5V
1.5V
115XLM
LGA1156
REMOVE
LOTES
1
AFP_S1
1
FP_U1
1
FP_U2
1
FP_U3
