Hardware Installation
PCIe x16 Slot-PCIE1
There is one PCIe x16 slot reserved for graphics card. It is fully compliant with PCIE 2.0
specication.
PCIe x1 Slot-PCIE2/3
There are two PCI Express x1 slots that are designed to accommodate less bandwidth intensive
cards, such as a modem or LAN card.
PCI Slot-PCI1
The PCI slot supports cards such as a LAN card, USB card, SCSI card and other cards that
comply with PCI specications.

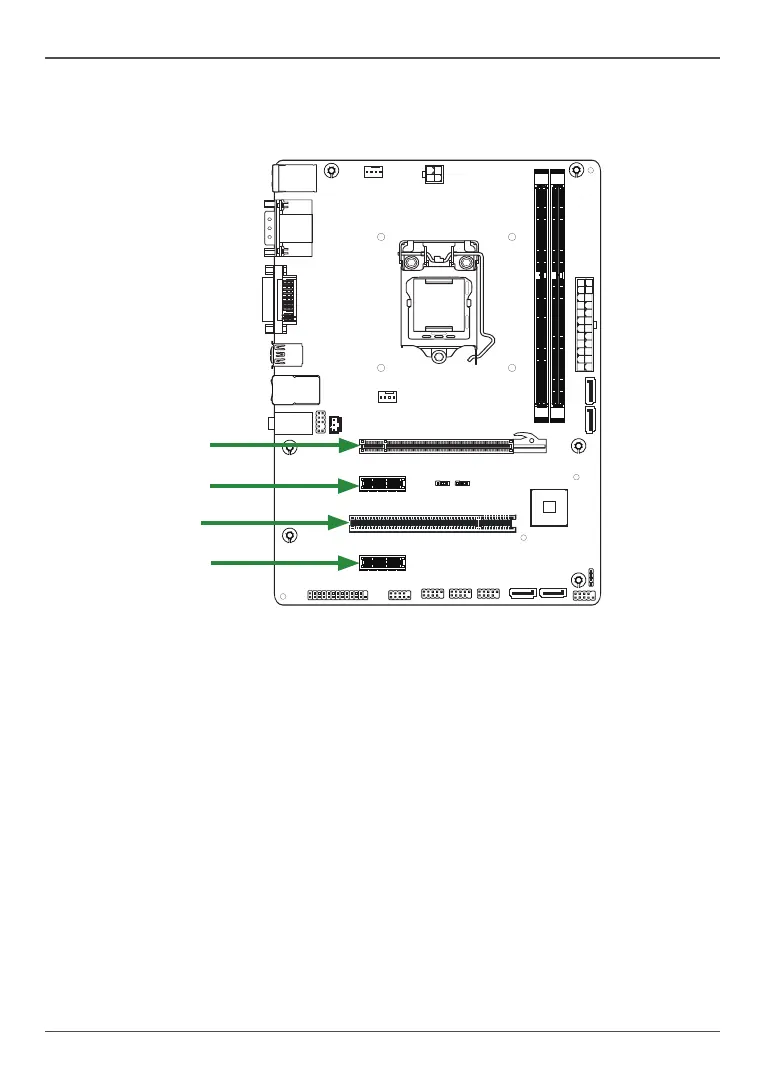

Expansion Slots
The motherboard contains four expansion slots, one PCIe x16 slot, two PCIe x1 slots and one
PCI slot.
