Zotac ZBOX nano ID61 PLUS

14
ZOTAC ZBOX nano

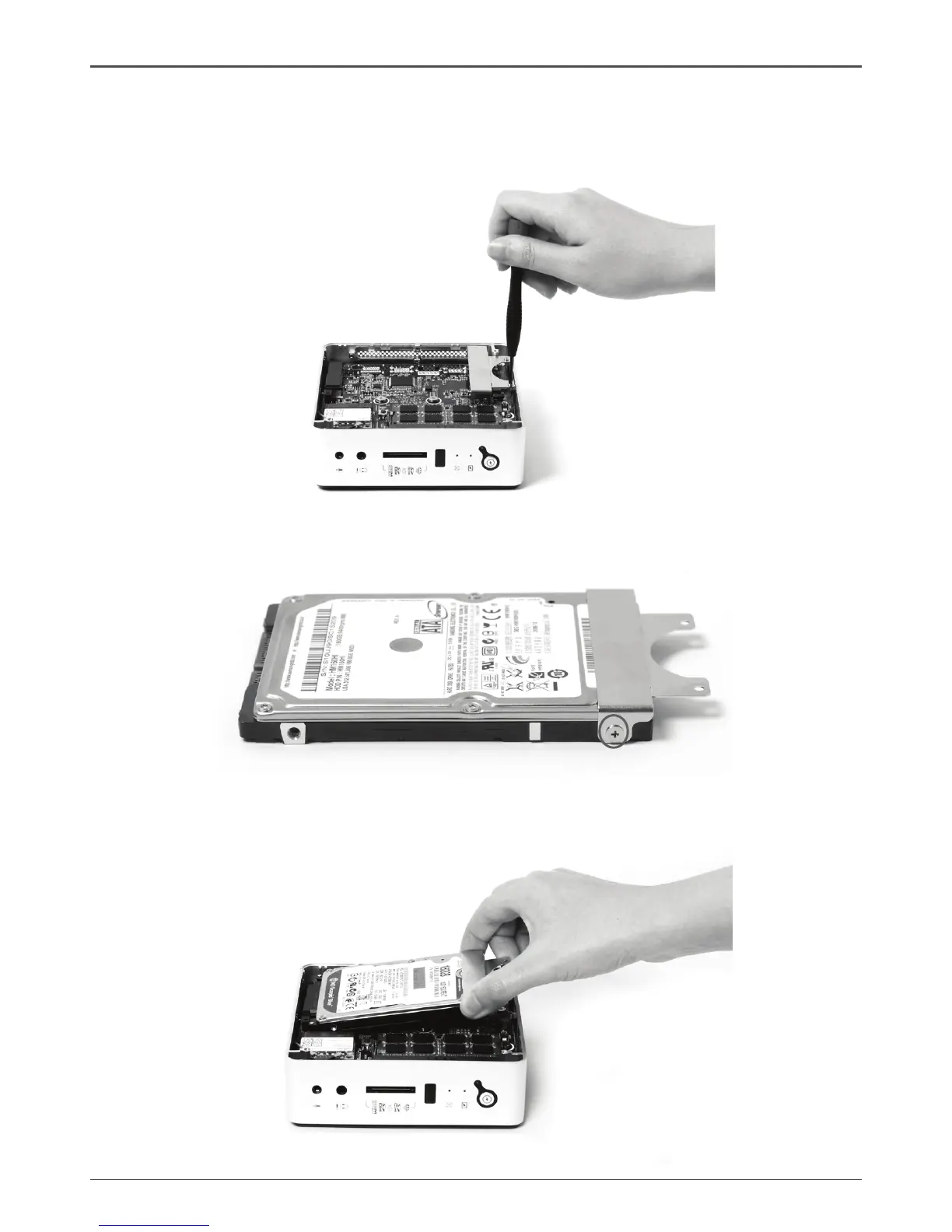

2. Install the hard disk bracket to a 2.5-inch SATA hard disk with 2 screws.
3. Insert the hard disk into the socket and gently slide into the connector.
Installing a hard disk
1. Locate the hard disk bracket, remove the 2 screws, and remove the hard disk
bracket as shown in the image below.
