Internet User Guide, ZTE H298N Last amended: 21/10/2014
7
LAN4 LAN3 LAN2 LAN1 WAN PhoneReset WPS
WLAN
USB2
PowerOn/Off
LAN4 LAN3 LAN2 LAN1 WAN PhoneReset WPS
WLAN
USB2
PowerOn/Off
LAN
PORT
(1-4)
INTERNET
PORT 1
BLUE
WAN PORT
INTERNET
PORT

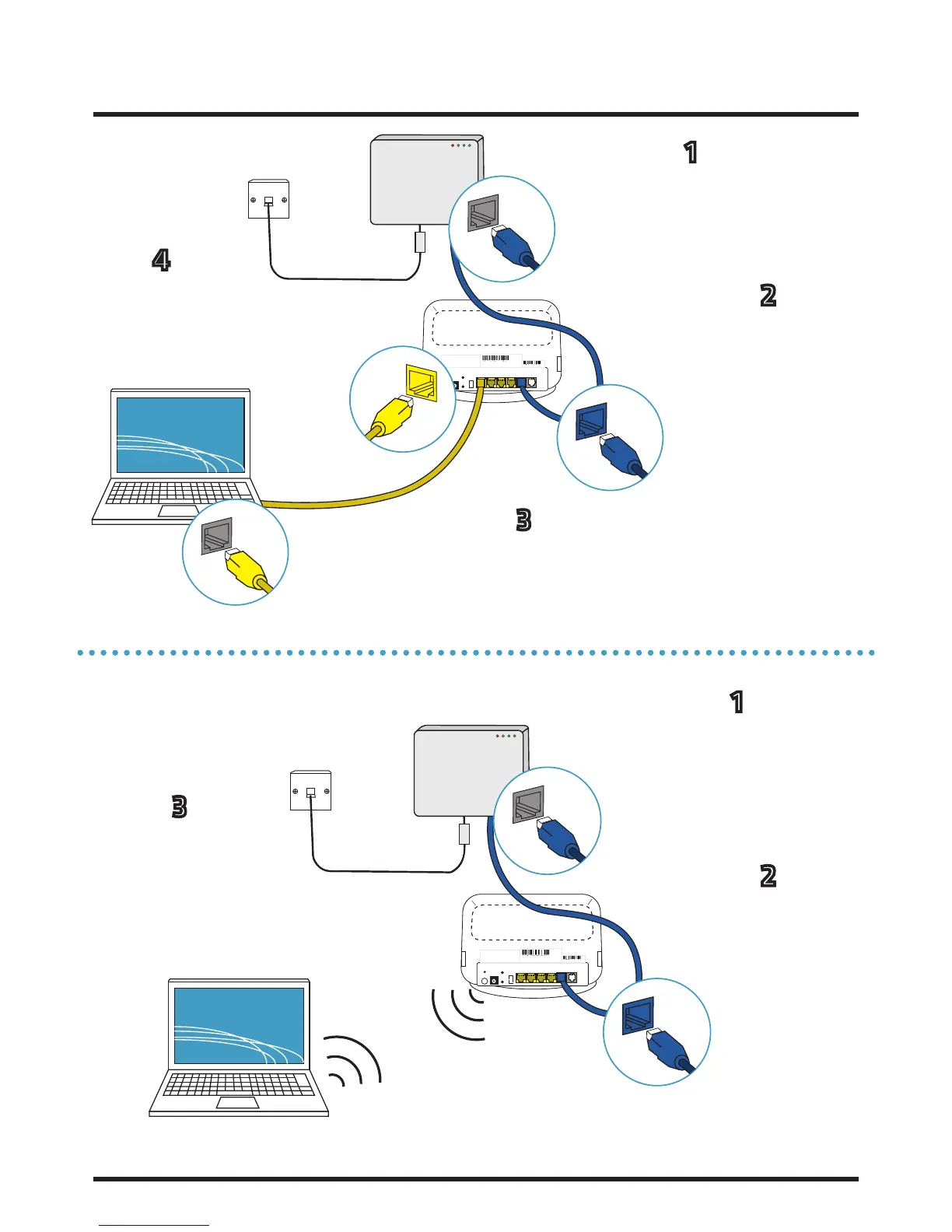

2.1 A ‘Wired’ Connection
2.2 A ‘Wireless’ Connection
LAN4 LAN3 LAN2 LAN1 WAN PhoneReset WPS
WLAN
USB2
PowerOn/Off
LAN4 LAN3 LAN2 LAN1 WAN PhoneReset WPS
WLAN
USB2
PowerOn/Off
INTERNET
PORT 1
BLUE
WAN PORT
Insert an Ethernet
cable into internet
port 1 of the ONT
Take the other end of
the cable and insert
into the Blue WAN
port of your router
Take another Ethernet
cable and insert into
any of the routers LAN
ports (1-4)
Take the other end of
the cable and insert into
the internet port of your
internet enabled device
1
2
3
4
You will now be able
to find the wireless
network and connect. For
information on how to do
this, see 6. Connecting to
Wireless Networks.
Insert an Ethernet
cable into internet
port 1 of the ONT
Take the other end of
the cable and insert
into the Blue WAN
port of your router
1
2
3
