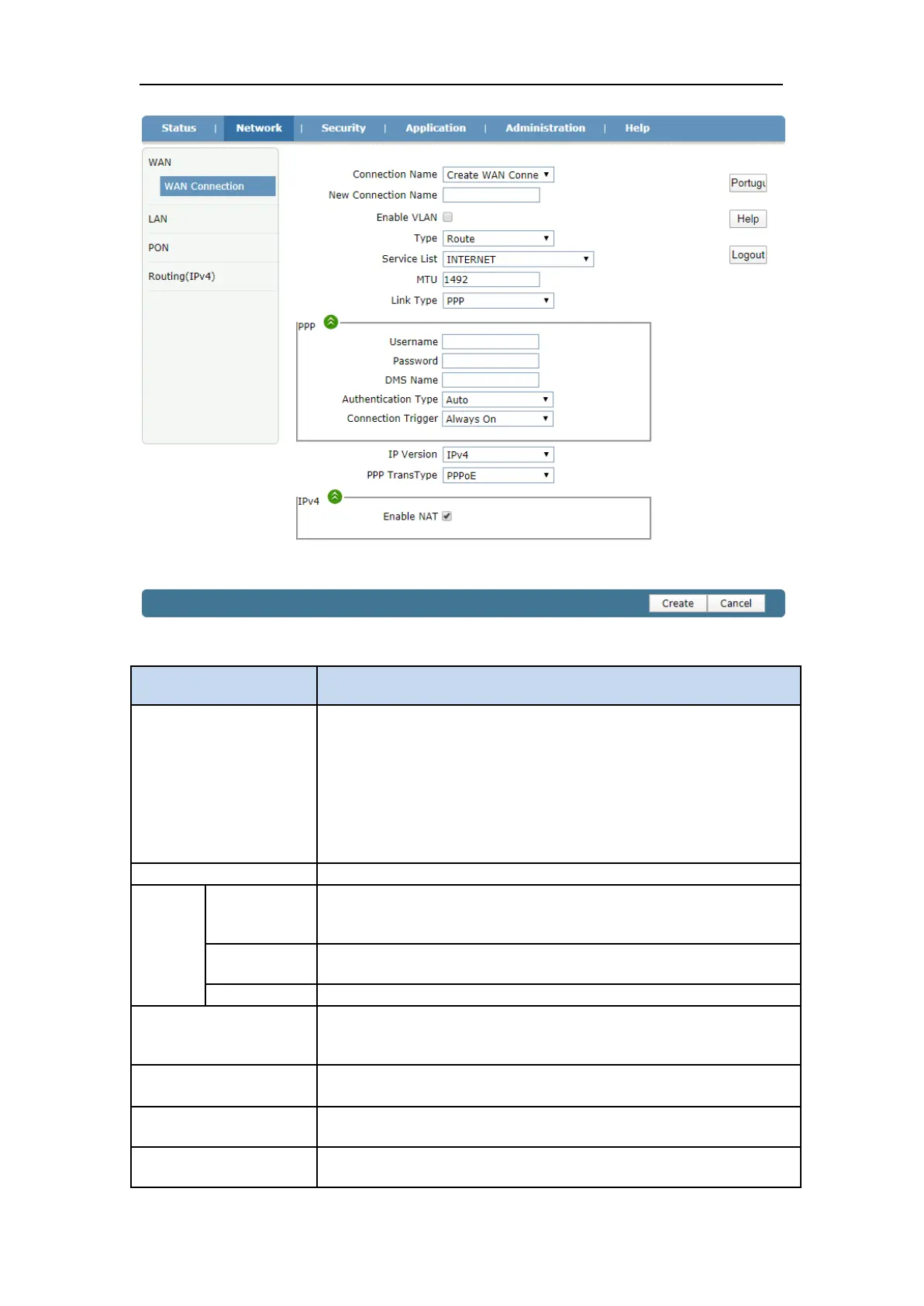

Figure 3-7: WAN Connection
The list of WAN connection name that has been created.
If you want to create a new WAN connection, please select “Create
WAN Connection” and input other Parameter at the same time and
then click “Create” button. If you want to edit WAN connection,
please select the wan connect name you want to edit and change
some Parameter and then click “Modify” button. If you want to
delete one connection, please select the wan connection you want to
delete and then click “Delete” button.
Name of new connection that you want to create.
Checked indicates the packets are transmitted by the PON port take
VLAN tag. Unchecked indicates the packets are transmitted by the
PON port don’t take VLAN tag.
Input the VLAN ID you want to set. Range is 0~4094. Input 0
means don’t use any VLAN.
Select VLAN priority you want to set. Range is 0~7.
Bridge/Route. There is only Route mode can be selected. The
device works on route mode with this WAN connection. If you want
it to work on bridge mode, don’t configure any WAN connection.
Service mode indicates what the wan connection is used for.
There is only INTERET can be selected.
Max transfer unit. Default Value (in Byte):
1500(static/DHCP) or 1492(PPPoE).
PPP/IP. PPP is used for PPPoE, and IP is used for static IP or
DHCP.
