1GE Dual Mode ONU User Manual
Figure 3-25: IGMP Basic Configuration

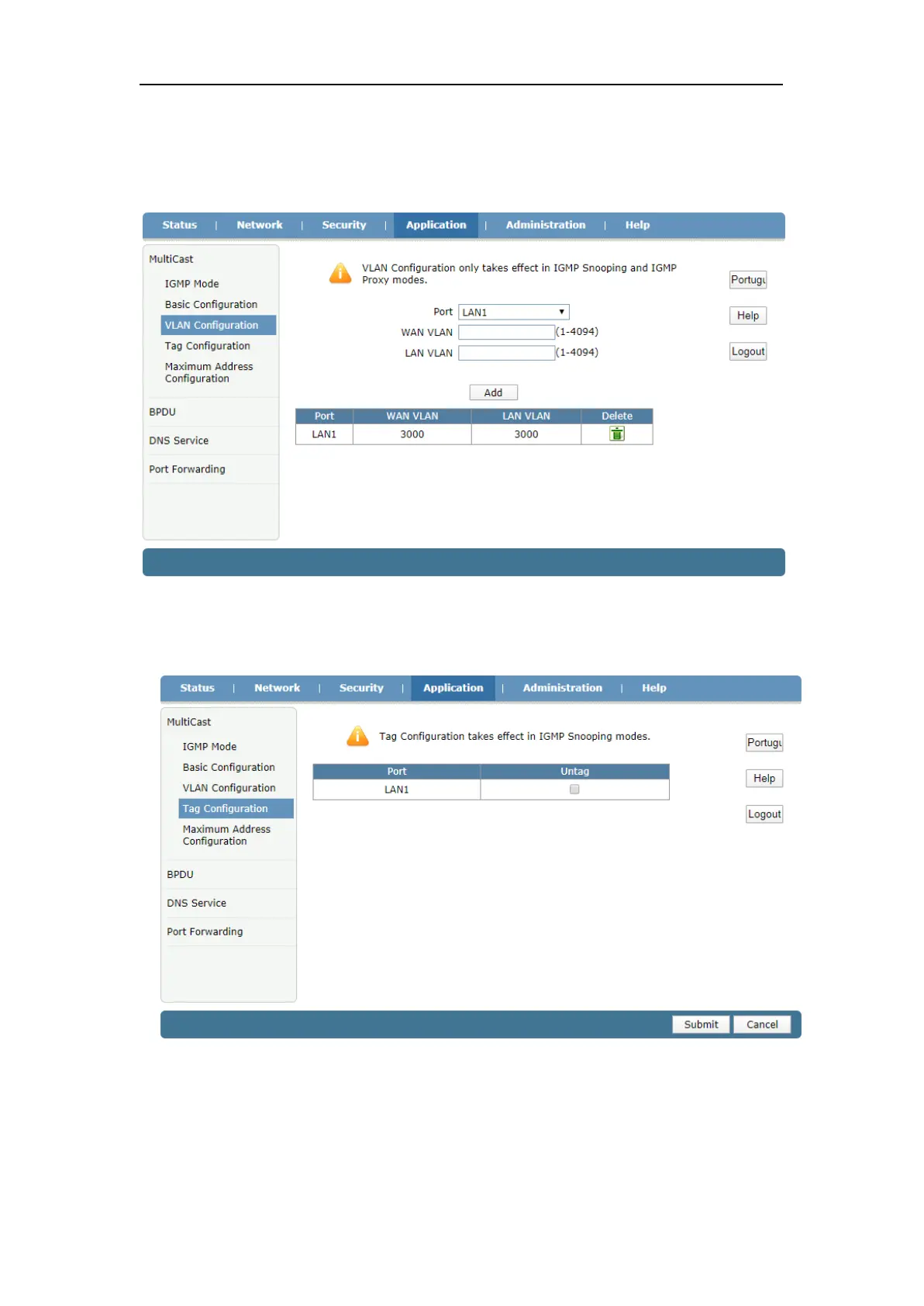

3.5.1.3 VLAN Configuration
This page allows user to configure multicast VLAN for the port. If WAN VLAN is not the
same as LAN VLAN, it means multicast VLAN will be translated.
Figure 3-26: Multicast VLAN
3.5.1.4 Tag Configuration
This page allows user to configure multicast VLAN untag mode.
Figure 3-27: Tag Configuration
3.5.1.5 Maximum Address Configuration
This page allows user to configure maximum multicast address.
