ZXHN H168N User’s Manual
12
Function Color Status Definition
ON
WAN port is in
communication status.
Power Green/Red
OFF Power OFF.
Red
Power ON, HW Testing,
Firmware upgrading.
Green
Power ON, HW Test ok.
Rear panel

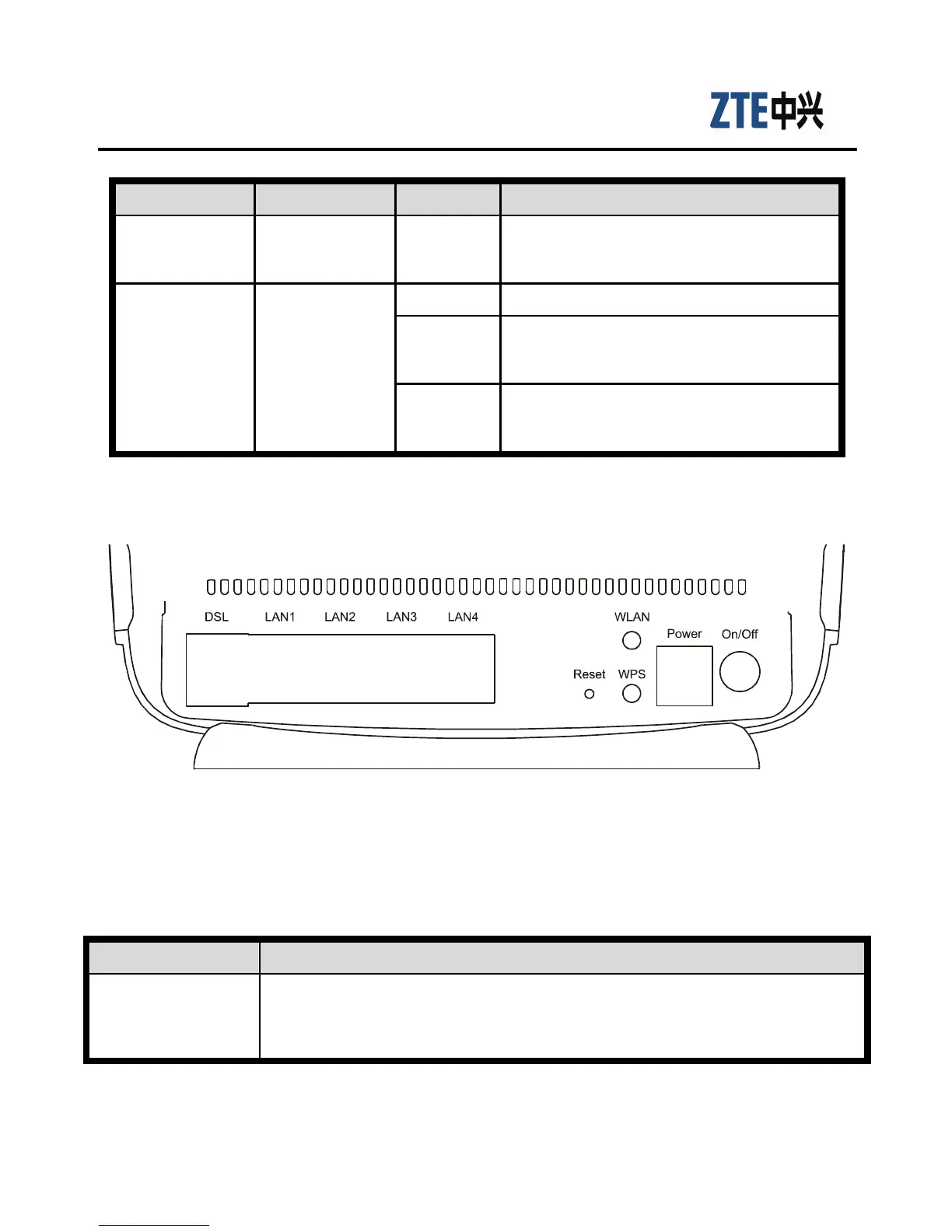

Figure 3.1-2 Rear Panel of the ZXHN H168N
Table 3.1-2 Description of Interfaces on the Rear Panel
Interface Function
DSL
RJ-11 port：Using the telephone line to connect the
modem with the VDSL2 cable or splitter.
