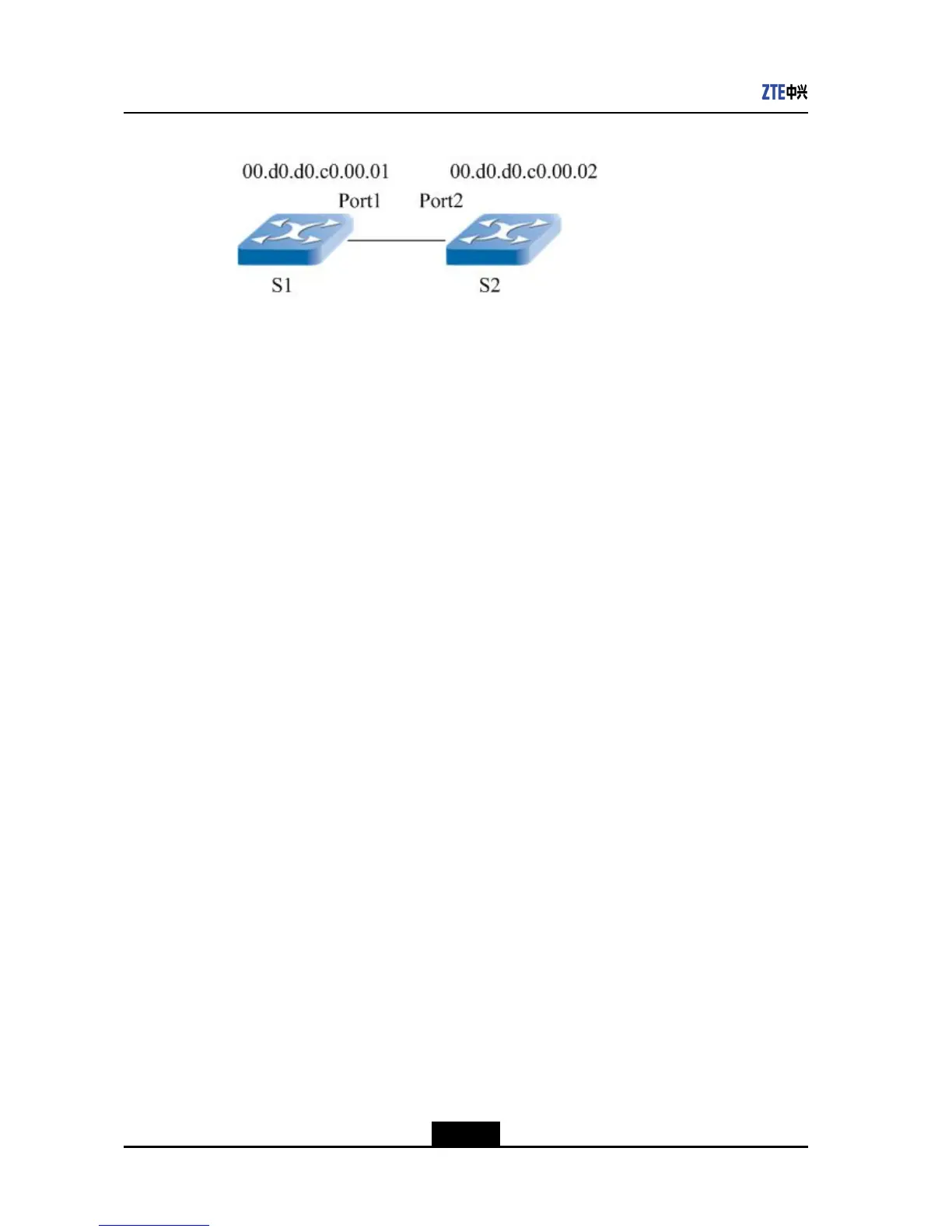

Figure4-58Single-DomainCFMNetworkWithoutMIP
lCongurationProcedure
CongurationonS1:
zte(cfg)#cfmenable
zte(cfg)#createcfmmd-session1namezte_1level5
zte(cfg)#createcfmmd-session1ma-session1namezte_zte_1
zte(cfg)#cfmmd-session1ma-session1primary-vlan100
zte(cfg)#createcfmmd-session1ma-session1mep-session1mep-id1
directiondown
zte(cfg)#cfmmd-session1ma-session1mep-id1stateenable
zte(cfg)#cfmmd-session1ma-session1mep-id1ccm-sendenable
zte(cfg)#cfmmd-session1ma-session1mep-id1ccm-receiveenable
zte(cfg)#cfmmd-session1ma-session1mep-id1assignport1
zte(cfg)#createcfmmd-session1ma-session1rmep-session2rmep-id2
remote-mac00.d0.d0.c0.00.02
zte(cfg)#cfmmd-session1ma-session1mep-id2ccm-receiveenable
CongurationonS2:
zte(cfg)#cfmenable
zte(cfg)#createcfmmd-session1namezte_1level5
zte(cfg)#createcfmmd-session1ma-session1namezte_zte_1
zte(cfg)#cfmmd-session1ma-session1primary-vlan100
zte(cfg)#createcfmmd-session1ma-session1mep-session1mep-id2
directiondown
zte(cfg)#cfmmd-session1ma-session1mep-id2stateenable
zte(cfg)#cfmmd-session1ma-session1mep-id2ccm-sendenable
zte(cfg)#cfmmd-session1ma-session1mep-id2ccm-receiveenable
zte(cfg)#cfmmd-session1ma-session1mep-id2assignport2
zte(cfg)#createcfmmd-session1ma-session1rmep-session2rmep-id1
remote-mac00.d0.d0.c0.00.01
zte(cfg)#cfmmd-session1ma-session1mep-id1ccm-receiveenable
NetworkCongurationWithMIP
lCongurationDescription
ThenetworkcongurationwithMIPreferstotheconnecteddevicesasshowninFigure
4-59.
4-142
SJ-20120409144109-002|2012-07-02(R1.0)ZTEProprietaryandCondential
