EAF Manual
EAF Manual EN V1.0.doc Version 1.0

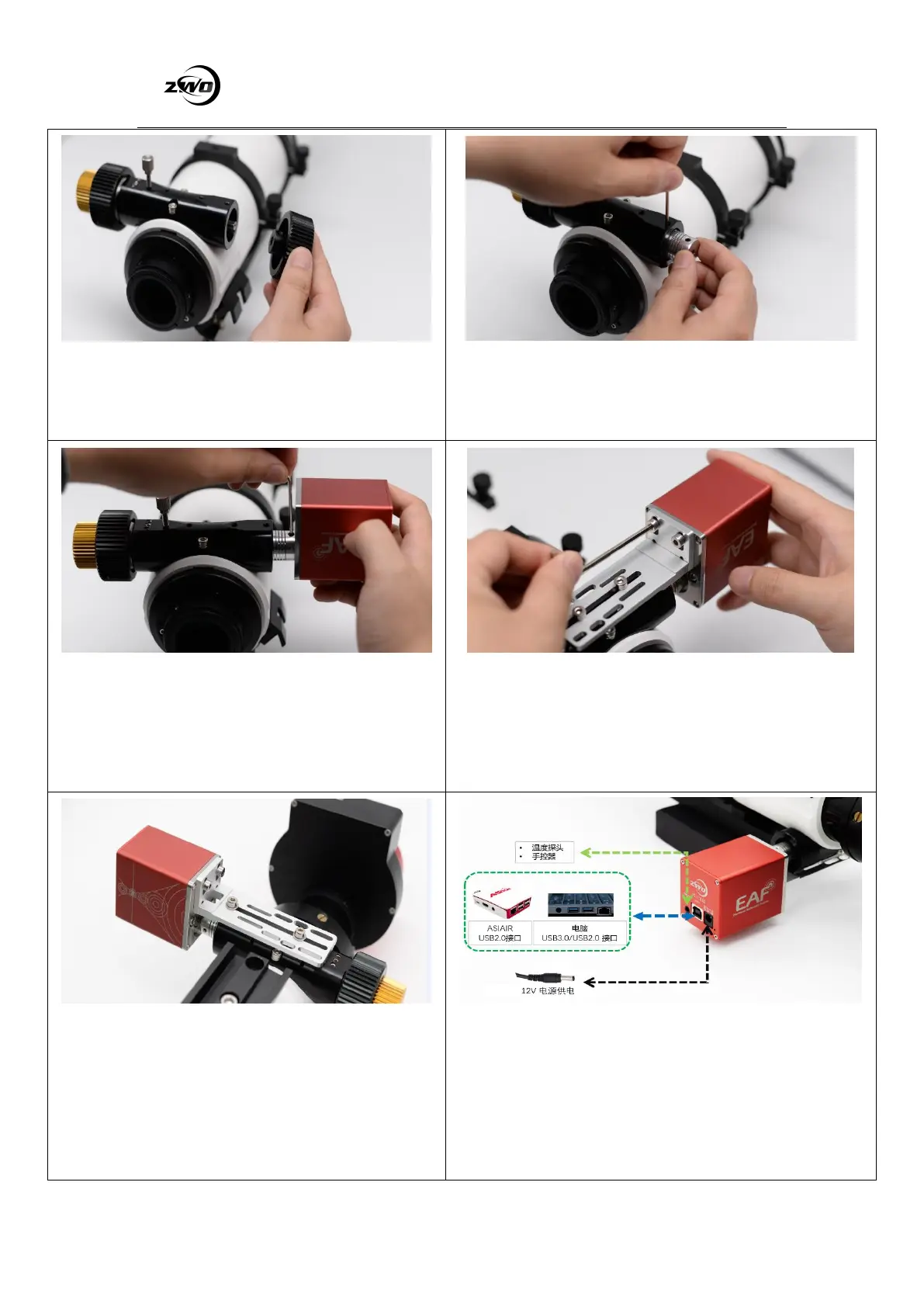

Remove the coarse adjustment knob of
the telescope focuser using a suitable
sized wrench
Install the flexible coupling on the
telescope focuser shaft and tighten the
lock screw
Attach the focuser body to the flexible
coupler and tighten the lock screw
using the supplied wrench
Secure the EAF body to the bracket and
the bracket to the matching mounting holes
in the focuser assembly using the supplied
screws
Check all the mounting bracket is
secure. This completes the hardware
installation of the EAF. Download and
install the required drivers from the
ZWO website as required.
Connect the EAF to a 12V power supply
and connect to the USB cable to a
computer or ASIAIR.
