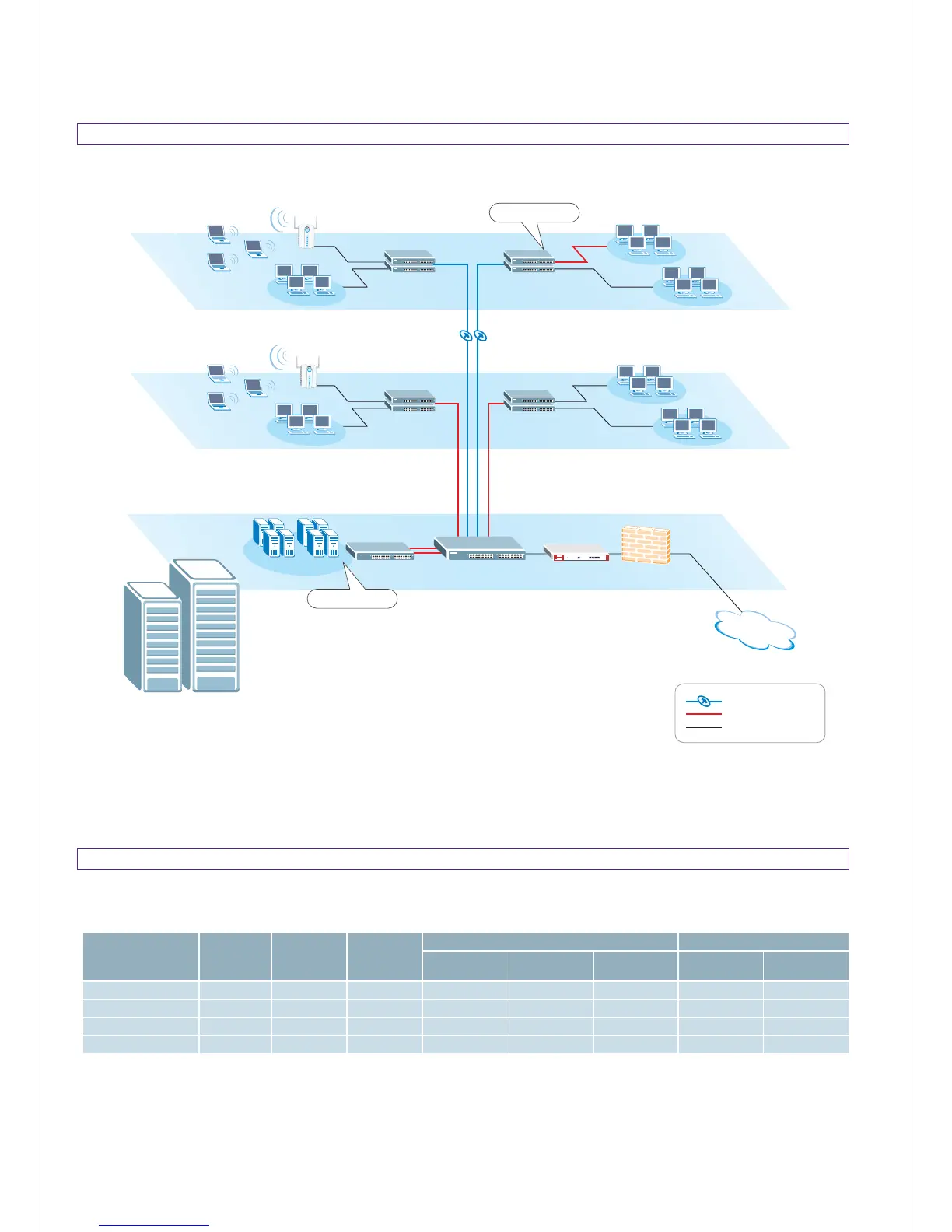

Application Diagram
Operational Information
Internet
Model Name
Optical
Wavelength Connector Receiver 62.5um 50um 9/10um
Supply Voltage Max Current
Sensitivity Multi-Mode Fiber Multi-Mode Fiber Single-Mode Fiber
SFP-SX -17 dBm 850nm LC 220 m 550 m - 3.15 ~ 3.45 V 300 mA
SFP-LX-10 -20 dBm 1310nm LC 550 m 550 m 10 km 3.15 ~ 3.45 V 300 mA
SFP-LHX1310-40 -23 dBm 1310nm LC - - 40 km 3.15 ~ 3.45 V 300 mA
SFP-ZX-80 -24 dBm 1550nm LC - - 80 km 3.15 ~ 3.45 V 300 mA
Transmission Distance vs. Fiber Cable Specification Operational Ranges
L3 Core Switch
Floor 1
Floor 2
Floor 3
GS-2024
Data Center
Firewall
Admin.
RD
RD
RD
Sales
AP
AP
Sales
GS-2024 GS-2024
GS-2024 GS-2024
1000Mbps/Fiber
1000Mbps/Copper
10/100Mbps/Copper
Gigabit to the Server
Gigabit Fiber Trunk
Gigabit Copper Trunk
Gigabit to the desktop
Transceiver (Optional)
