2. System Connection

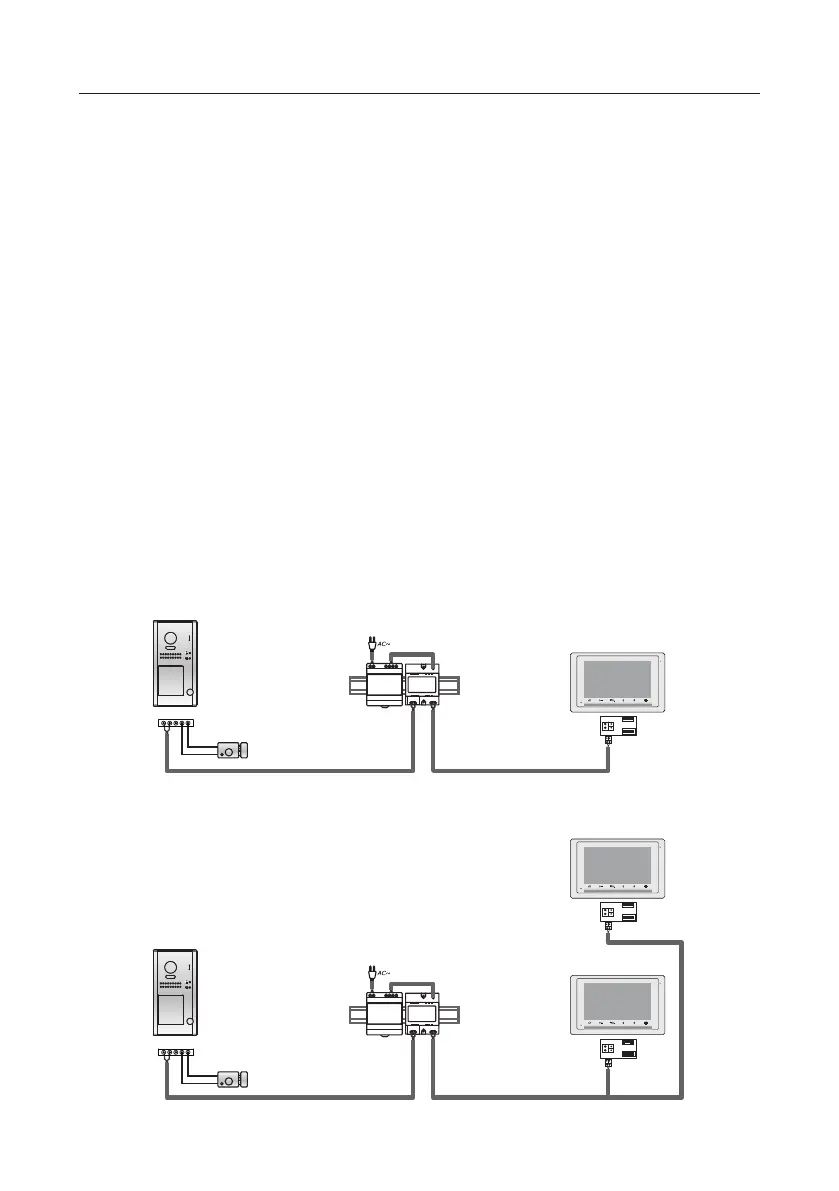

One Apartment Connection (IN-OUT wiring)
-
+
L1 L2 PL S+ S-
ID=0
Code=00, DIP6=off
+
-
DPSDR-30-24
Code=01, DIP6=on
ON DIP
SW+
L2L1
SW-
RING
GND
1 2 3 4 5 6
ON DIP
SW+
L2L1
SW-
RING
GND
-
+
L1 L2 PL S+ S-
ID=0
Code=00, DIP6=on
+
-
DPSDR-30-24
1 2 3 4 5 6
ON DIP
SW+
L2L1
SW-
RING
GND
1 2 3 4 5 6
Notes:
[1] DT607C/ID-S1 (One button).
The code address of indoor units start at 0-15 (switch all DOWN).
[2] DT607C/ID-S2 (Two buttons)
For the rst button (from bottom to top), the code address of indoor units start at 0-15 (switch
all DOWN).
For the second button, the code address of indoor units start at 16-31 (switch 5 ON).
[3] When use IN-OUT wiring without any distributor, Switch 6 ON for last monitor on the
line.
When use Star wiring with distributor (Home run), Switch 6 ON for every monitor.
