2easy DK1721 - Terminal Description

-6-
[11]
[10]
[9]
[1]
[3]
[4]
[8]
[7]
[6]
[5]
[12]
[13]
[2]

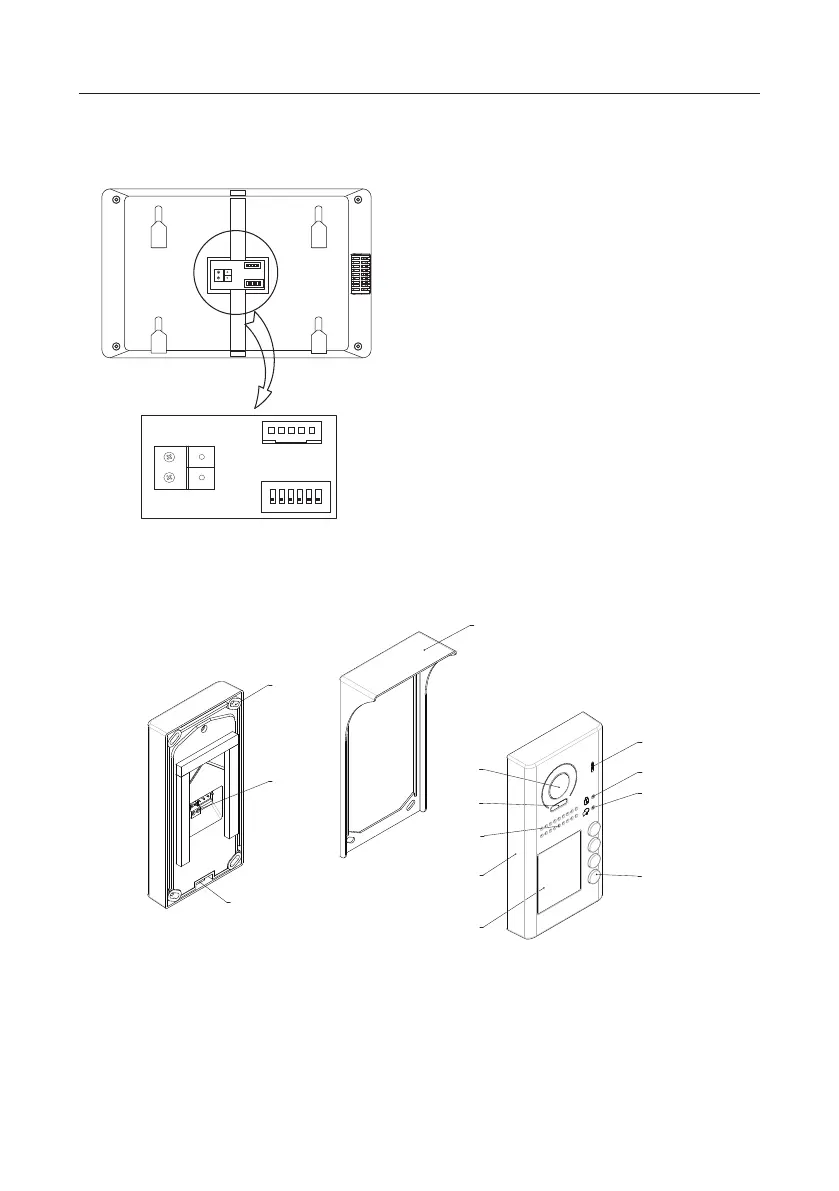

[1] Microphone
[2] UNLOCK indicator
[3] CALL indicator
[4] Call button
[5] Nameplate
[6] Front panel
[7] Speaker
[8] Night view LED
[9] Camera lens
[10] Rainy cover
[11] Mounting hook
[12] Connection port
[13] Screw hole
1 2 3 4 5 6
ON DIP
SW+
L2L1
SW-
RING
GND
1 2 3 4 5 6
ON
DIP
SW+
L2
L1
SW-
RING
GND
L1,L2:
Bus line terminal.
SW+,SW-:
Extra door bell call button
connection port.
RING,GND:
Extra buzzer connection
port.
DIP switches:
Total 6 bits can be
congured.
•
Bit1~Bit5:
UserCodesetting.
•
Bit6:
Set to
ON
if the monitor is at
the end of the line or works with
DBC4A1. Otherwise, set to
OFF
.
Terminal description
Front panel for outdoor station
