Module settings:
Refer to the Configuration Manual for details.

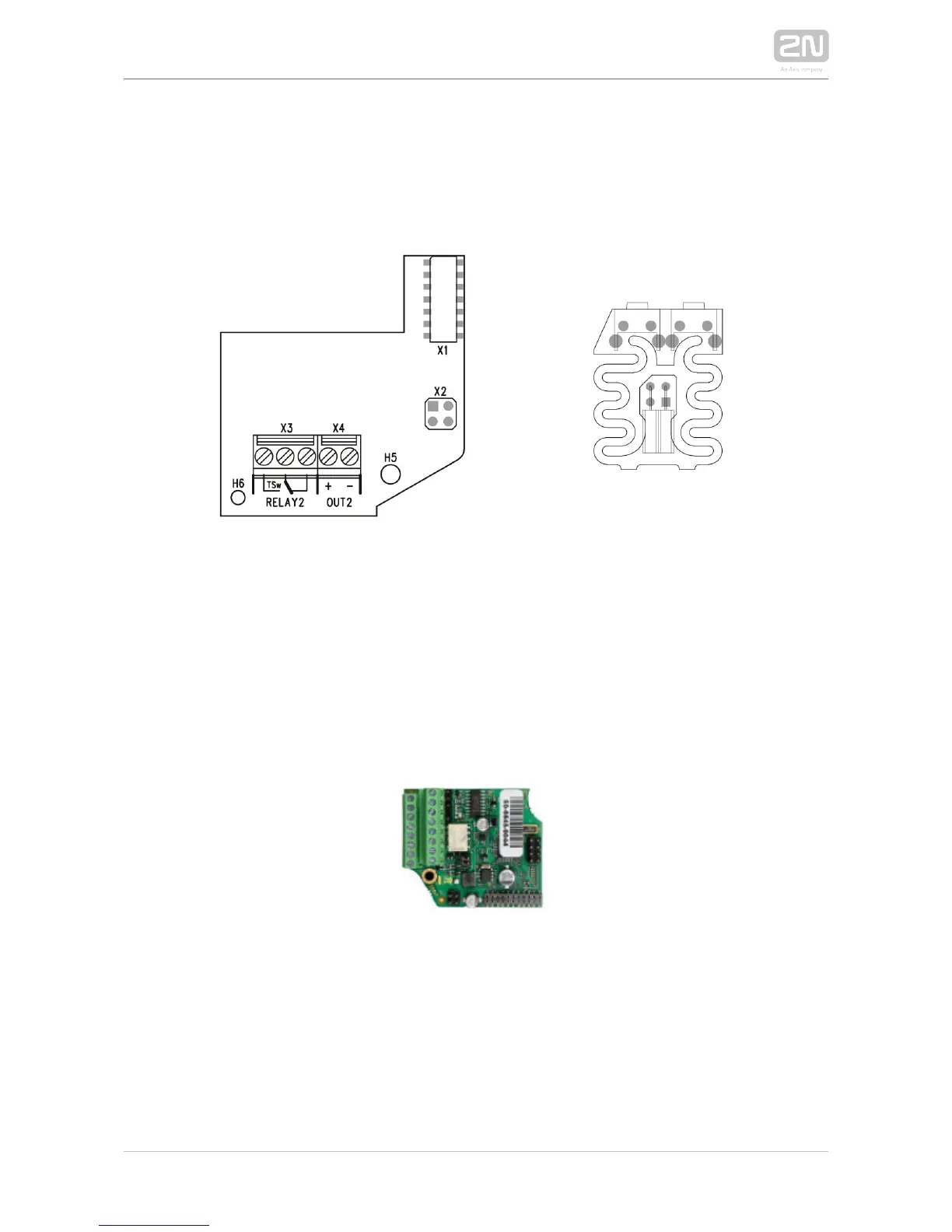

Connection:
Internal RFID Card Reader 125 kHz
The (Part No. 9151011) is used for reading RFID card Internal RFID Card Reader 125 kHz
Ids in the 125 kHz band. This module is intended for mounting into the 2N IP Force
®
model 9151102CR, 9151102R, 9151101CRP and 9151101RP. These models have an window,
which is necessary for antenna operation. If the Internal RFID Card Reader is installed,
it is not possible to install the Additional Switch.
Function:
The Internal RFID Card Reader adds two logical inputs, two additional 2N IP Force
®
switches and a tamper switch to the basic unit.2N IP Force
®
