Setting Terminal Parameters 55

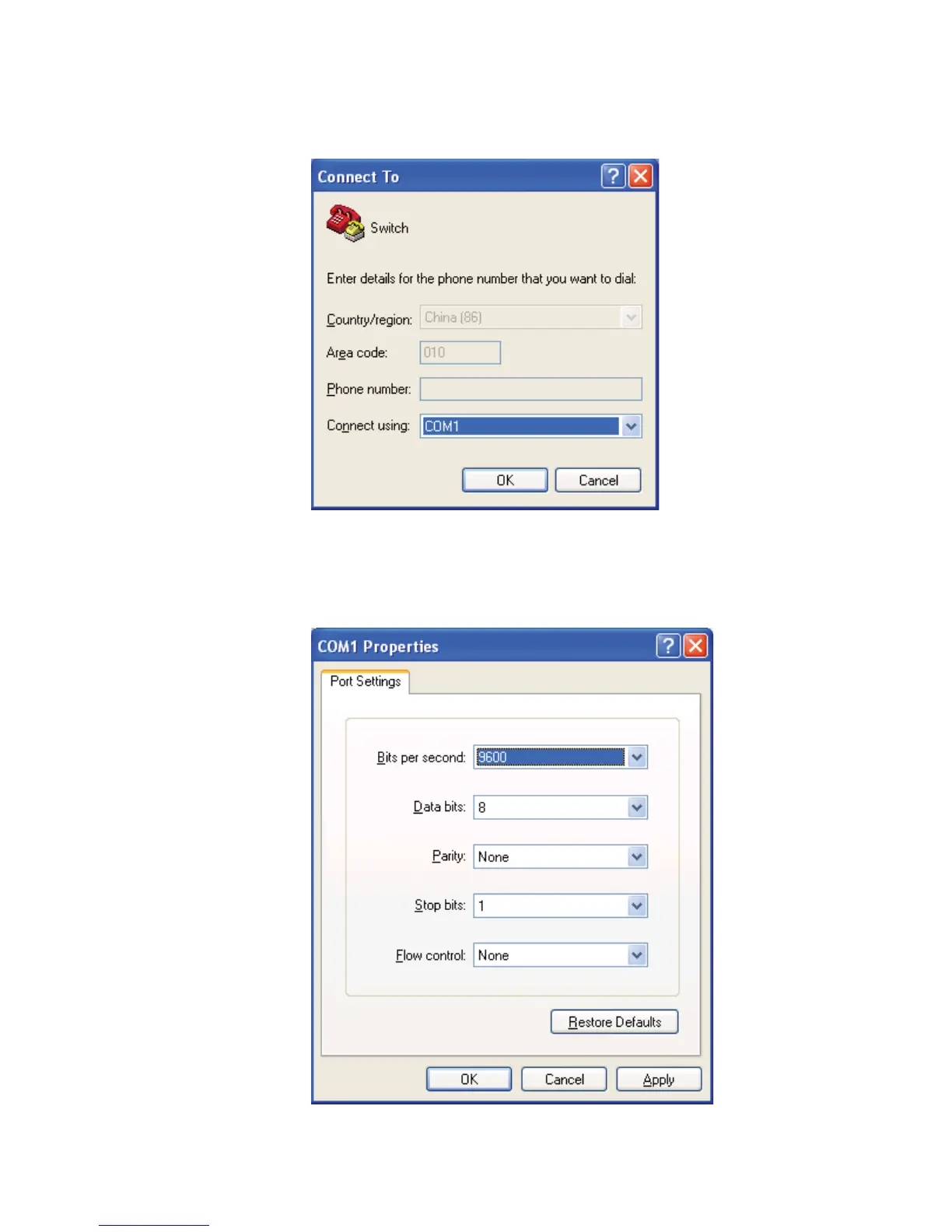

Figure 56 Set the serial port used by the HyperTerminal connection
3 Click OK after selecting a serial port and the following interface pops up. On the
interface, set Bits per second to 9600, Data bits to 8, Parity to None, Stop bits
to 1, and Flow control to None.
Figure 57 Set the serial port parameters
4 Click OK after setting the serial port parameters and the system enters the
following interface.
