66 CHAPTER 5: LOADING THE BOOT ROM AND HOST SOFTWARE

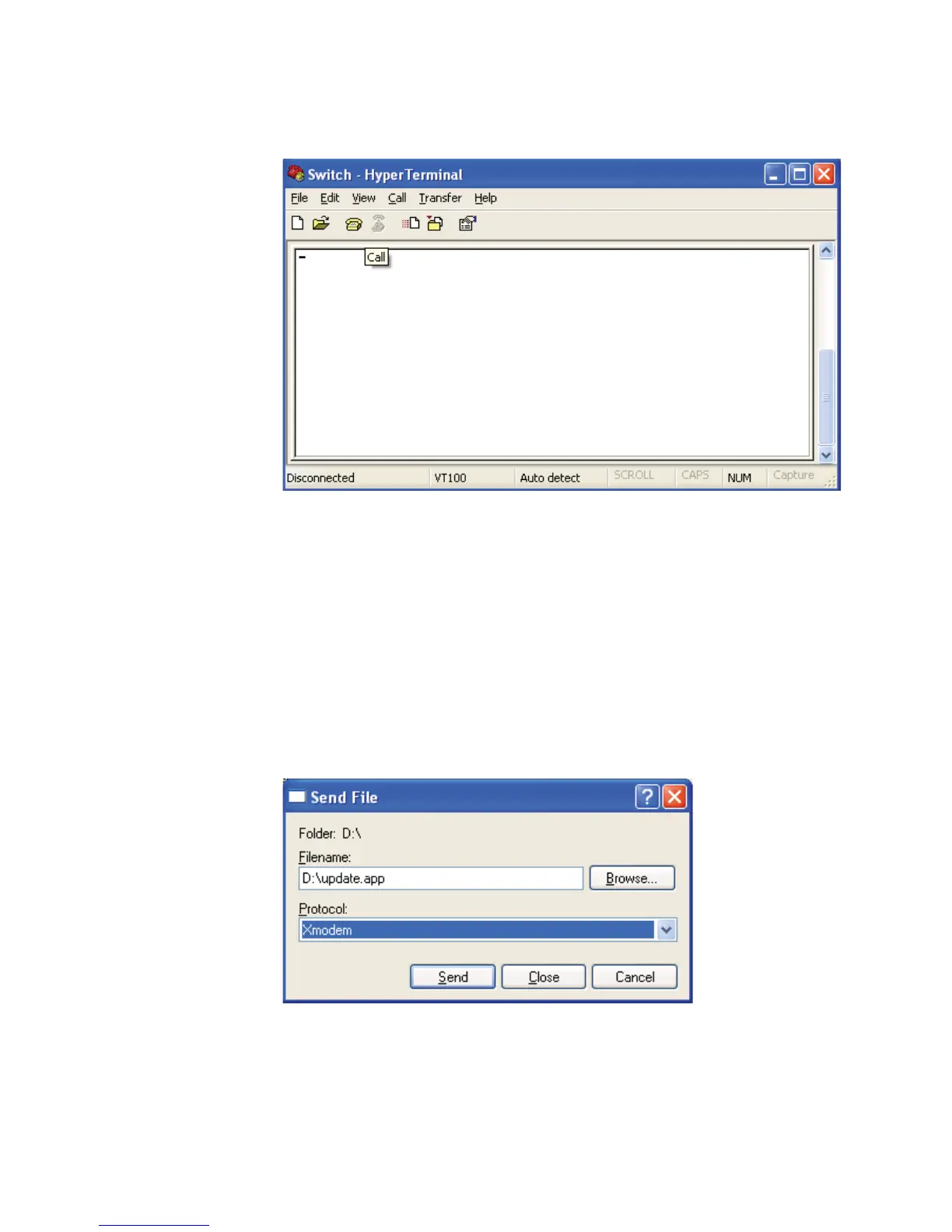

Figure 63 Reconnect the HyperTerminal
n
The new baud rate takes effect only after you disconnect and reconnect the
terminal emulation program.
6 Press Enter to start downloading the program. The system displays the following
information:
Now please start transfer file with XMODEM protocol.
If you want to exit, Press <Ctrl+X>.
Loading ...CCCCCCCCCC
7 Select Transfer > Send File in the HyperTerminal, and in the following popup
dialog box click Browse..., select the software you need to download, and set the
protocol to XModem.
Figure 64 Send file dialog box
8 Click Send. The system displays the following page.
